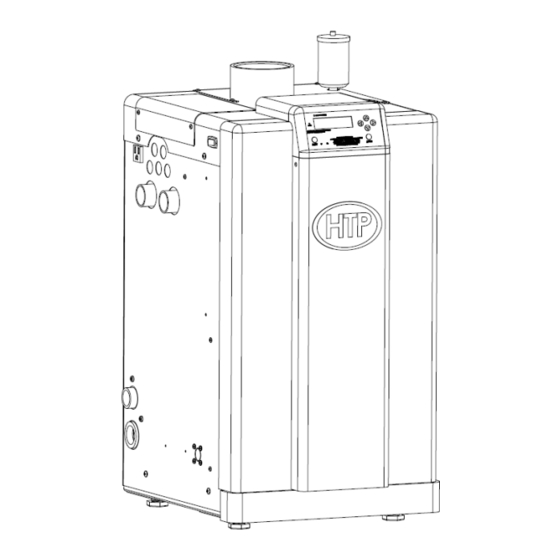

Elite
INSTALLATION
START-UP
MAINTENANCE
PARTS
Models*
EL-80 / 110 / 150 / 220 / 299 / 301 / 399
*A suffix of "LP" denotes propane gas
*A suffix of "N" denotes natural gas
Heat Exchanger Bears the ASME "H" Stamp
This manual must only be used by a qualified heating installer/service technician. Read all instructions in this manual before installing.
Perform steps in the order given. Failure to comply could result in substantial property damage, severe personal injury, or death.
NOTICE: HTP reserves the right to make product changes or updates without notice and will not be held liable for typographical errors
in literature.
NOTE TO CONSUMER: PLEASE KEEP ALL INSTRUCTIONS FOR FUTURE REFERENCE.
120 Braley Rd. P.O. Box 429
East Freetown, MA 02717-0429
www.htproducts.com
LP- 293 REV. 9.2.14
