HTP Elite EL-80 Installation Manual
  1. Manuals
  2. Brands
  3. HTP Manuals
  4. Heater
  5. EL-80
  6. Installation manual

HTP Elite EL-80 Installation Manual

Installation start-up maintenance parts elite series
Hide thumbs Also See for Elite EL-80:
Table of Contents

Advertisement

Quick Links

See also: Installation Start-up Maintenance Parts

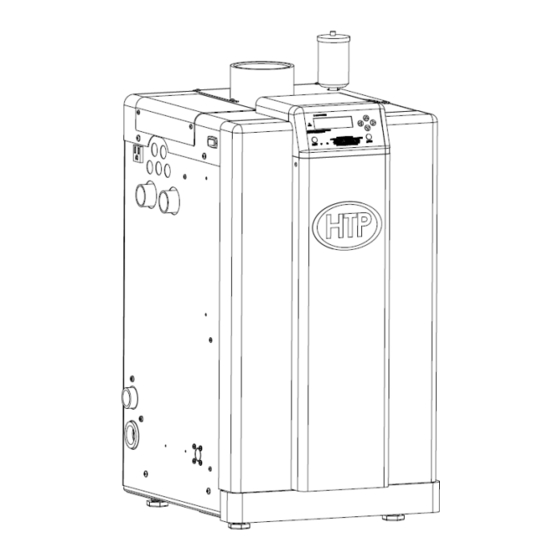

Elite
INSTALLATION
START-UP
MAINTENANCE
PARTS
Elite Models*
EL-80 / 110 / 150 / 220 / 299 / 399
*A suffix of "LP" denotes propane gas
*A suffix of "N" denotes natural gas
This manual must only be used by a qualified heating installer/service technician. Read all instructions in this
manual before installing. Perform steps in the order given. Failure to comply could result in substantial property
damage, severe personal injury, or death.
NOTICE: HTP reserves the right to make product changes or updates without notice and will not be held liable for
typographical errors in literature.
NOTE TO CONSUMER: PLEASE KEEP ALL INSTRUCTIONS FOR FUTURE REFERENCE.
120 Braley Rd. P.O. Box 429
East Freetown, MA 02717-0429
www.htproducts.com
LP- 293 REV. 3.29.12
