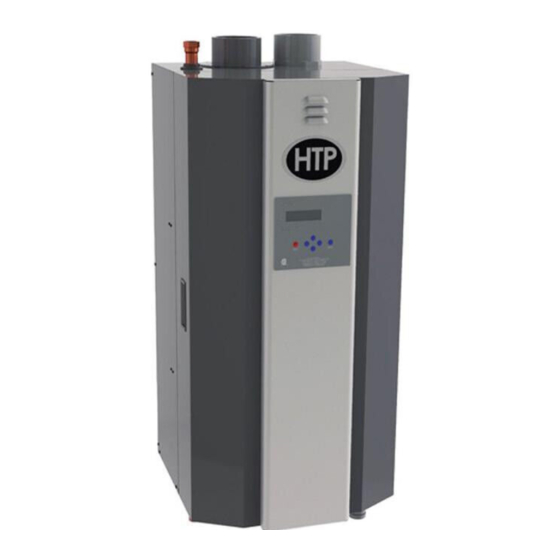

EFT-55 / 80 / 110 / 155 / 199 / 285 / 399*
Models with 5:1 Turndown Ratio
* "LP" Denotes Propane Gas Operation
"PU" Denotes Included Pump
This manual must only be used by a qualified installer / service technician. Read all instructions in this manual before installing. Perform
steps in the given order. Failure to do so could result in substantial property damage, severe personal injury, or death.
Improper installation, adjustment, alteration, service, or maintenance could void product warranty and cause property damage, severe
personal injury, or death.
California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, birth defects, or other
reproductive harm.
The manufacturer reserves the right to make product changes or updates without notice and will not be held liable for
typographical errors in literature.
NOTE TO CONSUMER: PLEASE KEEP ALL INSTRUCTIONS FOR FUTURE REFERENCE.
272 Duchaine Blvd.
Commercial Models
New Bedford, MA 02745
Elite FT
Residential and
Heat Exchanger Bears the ASME "H" Stamp
www.htproducts.com
LP-387 Rev. 011 Rel. 005 Date 1.3.19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Elite FT Series and is the answer not in the manual?

Questions and answers

Related Manuals for HTP Elite FT Series

Summary of Contents for HTP Elite FT Series

  • Page 1 Elite FT Residential and Commercial Models Installation Start-Up Maintenance Parts Warranty EFT-55 / 80 / 110 / 155 / 199 / 285 / 399* Models with 5:1 Turndown Ratio * “LP” Denotes Propane Gas Operation “PU” Denotes Included Pump Heat Exchanger Bears the ASME “H” Stamp This manual must only be used by a qualified installer / service technician.
