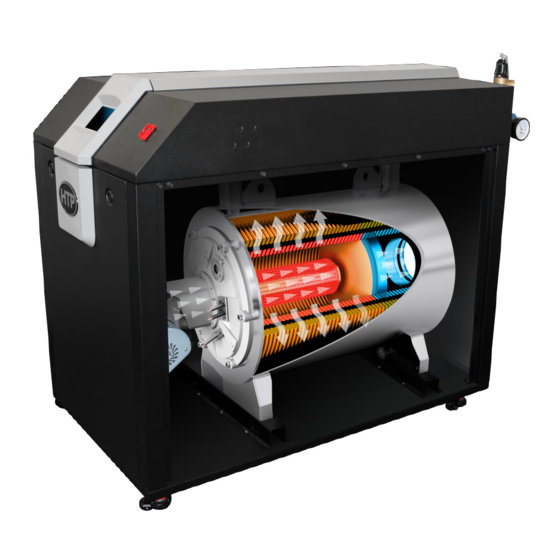

Breakdown Instructions for the Elite XL Boiler and VWH
Any breakdown and rebuild of this product shall be done by a
qualified service agency in accordance with these instructions,
the installation manual included with the appliance, all applicable
codes, and requirements of the authority having jurisdiction.
Failure to follow these instructions could result in substantial
property damage, severe personal injury, or death.
Qualified Service Agency - Read all instructions in this manual
before installing. Perform steps in the given order. Obey all local
codes. Obtain all applicable permits before installing this rack
system.
NOTE: Install all components in such a manner that does not
reduce the performance of any fire rated assembly.
User - These instructions are for use only by a qualified heating
installer / service technician.
FAILURE TO ADHERE TO THE GUIDELINES ON THIS PAGE
CAN RESULT IN SUBSTANTIAL PROPERTY DAMAGE, SEVERE
PERSONAL INJURY, OR DEATH.
Tools Required (Not Included):
Flat Head Screwdriver
Phillips Head Screwdriver
Rubber Mallet
3/8" Socket Driver
Preparing for Breakdown and Eventual Installation:
Before breaking down the appliance, ensure the intended installation
location meets appliance and building code requirements, including
safety and appliance clearance requirements. Failure to meet
appliance service clearance requirements could result in having to
remove the appliance from the installation location to perform basic
maintenance.
Carefully consider installation and read the entire appliance
installation manual before breaking down the appliance. Failure
to properly take factors such as appliance venting, piping,
condensate removal, and wiring into account before breaking
down the appliance could result in wasted time, money, and
possible property damage and personal injury.
In addition, the appliance and its components are very heavy. No less
than two people are required to safely break the appliance down,
and it is required to use hoisting equipment that can safely manage
the full weight of the appliance to lift and move components to the
chosen installation location.
ELX Boilers, VWHs, and their components are extremely heavy.
Take care when breaking down, hoisting, and rebuilding these
appliances and any components thereof. Failure to follow these
instructions could result in substantial property damage, including
damage to the appliance, severe personal injury, or death.
Installing the Rack System:
1.
Use a flat head screwdriver to remove all of the doors (front and
sides) from the appliance. See Figures 1 and 2.
272 Duchaine Blvd.
400 - 1000kBTUh Models
STOP! Follow these instructions or warranty will be void!
New Bedford, MA 02745

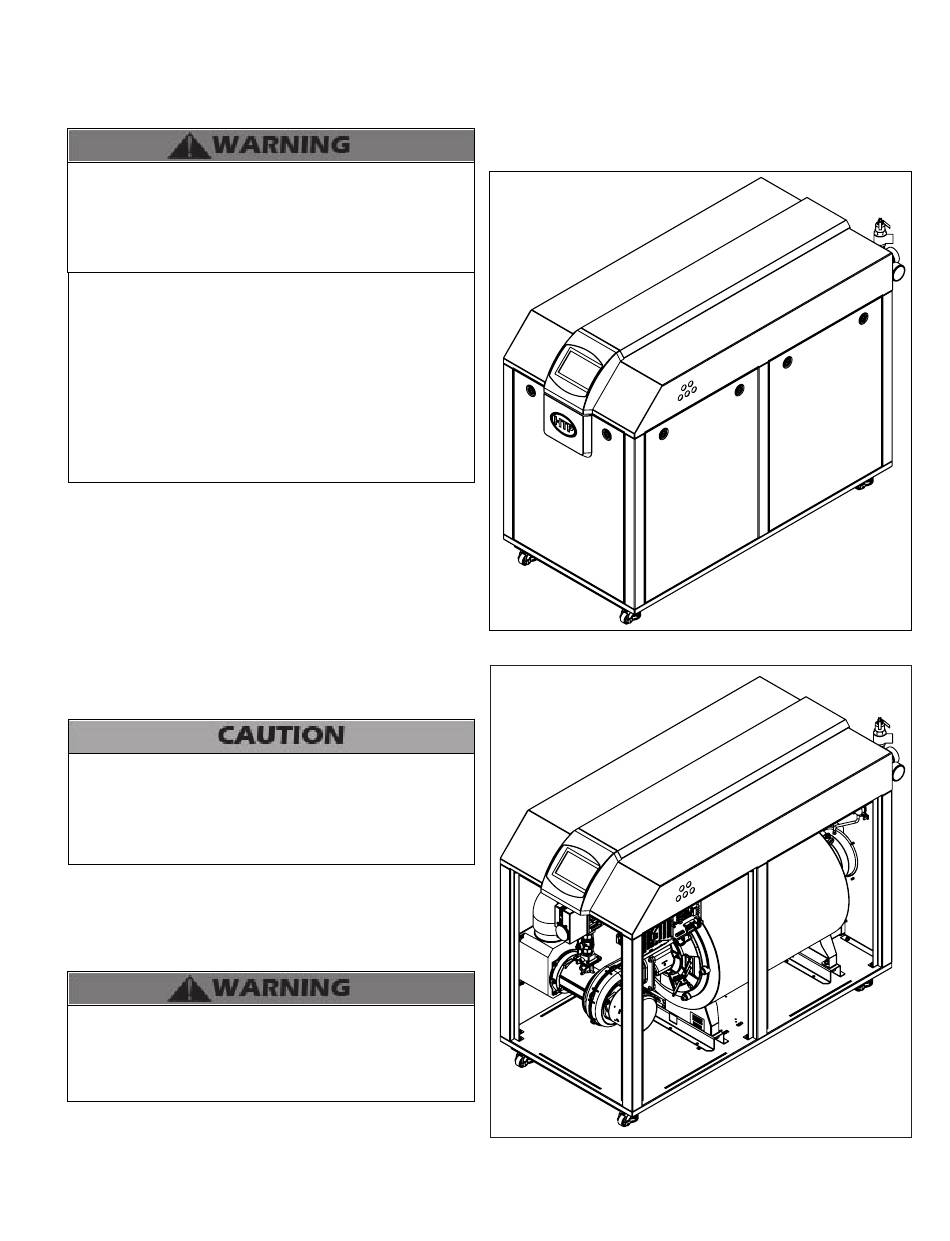

Figure 1 - Elite XL Appliance
Figure 2 - Elite XL Appliance with All Doors Removed
2.
Disconnect the cable from the display.
1(800) 323-9651
lp-752 Rev. 8.14.20

Advertisement

loading
Need help?

Need help?

Do you have a question about the Elite XL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HTP Elite XL

  • Page 1 Installing the Rack System: Use a flat head screwdriver to remove all of the doors (front and Figure 2 - Elite XL Appliance with All Doors Removed sides) from the appliance. See Figures 1 and 2. Disconnect the cable from the display.
  • Page 2 Remove the seven (7) screws on the back of the unit (in red) and Remove the flow switch from the water supply manifold. See loosen the six (6) screws on the bottom of the water and gas Figure 6. flanges (in blue). See Figure 3. NOTE: There are slots on the roof that allows the roof to be removed with these six (6) screws in place.
