Tools required:
• Cordless drill/driver (NON-impact)
• ¼" square drive adapter
• ¼" hex bit / nut driver
• Socket wrench, ¼" drive
These instructions must only be used by a qualified installer / service technician. Read all eight (8) steps of these instructions before
continuing. Perform steps in the given order. Failure to do so could result in property damage, severe personal injury, or death.
Improper installation, adjustment, alteration, service, or maintenance could void product warranty and cause property damage,
severe personal injury, or death.

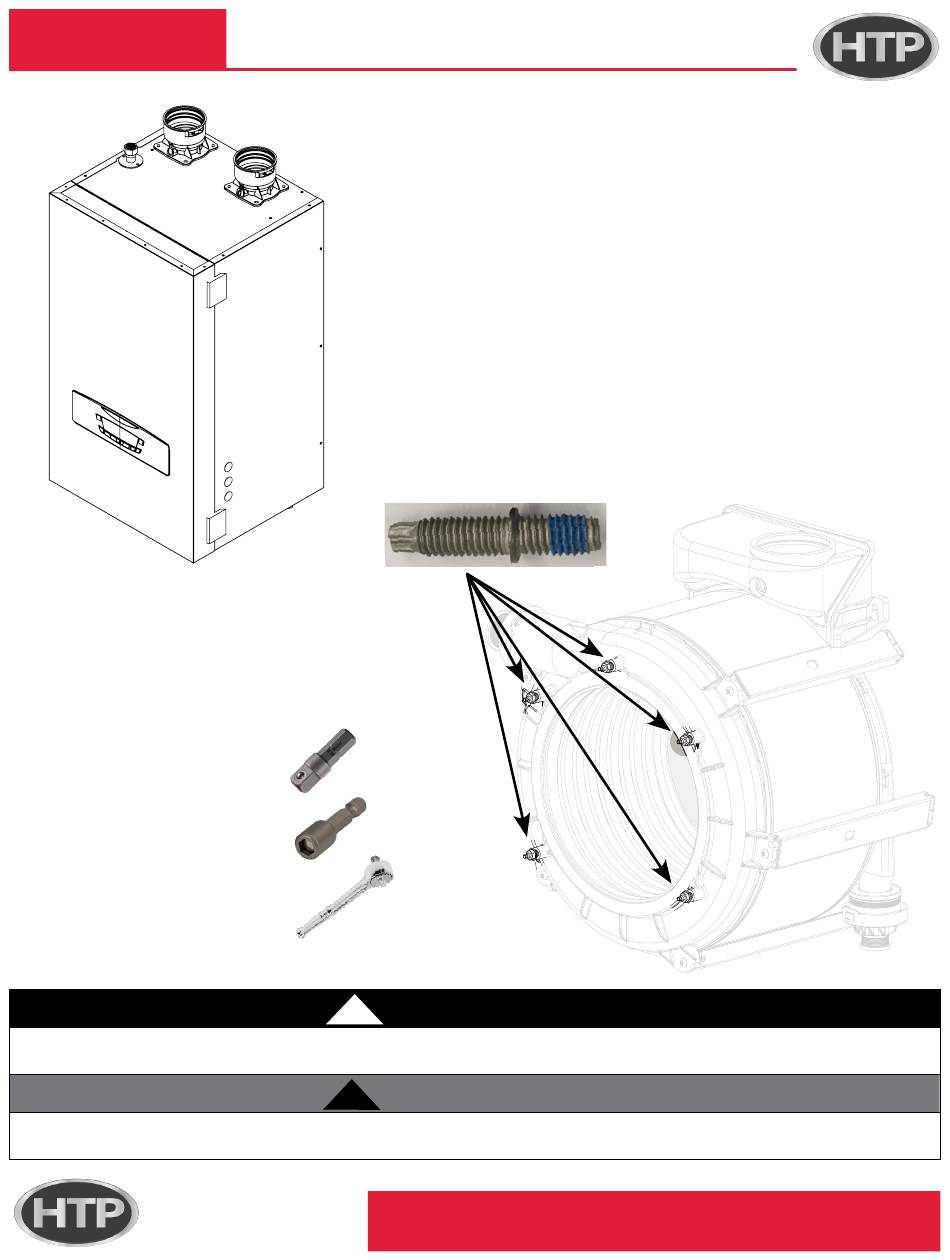

ELU HX Stud Replacement Instructions
For ELU boilers (models and S/Ns):
ե
ե
Part # 4270278 Kit Contents:
ե
ե
ե
DANGER
!
DANGER
!
WARNING
!
WARNING
!
CAUTION
!
CAUTION
!
ELU-150WBN
S/Ns: 3260035C8 (242830000265-242850000101)
ELU-199WBN
S/Ns: 3260036C8 (243240000051-250150000083)
Replacement studs (5)
Torx E50 socket, ¼" square drive (1)
Loctite 648, 10 mL (1)

Advertisement

loading
Need help?

Need help?

Do you have a question about the ELU Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HTP ELU Series

  • Page 1 ELU HX Stud Replacement Instructions For ELU boilers (models and S/Ns): ե ELU-150WBN S/Ns: 3260035C8 (242830000265-242850000101) ե ELU-199WBN S/Ns: 3260036C8 (243240000051-250150000083) Part # 4270278 Kit Contents: ե Replacement studs (5) ե Torx E50 socket, ¼” square drive (1) ե Loctite 648, 10 mL (1) Tools required: •...
  • Page 2 ELU HX Stud Replacement Instructions BEFORE YOU START — Disconnect the appliance from its power supply and close the gas shut-off valve to the unit STEP 1 — Access Burner Door Disconnect wiring: Spark cable Remove Junction Box Bracket Ground cables (¼”...
  • Page 3 DANGER ELU HX Stud Replacement Instructions WARNING Failure to tighten these and other fasteners to an appropriate or specified torque could result in property CAUTION damage, gas leakage, fire, explosion, serious personal injury, or death. STEP 5 — Install new studs Set the cordless drill/driver (do NOT use an Impact Driver) to the highest torque setting (but NOT to ‘DRILL’).
  • Page 4 When reattaching the Junction Box, make sure the plug has not come loose. To supplement these instructions, HTP has created a video to guide viewers through these steps: access the video from our ELU Recall Notice webpage: htproducts.com/safety-notice...
