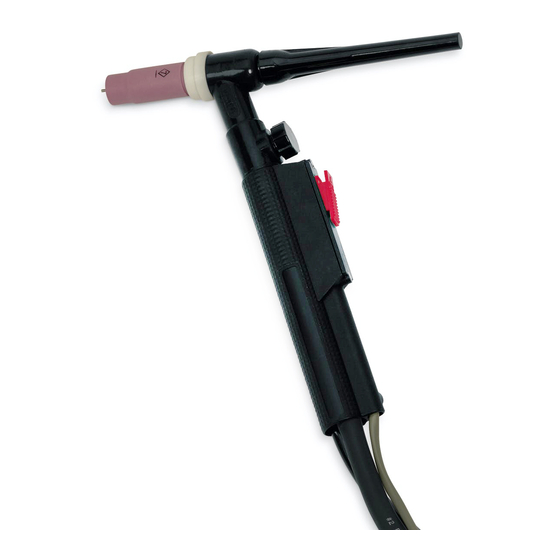

THE FLEX-TIG
ENABLES THE OPERATOR TO PERFORM HIGH
QUALITY TUNGSTEN-INERT GAS (T.I.G.) WELDING
ON STEEL, STAINLESS STEEL, CHROME-MOLY, COP-
PER AND CAST IRON.
THIS T.I.G. WELDING PACKAGE WILL NOT WELD ALUMINUM.
FORM WC5229
FLEX-TIG
OWNERS MANUAL
FOR TECH. SERVICE, CALL TOLL-FREE 1-800-232-9353
INSTALLATION
OPERATION
REPLACEMENT PARTS
Rev. 1/99
Advertisement
Table of Contents
Related Manuals for Snap-On FLEX-TIG
Summary of Contents for Snap-On FLEX-TIG
- Page 1 FLEX-TIG OWNERS MANUAL THE FLEX-TIG ENABLES THE OPERATOR TO PERFORM HIGH QUALITY TUNGSTEN-INERT GAS (T.I.G.) WELDING ON STEEL, STAINLESS STEEL, CHROME-MOLY, COP- PER AND CAST IRON. THIS T.I.G. WELDING PACKAGE WILL NOT WELD ALUMINUM. FOR TECH. SERVICE, CALL TOLL-FREE 1-800-232-9353...
-
Page 2: Table Of Contents
RIGHTS, AND YOU MAY HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE. TABLE OF CONTENTS INTRODUCTION ................1 CONTENTS ................... 1 SPECIFICATIONS ................. 2 INSTALLATION ................2 OPERATION ................. 4 SCHEMATIC DIAGRAM ..............4 PARTS BREAKDOWN..............5 Snap-on Tools Corporation Kenosha, WI 53141-1410... -
Page 3: Introduction
3/32" thru 1/4". 2- 3CB332 Collet Body - for 3/32" tungsten The FLEX-TIG consists of a 200 amp gas cooled torch with built-in 2- 3C6 Gas Cup - 3/8" orifice gas control valve, remote On/Off switch, 12 1/2 or 25 foot cable 6- 3C7 Gas Cup - 7/16"... -
Page 4: Specifications
TUNGSTEN PREPARATION 7. Insert tungsten electrode, prepped end first, thru torch NOTE head, Collet and center hole of Before using the FLEX-TIG the Collet body. tungsten electrode must be 8. Allow tungsten electrode to ex- prepped. tend pass the cup 1/8". - Page 5 100% VALVE ARGON LOCKING TORCH SWITCH SWITCH CORD TO WELDER CONTROL RECEPTACLE CONTROL RECEPTACLE (OUTPUT) POWER CABLE TO WORK (-) TERMINAL (WORK CABLE PLUGS INTO POSITIVE (+) TERMINAL) FIG. 3. FLEX-TIG TYPICAL INSTALLATION PROCEDURES Snap-on Tools Corporation Kenosha, WI 53141-1410...
-
Page 6: Operation
MIG 1 160 AMPS 175 AMPS DIRECTION OF TRAVEL 190 AMPS WARNING THE FLEX-TIG IS RATED UP TO 200 AMPS, @ A 100 % DUTY CYCLE. OPERATION ABOVE MIG VOLTAGE WORK SETTING #3 COULD RESULT IN PERMANENT DAMAGE TO THE TORCH HEAD AND CABLES. -
Page 7: Parts Breakdown
COLLET BODY, 1/16" SN-6191B PLUG, 14 PIN (MALE PINS) 3CB332 COLLET BODY, 3/32" SN-6204B CLAMP, AMPHENOL FITTING, GAS HOSE LOCKING ELECTRIC SWITCH (only) 412CN-200A POWER CABLE (only) - with fittings, 12 1/2' VALVE (with "o" rings) Snap-on Tools Corporation Kenosha, WI 53141-1410... - Page 8 NOTES: Snap-on Tools Corporation Kenosha, WI 53141-1410...
