Page 1: Operating Instructions

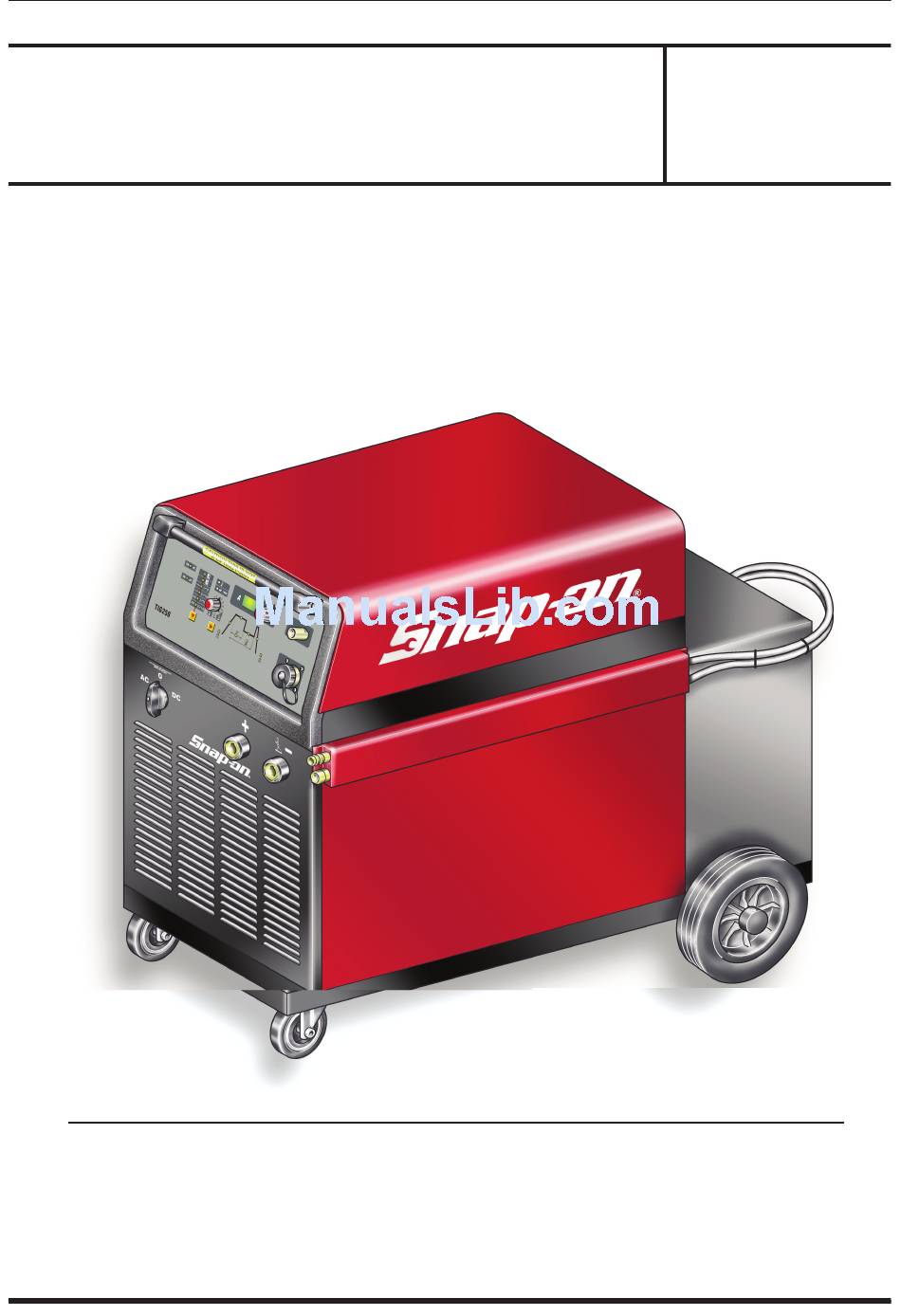

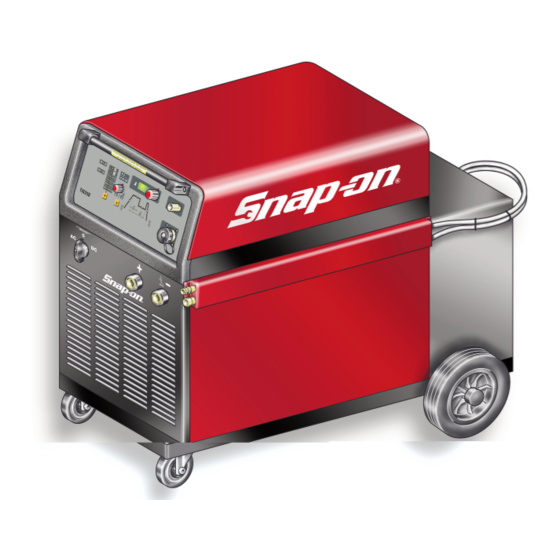

FOR MODELS: OPERATING INSTRUCTIONS TIG250 IMPORTANT OPERATING INSTRUCTIONS SAVE THESE INSTRUCTIONS 3.300.916/B... - Page 2 INSTRUCTION MANUAL FOR ARC WELDING MACHINE IMPORTANT: BEFORE STARTING THE EQUIPMENT, and must be used solely for professional purposes in an READ THE CONTENTS OF THIS MANUAL, WHICH MUST industrial environment. There may be potential difficul- BE STORED IN A PLACE FAMILIAR TO ALL USERS FOR ties in ensuring electromagnetic compatibility in non- THE ENTIRE OPERATIVE LIFE-SPAN OF THE MACHINE.
- Page 3 This position will give you less current absorption, reduced IN THIS POSITION, YOU CANNOT CONNECT THE electrode consumption and an ideal ratio between the width PEDAL CONTROL ACCESSORY TIG250FP. and depth of the bead. If you wish to increase penetration, turn the knob counter-clockwise;...
- Page 4 P - SELECTOR W - LED When this button is pressed, the LEDs light in suc- Slope down. This is the time in which the cession: current reaches the minimum value and the Warning: only those LEDs that refer to the chosen welding arc shuts off.
- Page 5 Connect the torch connector to the welding machine con- nector AE. 208 V 230 V Connect the torch gas hose fitting to the fitting AD on the machine, and the gas hose from the cylinder pressure regu- lator to the gas fitting AN on the rear panel. DESCRIPTION OF EQUIPMENT (REAR PANEL).
- Page 7 Part # Ref. Model Description TIG250 5801298 LEFT SIDE PANEL 5803803 SUPPORT 5803775 COVER 5610097 AUXILIARY TRANFORMER 5710307 TRANSDUCER 5602294 SNUBBER CIRCUIT 5802855 CENTER DEVIDER 5803876 GAS CYLINDER SUPPORT CKS251028 BELT 3175603 FUSE HOLDER 3175563 FUSE 3175370 SOCKET 3170235 CONNECTOR...
