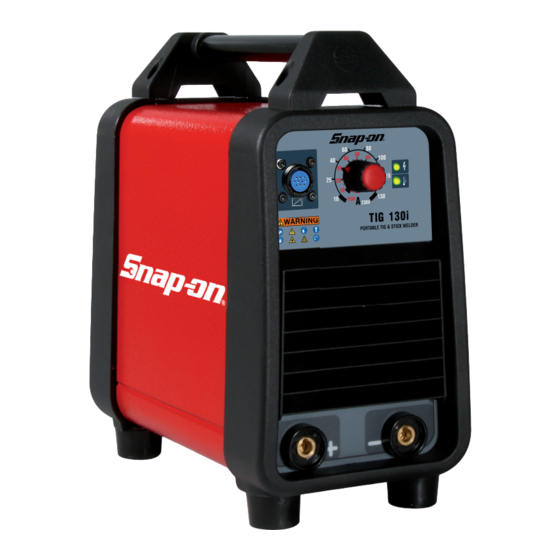

130 AMP DC TIG & STICK WELDER
INTRODUCTION
This welder TIG 130i is a constant current welder built using INVERTER technology,
designed to weld with stick electrodes and for TIG procedures, with scratch starting.
Will not TIG weld aluminum.
3.300.072
TIG 130i
Form WC 6001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TIG 130i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Snap-On TIG 130i

Summary of Contents for Snap-On TIG 130i

  • Page 1 130 AMP DC TIG & STICK WELDER TIG 130i INTRODUCTION This welder TIG 130i is a constant current welder built using INVERTER technology, designed to weld with stick electrodes and for TIG procedures, with scratch starting. Will not TIG weld aluminum.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Introduction ..............................Front Cover Table of Contents ................................2 Safety Information ............................... 3-4 Specifications ..................................5 Features ...................................6 Description of Equipment ..............................7 Assembling the Unit/Start-up Guide ........................... 8-9 Troubleshooting/Maintenance ............................10 Wiring Diagram ................................11 Replacement Parts ..............................12-13 Warranty/Service and Repair............................14...

  • Page 3: Safety Information

    SAFETY INFORMATION MUST READ INSTRUCTIONS BEFORE USE Arc Welding Read, understand and follow all safety messag- es and instructions in this manual. Safety mes- sages in this section of the manual contain a sig- Electric welding or plasma cutting causes ultra- nal word with a three-part message and, in some violet rays and weld spatter.

  • Page 4: Safety Information

    ITEMS REQUIRED FOR TIG WELDING WHICH ARE Electrical and Magnetic Fields NOT PROVIDED WITH THE TIG 130i. 1. Full cover welding helmet with proper colored lens (shade 9 to 11, depending on operator's preference). 2. Proper shielding gas and cylinder.

  • Page 5: Specifications

    SPECIFICATIONS GENERAL DESCRIPTIONS Rated supply voltage. The machine has an automatic supply volt- This welder is a constant current welder built using IN- age selector. VERTER technology, designed to weld with stick elec- 1~ 50/60Hz 50- or 60-Hz single-phase power supply trodes and for TIG procedures, with scratch starting.

  • Page 6: Features

    FEATURES • 130 Amp DC STICK/TIG Welder. • MMA “Stick Welding” with optional cable assembly. • Tig Weld most metals (will not weld aluminum). • Inverter technology allows the welder to be lightweight (15lbs.) and still able to perform most welding applications. •...

  • Page 7: Description Of Equipment

    DESCRIPTION OF EQUIPMENT CURRENT ADJUSTMENT. YELLOW LED (SEE PROTECTION DEVICES) POWER ON LED OUTPUT TERMINAL (-) OUTPUT TERMINAL (+) ON-OFF SWITCH MAINS CABLE TIG TORCH CONNECTOR...

  • Page 8: Assembling The Unit/Start-Up Guide

    ASSEMBLING THE UNIT / START-UP GUIDE INSTALLATION TIG WELDING Make sure that the supply voltage is 115 or 230 volt and make sure that the "green-yellow wire" of the power • This welding machine is suitable for welding the fol- supply cable is connected to the ground or “earth”...

  • Page 9: Assembling The Unit/Start-Up Guide

    ASSEMBLING THE UNIT / START-UP GUIDE cont'd GUIDE FOR SETTING TIG WELDER TUNGSTEN EXTENSION Material Polarity Amps THICKNESS STANDART PARTS Steel 24 Ga. (.024”) Chrome Moly 22 Ga. (.030”) General Stainless Steel 20 Ga. (.036”) Purpose Cast Iron 3 x DIA. 18 Ga.

  • Page 10: Troubleshooting/Maintenance

    TRUBLESHOTING / MAINTENANCE PROBABLE CAUSE ERROR SOLUTION The welding machine does not deliver Switch set to 0 Set it to 1. current. Completely inoperative. Main fuse burnt. Replace them. Plug not correctly inserted in the Insert the plug. power socket. the power plug is not wired properly.

  • Page 11: Wiring Diagram

    WIRING DIAGRAM...

  • Page 12: Replacement Parts

    REPLACEMENT PARTS – PARTS LIST...
  • Page 13 REPLACEMENT PARTS – PARTS LIST PART N. DESCRIPTION HANDLE SUPPORT CKSP3002 HANDLE CKST13002 HOUSING CKST13003 COVER CKSP3010 SWITCH CKSP3009 STRAIN RELIEF CKSB7018380 REAR PANEL CKST13007 FRAME CKST13008 POWER CORD CKST13009 CIRCUIT BOARD SUPPORT CKST13010 MOTOR WITH FAN CKS260453 CIRCUIT BOARD COVER CKST13012 POWER CIRCUIT CKST13013...

  • Page 14: Warranty/Service And Repair

    Snap-on Tools Company Limited Two (2) Year Warranty Snap-on Tools Company (the “Seller") warrants only to original purchasers who use the Equipment in their business that under normal use, care and service, the Equipment (except as otherwise provided herein) shall be free from defects in material and workmanship for two years from the date of original invoice.
