- Page 1 JN5148 High-Power USB Dongle (DR1131) Reference Manual JN-RM-2064 Revision 1.0 25-Jul-2012...
-
Page 2: Table Of Contents
JN5148 High-Power USB Dongle (DR1131) Reference Manual Contents About this Manual Organisation Conventions Acronyms and Abbreviations Related Documents 1 Introduction 1.1 Features 1.2 Reference Design 2 Hardware Overview 2.1 Dongle Layout 2.2 LPC1343 Device 2.3 JN5148 Device 2.4 High-Power Front-End 2.5 LNA Bypass... -
Page 3: About This Manual
JN5148 High-Power USB Dongle (DR1131) Reference Manual About this Manual This manual provides a detailed reference for NXP’s JN5148 High-Power USB Dongle (DR1131). The manual is part of the reference design JN-RD-6034. Organisation This manual consists of 4 chapters, as follows: ... -
Page 4: Introduction

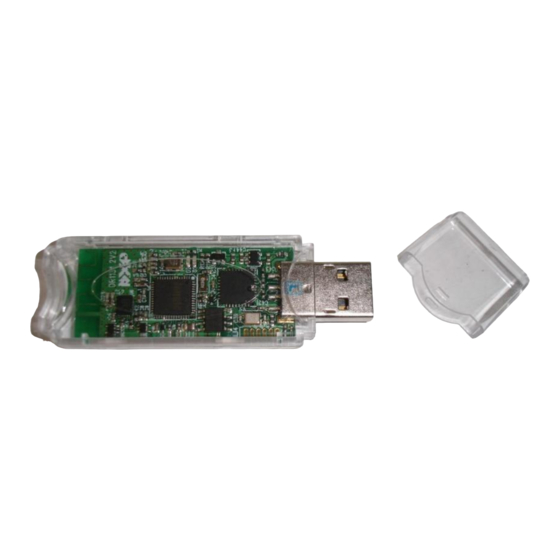

JN5148 High-Power USB Dongle (DR1131) Reference Manual 1 Introduction This manual provides a detailed reference for the JN5148 High-Power USB Dongle, of type DR1131, supplied with JenNet-IP EK040 evaluation kit. The dongle provides a platform for hardware development environment for wireless microcontroller applications with a USB interface. -
Page 5: Hardware Overview
PC and the JN5148 device. The LPC1343 will enumerate on the PC as two devices: 1. A mass storage device used to program the Flash device for the JN5148 2. A virtual COM port connected directly to UART0 on the JN5148 2.4 JN5148 Device... -
Page 6: High-Power Front-End
If the dongle is used in the presence of very strong signals, such as Wi-Fi, then there will be a performance improvement by switching off the Low-Noise Amplifier (LNA) in the front-end to stop the input stage of the JN5148 device from being overloaded with other signals. The LNA can be bypassed using DIO1 - driving DIO1 low will bypass the LNA. -
Page 7: Programming The Lpc1343 Device
JN5148 device. If you are producing new USB dongles or are developing new ways to communicate with the JN5148 device (i.e. new HID classes) then the mechanism for reprogramming the LPC1343 is as follows. 1. Insert the USB dongle into the PC with pins 2 and 6 of J4 connected together. -
Page 8: Programming The Jn5148 Device
PC and the LPC1343 device on the dongle. The replacement binary file must be a specially prepared file called FIRMWARE.BIN. When this file is copied onto the mass storage device, the LPC1343 device holds the JN5148 device in reset and then programs the SPI Flash device directly, releasing the reset once programming is complete. -
Page 9: Installing Device Driver For Usb Dongle
JN5148 High-Power USB Dongle (DR1131) Reference Manual 4.4 Installing Device Driver for USB Dongle 1. The first time you plug the dongle into a USB port of your PC, an ‘Installing driver’ message appears in the bottom-right corner of the screen. The... - Page 10 JN5148 High-Power USB Dongle (DR1131) Reference Manual 5. You can check that the device driver has installed correctly as if it has, the device NXP LPC1343 will appear in the Ports (COM & LPT) section and will appear as a USB mass storage device in the USB Controllers section.
- Page 11 JN5148 High-Power USB Dongle (DR1131) Reference Manual 5 Compliance Statements & Documentation 5.1 FCC Statements and Documentation This section contains the Federal Communication Commission (FCC) statements and documents. 5.1.1 High-Power Module Usage Limitation The high-power module variants are classified as 'mobile' devices pursuant with FCC §2.1091 and must not be used at a distance of less than 20 cm (8") from...
- Page 12 JN5148 High-Power USB Dongle (DR1131) Reference Manual 5.1.3 WARNING! FCC Radiation Exposure Statement: This portable equipment with its integrated antenna complies with FCC’s RF radiation exposure limits set forth for an uncontrolled environment. To maintain compliance follow the instructions below;...
- Page 13 JN5148 High-Power USB Dongle (DR1131) Reference Manual Revision History Version Date Description 25-July-2012 First release JN-RM-2064 v1.0 © NXP Laboratories UK 2012...
- Page 14 NXP Semiconductors does not accept any liability related to any default, damage, costs or problem which is based on any weakness or default in the customer’s applications or products, or the application or use by customer’s third party customer(s).
