Page 2 Congratulations on your recent purchase of a Thor Motor Coach Recreational Vehicle. We sincerely thank you for choosing and putting your faith in Thor Motor Coach. We want you to know that your satisfaction is of great importance to us. Our major goal is to provide you with a quality recreational vehicle at a reasonable price.
Page 3 This page intentionally left blank...
Page 4 I agree that the vehicle is to be used only for travel on improved roads. I also agree that the selling dealer is not an agent for Thor Motor Coach but is an independent company with no authority to make any representation or promise for Thor Motor Coach.
Page 5 FOLD HERE PLACE STAMP HERE THOR MOTOR COACH P.O. Box 1486 ELKHART, INDIANA 46516 FOLD HERE TAPE - PLEASE DO NOT STAPLE...
Page 6: Table Of Contents
Table of Contents Combination Rear Vision and Radio Introduction How to Use this Manual Rapid Camp Reporting Safety Defects Automatic Hydraulic Power Levelers Slide Outs Warranty Production Changes Garage Owner Responsibility Non-Slip Tread Major Equipment Suppliers Storage Cabinet TV Hook-up Planning and Preparation Read the Book Tie Down Tracks...
Page 7 Table of Contents Roof Mounted Air Conditioner Underbody Furnace Windows & Doors Thermostats Hydraulic Fluid Ceiling Vents Appliances Bath Fixtures Electrical Systems Shore Cord Bathtub Seal Batteries Bedspread & Draperies Power Converter Carpet Ground Fault Circuit Interrupter High Pressure Laminate Countertop 12V System Fuses Hardware Circuit Breakers...
Page 8: Introduction
Should a problem arise, your first step is to contact your selling Thor Motor Coach dealer who will be glad to handle your situation. This Owner’s Manual is not intended for use as a service manual, but rather as a guide to help you become familiar with your motorhome.
Page 9 You must include the dealer’s name as well as the model and serial number of your motorhome. The Thor Motor Coach serial number is located on the bottom of the federal sticker, which is located in the driver’s compartment area. Thank you for choosing our product.
Page 10: Warranty
Warranty...
Page 11 WHAT THE PERIOD OF COVERAGE IS: This Limited Warranty provided by Thor Motor Coach, Inc.® (“Warrantor”) covers those components, assemblies and systems of your new motorhome not excluded under the section “What is Not Covered”, when sold by an authorized dealer.
Page 12 Warranty Warrantor received a reasonable opportunity to cure the defect(s), your sole and exclusive remedy shall be limited to Warrantor paying you the cost of having an independent third party perform repairs to the defect(s) or diminution in value damages if defect(s) are incurable. Warrantor may use new and/or remanufactured parts and/or components of substantially equal quality to complete any repair.
Page 13 Warranty your selling dealership or Warrantor directly or review the warranty packet inside the Motorhome. EVENTS DISCHARGING WARRANTOR FROM OBLIGATION UNDER WARRANTY: Misuse or neglect, accidents, unauthorized alteration, failure to provide reasonable and necessary maintenance (see Owner’s Manual), damage caused by off road use, collision, fire, theft, vandalism, explosions, overloading in excess of rated capacities, and odometer tampering shall discharge Warrantor from any express or implied warranty obligation to repair any resulting defect.
Page 14: Production Changes
CHANGES Vehicles previously built and/or sold by Thor Motor Coach. As the proud owner of a Thor Motor Coach, you want to trust that your unit will continue OWNER to perform at its peak. To ensure this Thor Motor Coach has provided you this checklist RESPONSIBILITY of the responsibilities of the Thor Motor Coach owner.
Page 15 Thor Motor Coach dealer at their service center or facility only. If you are unable to bring your unit in for repairs, Thor Motor Coach is not responsible for the cost of the actual service call charged to come out to your unit.
Page 16: Major Equipment Suppliers
Warranty SUPPLIERS PROVIDING SEPARATE WARRANTIES The following list of components has been compiled to help you know which products on your motorhome may have their own warranties. If you have any of these components on your motorhome, be sure to check the literature supplied by the manufacturer to see if they require that you register your purchase with them to validate their warranty.
Page 17 Warranty...
Page 18: Planning And Preparation
Your motorhome is considerably larger and heavier than your car, therefore certain precautions should be exercised. A CDL license may not be required to operate your motorhome, but Thor Motor Coach recommends you attend a CDL class to better understand the motorhomes driving and handling characteristics.
Page 19: Opening Checklist
Planning and Preparation Wheel Lugs Must be tightened to the specifications in the Chassis Manufacturer’s Owner’s Manual. Windshield Should be clean, wiper blades inspected, and windshield washer reservoir filled. Lights Should be tested, including brake lights, warning flashers, clearance lights, tail lights, turn signals and headlights.
Page 20 Planning and Preparation • Changing the wiper blades on your motorhome is similar to your car. Remove the screw, take off the old blade, and replace with a similar style and length blade. Lubricating pivot points with thin lubricating oil is also recommended. •...
Page 21: Weights
Federal Weight Label WEIGHT SPECIFICATIONS The Thor Motor Coach Motorhome yellow label concisely states the occupant and cargo carrying capacity of your motorhome ( per the requirements of 49 CFR part 571.120 as issued by the National Highway Traffic Safety Administration - NHTSA).
Page 22: Weighing Your Motorhome
Planning and Preparation The total weight of passengers, cargo, trailer tongue weight, and water should never exceed the value shown on the label. A typical example of this label is shown below for reference purposes only. The numbers shown on this page may not be applicable to your vehicle. Please reference the Yellow label affixed directly to the door of your motorhome for your actual Occupant and Cargo Carrying Capacity: MOTOR HOME OCCUPANT AND CARGO CARRYING CAPACITY...
Page 23 Association. Used with permission. ( http:// www.rma.org/tire_safety/ ) For improved accuracy, Thor Motor Coach recommends using a segmented 4-pad scale, when possible, to determine individual wheel weights. The corner weights should not exceed half of the respective Gross Axle Weight Rating (GAWR) or the maximum load rating for the tire or set of dual tires at the rear, whichever is less.
Page 24 Planning and Preparation The following is an explanation of commonly used weight abbreviations: • Gross Vehicle Weight Rating (GVWR) is the maximum permissible weight of this motorhome. • Unloaded Vehicle Weight (UVW) is the weight of this motorhome as manufactured at the factory with full fuel, engine oil, and coolants. •...
Page 26: Identification And Safety
Identification and Safety LAWS OF THE It is advisable to contact the Department of Motor Vehicles in each respective state, for up-to-date information regarding operation and licensing requirements for your ROAD particular motorhome. The state of California currently requires operators of motorhomes over 40 feet in length to obtain a non-commercial class B license.
Page 27: Fire Safety
Identification and Safety FIRE SAFETY ANY MOTORIZED VEHICLE OR ANY MOTORIZED EQUIPMENT POWERED WITH FLAMMABLE LIQUID CAN CAUSE FIRE, EXPLOSION, OR ASPHYXIATION IF STORED OR TRANSPORTED WITHIN THE RECREATIONAL VEHICLE. TO REDUCE THE RISK OF FIRE, EXPLOSION, OR ASPHYSIATION: 1. Do not ride in the vehicle storage area while vehicles are present. 2.
Page 28: Fire Extinguisher
Identification and Safety Portable fuel burning equipment including wood or charcoal burning grills and stoves should not be used inside the motorhome because they may cause fire or asphyxiation. Underwriter Laboratories classify fires into three types: Class A: Fires in wood, paper, fabric, rubber, and certain plastics Class B: Flammable liquids such as grease, cooking oils, gasoline, or kerosene Class C: Electrical fires started from live electrical wires, from short circuits, motors, or switches...
Page 29 Identification and Safety The motorhome should never be operated or occupied unless the smoke detector is present and functioning properly. The smoke alarm will only indicate the presence of smoke that reaches the sensor. The smoke alarm is not designed to sense gas, heat or flames. The CO alarm is not designed to detect fire or any other gas.
Page 30: Carbon Monoxide Safety Precautions
Identification and Safety This unit has been designed to be as maintenance free as possible, but there are a Regular Maintenance few simple things you must do to keep it working properly. Use only the replacement batteries listed below. The unit may not operate properly with other batteries. Never use rechargeable batteries since they may not provide a constant charge.
Page 31: Lp Safety
Identification and Safety LP SAFETY IF YOU SMELL PROPANE 1. Extinguish any open flames, pilot lights, and all smoking materials. 2. Do not touch electrical switches. 3. Shut off the propane supply at the container valve(s) or propane supply connection. 4.
Page 32: Propane Gas Detector
Identification and Safety PROPANE GAS The propane gas detector is powered at all times when the coach battery disconnect switch is in the ON position. When power is supplied to the detector the green indicator DETECTOR light will illuminate. After 60 seconds, the detector will begin monitoring the air in the motorhome for combustible vapors.
Page 33 Identification and Safety Use the following steps when checking the system for leaks: Open all the windows and vents. Open the gas tank service valve. Use non-ammoniate, non-chlorinated soap solution, or an approved leak detection solution on all line connections. Ammoniate soap solutions can cause cracking on copper or brass lines and fittings.
Page 34: Chemical Sensitivity
Identification and Safety See your Thor Motor Coach Dealer or a qualified Propane Service Center should service be required. If they are not familiar with this product, have them call the detector manufacturer for assistance. If service is not available in your area, call MTI Industries.
Page 35: Seat Belts
Child Restraints If your child requires a child safety restraint system (seat), Thor Motor Coach recommends installing the child safety seat in the forward facing booth dinette position. For rear-facing child seats and infant carriers, the dinette table can be placed in the “down”...
Page 36: Egress Window
Identification and Safety Note: Check your local and state or provincial laws for specific requirements regarding the safety of children in your vehicle. Note: Always follow the instructions and warnings that come with any infant or child restraint you might use. If the child is the proper size, restrain the child in a safety seat.
Page 37 Damage to the motorhome, towed vehicle or towing device will result. Note: Thor Motor Coach accepts no responsibility for damage to the chassis and other components resulting from towing loads greater than its designated class specifications. Also consider the gross combined weight rating of the motorhome before towing a trailer or vehicle.
Page 38: Chassis
Chassis Note: All issues regarding the chassis warranty, parts and service should be directed to the chassis manufacturer. The following section is for reference only. For detailed information regarding product information and proper maintenance of the chassis, refer to the chassis manufactures owner’s manual.
Page 39: Fueling The Motorhome
Chassis Engine Access IF THE ENGINE COVER IS NOT SEATED CORRECTLY, EXHAUST GASES MAY LEAK INTO THE Motorhome, CREATING A DANGEROUS AND POTENTIALLY LETHAL SITUATION. The motorhome engine can be accessed for service from inside the motorhome. The engine cover between the driver and passenger seats can be removed. When reinstalling the engine cover, make sure that it is seated correctly without obstruction from carpet, floor mats, etc.
Page 40 Chassis Exterior Checks • Security of any auxiliary equipment such as TV and awning, etc. • Windshield wiper blades • Generator compartment • Fresh and waste water connections/drains and supplies such as high pressure hose • Propane compartment/tank • Undercarriage Checks Brakes, including lines, pads/shoes, seals •...
Page 42: On The Road Safety
On the Road Safety FUEL SYSTEM Use only recommended fuel as specified by the chassis manufacturer. Do not overfill the fuel tank, but allow for expansion of fuel caused by rising temperatures by stopping the filling process when the pump automatically shuts off.
Page 43: Changing Tires
On the Road Safety your particular motorhome and make sure that you are aware of it when driving under bridges or underpasses. When parking parallel to a curb, be sure to allow for poles or obstructions as the front and rear portions of the motorhome will swing wider than an automobile. Remember that your motorhome is larger than your automobile and will require more space.
Page 44 Store and secure all of these items in a proper place. Note: Thor Motor Coach does not provide jacks with our motorhomes. Any changing of tires should be performed by a professional mechanic with proper equipment.
Page 46: Controls And Operations
Controls and Operations AUTOMOTIVE DASH Driving a motorhome is similar to driving a car. You have an ignition switch, gearshift controls, turn signals, and dash components. As you sit in the driver’s seat the center of the cluster includes tachometer, speedometer, fuel gauge, oil gauge, temperature gauge, and amp meter.
Page 47 Controls and Operations FOG LIGHTS/DRIVING LIGHTS: Are offered to provide more visibility. Fog lights will function with low beams, Driving lights will function with high beams. SIDE DOCK LIGHT: This switch enables the side lights to turn on when the vehicle is in reverse.
Page 48: Steering Wheel Adjustment
Controls and Operations STEERING WHEEL The steering wheel can be moved to allow additional room for entering and exiting the driver’s seat, as well as for selected driving positions. To tilt the steering wheel, ADJUSTMENT pull the adjustment lever toward you and move the steering wheel to where you want it.
Page 49: Stand Alone Rear Vision System
Controls and Operations REAR VISION MAKE SURE TO CHECK THE MIRRORS WHEN DRIVING AND BACKING, FOR A MORE COMPLETE FIELD OF SYSTEM VISION. The camera is equipped with a wide angle lens that can initially present an image that may be deceiving. Make sure to practice backing in a safe place, using the monitor to become accustomed to it’s operation.
Page 50: Stand Alone Dash Radio
To increase the volume, rotate clockwise. To decrease the volume, rotate counter-clockwise. 2. Remote Sensor - Thor Motor Coach does not provide remote controls for this radio. 3. Power On/Off - Press the power button to turn the unit on/off.
Page 51 Controls and Operations Press and hold for more than three seconds to automatically select eighteen strong stations for FM or twelve for AM and store them in all bands. 16. BAND Press to change between three FM bands and two AM bands. 17.
Page 52 Controls and Operations After pressing Source/Off, rotate then press to change the source. 4 SOURCE/OFF button - Press to turn on the power; select the source (Radio/CD/ USB/Pandora® via USB/AUX). Press repeatedly to change to another source. Press and hold for 1 second to turn off the power. Press and hold for more than 2 seconds to turn off the power and the display disappears.
Page 53 Controls and Operations Jensen MSR3012012 1. Power On/Off Press to turn the unit off. Press any button on the front panel to turn the unit on. 2a/2b. Volume Control To increase the volume, press the VOLUME + button. To decrease the volume, press the VOLUME - button. 3.
Page 54 Controls and Operations 16. BAND/SEARCH Press to change between three FM bands and two AM bands. 17. Mute Press to mute the audio output. Press again to restore the audio output to the previous level. 18. Reset Use a ball point pin or thin metal object to press the RESET button (18). The reset button should be activated for the following reasons: •...
Page 55: Combination Rear Vision And Radio
Controls and Operations DASH RADIO\ REAR VISION SYSTEM COMBO Pioneer...
Page 56 10. Day/Night button - Press to toggle between dimming levels for day or nightime viewing. 11. Remote Sensor - Thor Motor Coach does not provide remote controls for this radio. 12. Auxiliary Input - Use to connect an external audio source.
Page 57: Rapid Camp
Controls and Operations The Rapid Camp feature allows you to operate components such as lights, leveling RAPID CAMP - systems, slides and generator via remote control. WHERE EQUIPPED Note: The features available to be operated by remote will vary depending on the options and components available on your coach.
Page 58 Controls and Operations Awning: To extend or retract the awning, press and hold the arrow buttons. The left pointing arrow button will extend the awning. The right pointing arrow button will retract the awning. Be sure to hold the button until the awning is fully extended or retracted .
Page 59: Automatic Hydraulic Power Levelers
Controls and Operations AUTOMATIC FAILURE TO ACT IN ACCORDANCE WITH THE FOLLOWING MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH. HYDRAULIC Read the entire operators manual and all precautions POWER LEVELERS prior to operating this equipment. Do not use the jacks to change the tires. The system is designed as a leveling and stabilizing system and is not meant to lift the motorhome off the ground.
Page 60 Controls and Operations Turn on power Press auto-level touch pad Retracting the jacks...
Page 61 Controls and Operations Resetting the Zero Point 1. Turn the system on by pressing the “ON/OFF” button (1). The “ON/OFF” button will illuminate. 2.Press the “MAN” button (2) and hold for 2-3 seconds. The indicator light will illuminate. 3. Manually level the coach using a carpenter’e level ON THE FLOOR of the coach. Level front to rear and then left to right.
Page 62 Controls and Operations device. 4. To retract your jack(s) run the drill in the counter-clockwise direction. 5. To extend your jack(s), run the drill in the clockwise direction. 6. When manual override is complete, return the cartridge valve(s) to the normal positions.
Page 63 Controls and Operations Hydraulic Pump Function Wiring...
Page 64 Controls and Operations...
Page 65: Slide Outs
Controls and Operations SLIDE OUTS Refer to the manufacturer’s operation’s manual for complete details and troubleshooting guide. Keep people and obstructions clear of room when operating. Operating the room with any room locking devices in CAUTION place can cause personal injury and vehicle damage. It is the operator’s responsibility to ensure that all room locking devices (if equipped) are disengaged before operating the room.
Page 66 Controls and Operations 1. Completely retract the slide out. Timing the Schwintek 2. Allow the motors to amp out and hold the switch for an additional 3-5 seconds. slide out system 3. Extend the slide out anywhere from 2-4 inches (enough to break the seal) and stop.
Page 67 Controls and Operations Electronic Manual 1. Locate the circuit board. 2. Press the “mode button” six times quickly, then press a seventh time and hold for Override approximately five seconds. 3. The red and green LED lights will begin to flash, confirming the override mode. 4.
Page 68 Controls and Operations Keep people and obstructions clear of room when operating. Note: Make sure that there is adequate clearance to fully extend the room. Apply the parking brake Make sure ignition is in OFF position. To extend the room, press and hold the ROOM CONTROL SWITCH in the “OUT”...
Page 69: Garage
TIE DOWNS On the garage floor Thor Motor Coach provides vehicle tie downs. These are helpful for keeping your vehicles secure in transit. Please make sure that all your vehicles and accessories are secure before you put the vehicle into motion.
Page 70: Windows
Controls and Operations WINDOWS DO NOT UTILIZE THIS RV UNLESS FULLY SET UP BECAUSE A SECONDARY MEANS OF ESCAPE IS NOT AVAILABLE. FAILURE TO COMPLY COULD RESULT IN SERIOUS INJURY OR DEATH. TO AVOID EXHAUST GAS ENTRY INTO THE Motorhome, KEEP WINDOWS CLOSED WHEN THE CHASSIS OR GENERATOR ENGINES ARE RUNNING.
Page 71: Storage Above Cockpit
Controls and Operations Some models are equipped with storage areas above the dash for the VCR, DVD, STORAGE ABOVE Global Positioning System, Video Center, CD Changer and Digital Broadcast System. COCKPIT The TV antenna hookup with power booster switch is located here. The light is illuminated when the booster is on.
Page 72: Furniture
Controls and Operations SOFAS DO NOT OCCUPY BEDS OR ANY OTHER SEATS THAT ARE NOT EQUIPPED WITH SAFETY SEAT BELTS WHILE THE Motorhome IS IN MOTION. DO NOT USE A SEAT BELT ON MORE THAN ONE PERSON. The sleeping accommodations in this motorhome are designed for occupancy only while the motorhome is parked.
Page 73: Dinette
Controls and Operations DINETTE Booth The dinette will seat four people. Storage and/or various systems components can be accessed from above by removing the seat cushions and lifting the seat supports. Free Standing Since the free standing dinette chairs are not secured to the floor, and not equipped with seat belts, they should not be occupied while the motorhome is in motion.
Page 74: Bedroom Door & Latch
Some Thor Motor Coach bedroom doors slide conveniently out of the way beside the BEDROOM DOOR & wall. Thor Motor Coach provides a vinyl travel strap or a slide latch to secure the door LATCH while the motorhome is in motion. The door latch is a bayonet type, which is engaged by turning the handle.
Page 75: Refrigerator
Controls and Operations REFRIGERATOR The standard RV refrigerators in your motorhome runs on either propane gas or electric power. The controls are at the top of the unit. If you use the auto mode on your refrigerator, the refrigerator will operate on 120 Volt power when available, and automatically switch to propane when shoreline is removed.
Page 76: Elevated Beds
RV mattresses originally installed by Thor Motor Coach. Please also make sure that the bed rail you select allows for adequate room to get in and out of the elevated bed after installation, especially in the event of an emergency.
Page 77: Entry Door
The main entry door is a two piece door. You can use the screen door separately from the main door by unlatching it. Slide the screen handle cover closed to keep insects out of your motorhome. If the door needs adjustment, see a Thor Motor Coach dealer for service.
Page 78: Compartment Doors & Storage Compartments
Controls and Operations STEP OPERATION: 1. With the entrance door open, turn the override switch to the OFF position. Close the door. The step should retract and lock in the ‘up’ position. 2. Open the door. The step should extend and lock in the ‘down’ position with the under step light illuminated.
Page 79: Rear Ladder
Thor Motor Coach motor coaches have plywood reinforced roofs which are strong enough to walk on. Use the ladder to climb up on the roof for inspecting the roofing seal and components.
Page 80: Retract The Awning
Controls and Operations OPEN position. • Hook the awning rod into the pull strap loop securely and pull the awning out. Once extended, slide the pull strap to the right and wrap the strap around the awning arm. Note: Prior to closing, remove tie downs and screen if used. Ensure that the travel strap and buckle are clear of the back channel.
Page 81: Cabel Hook-Up/Phone Jack
Owner’s Manual for operating and maintenance information. FURNACE DOOR The furnaces used by Thor Motor Coach have electronic ignition, and there is no need to access this panel except for service. As with all appliances, service is best left for your dealer.
Page 83: Entertainment
If you cannot find a resolution to your issue you may contact a Thor Motor Coach Dealer with questions or contact the Thor Motor Coach Customer Service Department at 877-855-2867.
Page 84 Entertainment...
Page 85 Entertainment...
Page 86 Entertainment...
Page 87 Entertainment...
Page 88: Heating And Air Conditioning
Warranty/Service If repairs are necessary during the terms of the motorhome warranty, please contact the nearest authorized Thor Motor Coach dealer for service. In the event repairs are necessary during transit, contact Thor Motor Coach Customer Service. Certain individual parts of the Heating and Air Conditioning System such as the compressor, dryer and condenser are covered under the chassis manufacturer warranty.
Page 89: Roof Mounted Air Conditioner
Heating and Air Conditioning The motorhome is equipped with a roof mounted air conditioner. This air conditioner ROOF MOUNTED operates from 120 Volt AC only, either from shore power or the on-board generator. AIR CONDITIONER Air conditioner functions are controlled by the comfort control panel. You can expect to see up to 15 to 20 degree differences in temperature between the Performance closest A/C outlet vent and the return air inlet grill under most operating conditions.
Page 90: Thermostats
Heating and Air Conditioning Note: For detailed information regarding the thermostat refer to the WALL manufacturer’s operating instruction manual. THERMOSTATS Note: Refer to the operation manual for proper long term storage Coleman-Mach procedures. Analog Model Note: Some thermostats are for cool only and will not have a heat option.
Page 91: Ceiling Vents
Heating and Air Conditioning Dometic Mode Selection Press and release the On/Off Mode button to cycle through the available modes. All Dometic Single Zone LCD Thermostats have Cool and Furnace modes. Select models will have an additional mode, either Heat Pump or Heat Strip. When desired mode has been selected, the LCD will display the temperature set-point and the green LED will be lit next to the selected mode.
Page 92 Heating and Air Conditioning Manual The fan is a three-speed fan which can extract air from the motorhome. To operate Dome Operation the fan use the following guidelines: • Turn the fan speed control dial to the desired performance level. If the “0” setting is selected the fan acts as a vent only.
Page 94: Electrical Systems
(DC) 12 Volt service. Because of the many model variations and options, it is not possible to provide wiring diagrams in this manual. We recommend that any electrical work be done by a Thor Motor Coach dealer or a qualified RV electrician. Note: The electrical system is engineered and tested for safety.
Page 95: Batteries
Electrical Systems DO NOT USE A STANDARD HOUSEHOLD EXTENSTION CORD TO CONNECT YOUR MOTORHOME TO ELECTRICAL SERVICE. IF SHORE POWER SERVICE IS LIMITED TO 15 OR 20 AMPS, USE OF LIGHT DUTY EXTENSION CORDS AND ELECTRICAL ADAPTERS WILL CREATE A VOLTAGE LOSS THROUGH THE CORD AND AT EACH ELECTRICAL CONNECTION.
Page 96 Electrical Systems BATTERIES CAN EXPLODE! Always wear splash proof safety glasses when working near batteries. Do not smoke or expose any battery to electric sparks or flame. Batteries, when charging or discharging, generate hydrogen. Hydrogen and air is a very explosive mixture. DO NOT SHORT ACROSS THE BATTERY TERMINALS.
Page 97 Electrical Systems vent plugs are cracked, they must be replaced. 5. Watch for overcharging. Three indications of overcharging are: a. Active material on the vent cap (heavy deposit of black lead-like material on the underside of the vent cap) . b.
Page 98: Power Converter
Electrical Systems Battery Charging The converter/inverter also operates as a battery charger when it is connected to a 120V power source. If the battery is below its full charge, the converter/inverter charger will begin operation at a rate that reflects the level of discharge. When the battery is again fully charged, the converter charger drops its charging level back to a maintenance level to keep the battery fully charged.
Page 99: System Fuses
The Class A motorhome also has a 12 Volt fuse panel, electrical distribution box, located on the fire wall under the hood. These fuses protect the automotive features which are installed by Thor Motor Coach. There is a complete breakdown on the various fuses printed on the backside of this fuse panel cover.
Page 100 Electrical Systems Note: Some electrical appliances may have their own circuit breakers. If there is an interruption in electrical service of an appliance, consult the manual for that appliance to determine what action to take. Note: Please use this information as a guide. Check your motor home for the sticker with the exact call outs.
Page 101: Chassis Alternator
Electrical Systems Note: Should you lose 12 Volt power inside your Class A gas motor home, there is a 50 Amp Reset Button in the Battery Control Center, located under the hood. Remove cover from the black box to access. Note: On a Class C gas motorhome there is a 50 amp reset button located behind the converter.
Page 102 Electrical Systems the exhaust system. Do not use the generator if the exhaust system is damaged. Test the carbon monoxide detector every time you use the motorhome. Know what the symptoms of carbon monoxide poisoning are: • Dizziness • Vomiting • Nausea • Muscular twitching • Intense headache •...
Page 103: Inverter
Electrical Systems Some Thor Motor Coach units are equipped with an inverter. An inverter takes 12V INVERTER DC power from the House batteries and changes it into 120V AC power that can be used by 120V appliances when an outside source of 120V power is not available.
Page 104 Electrical Systems 1. Negative DC cabling terminal. 2. Ventilation opening. Do not obstruct for the proper operation of the cooling fan and inverter. 3. Positive DC cabling terminal. 4. Serial number of your unit. Panel Operation 1. On/Off button. Press once to turn the XM Series Inverter on or off. 2.
Page 105 Electrical Systems Checking Battery You can check the battery status by pressing the Select button until the Input Voltage Status LED illuminates. The battery voltage appears in the three digit LED display. The normal operating battery voltage range is between 11 and 15 volts. Checking Output You can check how much power the XM Series Inverter is supplying to the connected loads by pressing the Select button until the Output Power LED illuminates.
Page 106 Electrical Systems WFCO Note: The WFCO inverter is a “dumb” inverter. This means that in order for shore power to pass through, the inverter’s power must be on. On/Off button Turns the inverter on and off. LCD Display Indicates operation status. LED Indicator Yellow - Battery backup status Green - AC input status...
Page 108: Water Systems
Water Systems FRESH WATER The motorhome plumbing system has the dual ability to be self-contained with on-board storage, or use facilities provided by an external pressurized SYSTEM source. In either case, the components of the system operate like those in your home.
Page 109 Water Systems When traveling, you may want to drain the tank, or keep the quantity of water in it to a minimum. This reduces the total weight of the motorhome for travel. Make sure when draining the tank, that the water pump has been turned off. The fresh water tank drain valve is located below and near the fresh water fill spout.
Page 110: Low Point Drains
Water Systems Place the pump control switch in the ON position. Allow time for the hot water tank to fill. Shut off each faucet as the flow becomes steady and free of air. When the last faucet is shut off, the pump should also shut off. The system is now ready for use.
Page 111: Sanitizing The System
Water Systems SANITIZING THE You should sanitize and disinfect the fresh water system upon delivery of the unit and at least once per year or whenever the motorhome is unused for prolonged periods SYSTEM of time. This will help keep your water system fresh and discourage the growth of viral and bacterial contamination, which may be contained in your water supply.
Page 112: Waste Water System
Water Systems monitor panel. To check fluid levels, press and hold the test switch designated for the tanks, and read the level indicators on the panel. The indicator is proportioned in thirds with each indicator light illuminating to the level that the tank contains. Indicator lights and their meanings: Inaccurate Holding The accuracy of two wire holding tank monitoring systems can be adversely affected...
Page 113: How To Prevent Blockage Of Drain Lines
Water Systems 3. Deposit the other end of the sewer hose into an approved dump station inlet. 4. Open the black termination valve first and drain. 5. Open the gray (smaller) tank valve to drain and flush out the hose. 6.
Page 114: Toilet
Water Systems 5. Hatch cover. Open this and pass your city pressure hose through. Close with hose passing through small opening in the cover. 6. Exterior faucet. For mixing the water temperature for the exterior shower head. The toilet installed in the motorhome is connected to the pressurized fresh water TOILET system.
Page 115 Dump valve must be open any time there is a hose (water CAUTION supply) connected to this system. DO NOT LEAVE ANY HOSE (WATERSUPPLY) connected to this system when not in use.
Page 116: Lp System
LP System PROPANE GAS IS HIGHLY VOLATILE AND EXTREMELY EXPLOSIVE. DO NOT USE MATCHES OR A FLAME TO TEST FOR LEAKS. USE ONLY APPROVED PROPANE GAS LEAK TESTING SOLUTIONS FOR LEAK DETECTION. Unapproved solutions can damage copper tubing and brass fittings. Never attempt to adjust propane gas regulators.
Page 117: Propane Regulator
LP System 7. Drive at least one mile from the propane gas supplier before relighting pilot lights or appliances. This will allow any minimal leakage which occurred while filling the tank to dissipate. DO NOT light pilot lights if you continue to smell propane gas.
Page 118 LP System a problem. The correct line pressure should be 6 ¼ oz. or 11 inches of water column. Because air is required for proper operation of the regulator, it is very important that the regulator vent is kept clean and free of dirt and debris. This is why it is necessary to keep the vent facing downward and the regulator covered to protect if from contamination.
Page 119: Propane Gas Hoses
LP System surrounding air to vaporize. This lowering of BTU value can significantly affect the performance of the system. You can help insure proper performance by keeping the propane gas tank as full as possible in cold weather, and reviewing the BTU/hr plates on propane gas appliances for proper propane management.
Page 120: Care And Maintenance
Care and Maintenance GENERAL Periodic maintenance and cleaning of your recreational vehicle is necessary to retain the dependability, safety, and appearance that will provide you with many miles of INFORMATION trouble free operation, as well as protecting your investment. Make sure you read and follow all the maintenance tips and schedules that appear not only in this manual, which for your convenience we have provided for you, but also in the manuals provided by the chassis manufacturer and various component manufacturers.
Page 121: Water System
Owner’s Information Kit for the care and maintenance required on a regular basis. If you experience electrical problems with your recreational vehicle, make sure to have it checked by an authorized Thor Motor Coach dealer or a qualified RV technician. Generator power plant service, recommended by the generator manufacturer, should be performed at an authorized service center.
Page 122: Propane System
Care and Maintenance PROPANE SYSTEM All service procedures should be performed only by a CAUTION certified propane service technician. The propane system should be checked regularly for leaks and road damage. Follow the lines, looking for kinks or flattened spots that may have occurred during travel or maintenance on the recreational vehicle.
Page 123: Chassis
Care and Maintenance For an acrylic material, periodically hose off the fabric with water then let dry completely before rolling it back up. The acrylic material is water repellent, not water proof. The fabric is pretreated with a water retardant finish. Mildew cannot form on the fabric, but rather will form on dirt or dust on the fabric.
Page 124: Fiberglass
Care and Maintenance When cleaning your head lamps, please observe the following: do not rub them dry, and never use abrasives or strong solvents. Remove dirt and contamination, such as insects, by soaking with shampoo and then rinsing with plenty of water. Always use a de-icer spray to remove accumulated ice and snow;...
Page 125: Exterior Graphics/Paint
Care and Maintenance If you travel roads that have been salted for ice, wash your motorhome as soon as possible. The most common causes of corrosion are accumulation of road salt, dirt, and moisture in hard to reach areas under the motorhome. Make sure you wash the undercarriage and wheel wells as well as the exterior of the motorhome.
Page 126: Extrusions And Aluminum Surfaces
If surface deterioration is apparent, contact a Thor Motor Coach dealer for assistance with finish restoration. Physical damage to the fiberglass, such as cracks, holes, and chips, must be attended to immediately to avoid moisture from entering and causing problems with interior walls and components.
Page 127: Roof Vents
(TPO) roofs and the correct methods of resealing. Silicones and synthetic sealers cannot be used on the rubber roofs. Special sealers are also required for the skylights. Your Thor Motor Coach dealer may perform the periodic roof seals for you if desired.
Page 128: Slide Out
Care and Maintenance • Check roof seals every six months to see if they are cracked or peeling. • Check engine covers and firewall every six months to see if they are cracked or peeled. Your motorhome may be equipped with a slide-out room for added space and comfort. SLIDE OUT Proper care and maintenance is required to achieve the maximum performance.
Page 129: Underbody
Care and Maintenance cargo you can still carry and remain within your GVWR and GAWR limits. Check the condition of the frame regularly. Keep it clean, and repaint as necessary UNDERBODY to help avoid rust. Corrosive materials such as those used for ice and snow removal accumulate on the underside of the motorhome.
Page 130: Bedspread & Draperies
Care and Maintenance BEDSPREAD & We recommend dry cleaning for your bedspread and draperies just as you would for your draperies and comforters at home. Although this is more expensive, proper care of DRAPERIES material will help ensure a longer life. Care of headboard and bedroom valance fabric should be done with same instructions given for upholstery fabrics.
Page 131: Wall Coverings
Care and Maintenance your upholstered fabrics: • Clean with mild soap and water. Air dry. • Remove tougher stains with mild detergent or mild cleaning agent like Fantastic ® or Formula 409 ®. • Disinfect with 5:1 bleach solution. • Do not use abrasive cleansers.
Page 132 Care and Maintenance Inhibiting Mold By controlling relative humidity, the growth of mold and mildew can be inhibited. In warm climates, use of the air conditioner will reduce the relative humidity. Vents are Growth located in the bathing and cooking areas and constant use is advised during food preparation and bathing, even during colder weather.
Page 133 Care and Maintenance Tips for Controlling To avoid condensation problems, try to follow these tips to help alleviate excess moisture: Condensation • Allow excess moisture to escape to the outside when bathing, washing dishes, hair drying, laundering, and using appliances and non-vented gas burners.
Page 134 Care and Maintenance devoted to ensure the slide outs are functioning properly. Each time a slide out is used, it should be inspected to ensure proper operation and sealing. The slide out gaskets should also be inspected to ensure proper sealing when the slide out is operated. During those periods when the motorhome is not in use, care must be taken to ensure Storage of the moisture sources are addressed.
Page 136: Winter Use And Storage
Winter Use and Storage TIPS FOR WINTER Thor Motor Coach recommends that you winterize your unit before the ambiant temperature reaches 32 degrees, however, many people choose to use their motorhomes throughout the entire year. Extensive usage is not recommended in severe cold weather.
Page 137 Winter Use and Storage out completely. Drain the black tank first and allow the gray water tank to rinse out the flexible hose drain line. You may now add a commercial holding tank chemical cleaner Driving the unit around for a few miles will allow the cleanser to circulate within the tanks and drains.

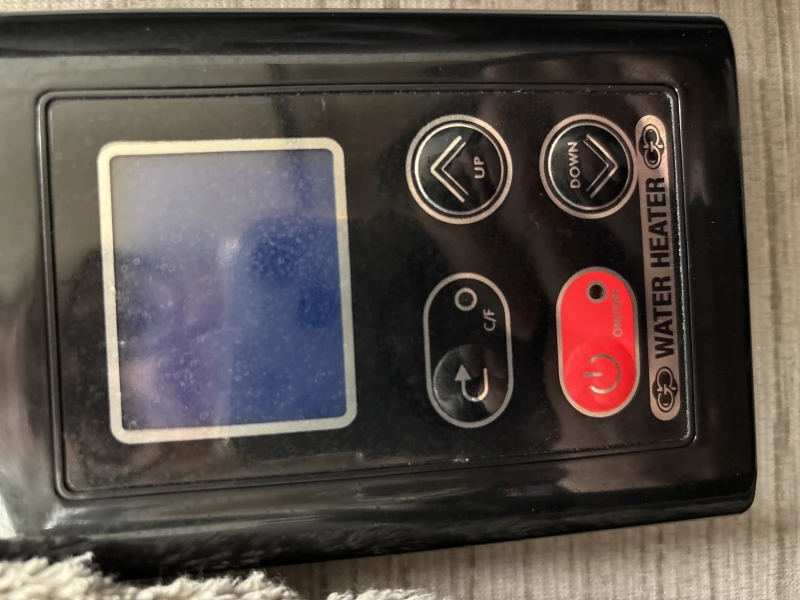

Page 138: Water Heater Bypass
Draining the tanks and water lines in your motorhome is half the battle of winterization. Complete the Storage and Winterization Checklist to ensure protection of your WATER HEATER motorhome. An authorized Thor Motor Coach service dealer can help you in the BYPASS winterization process for your convenience.
Page 139 Winter Use and Storage Curtains Close all the drapes and curtains, and protect the curtains from sun fading by placing foil or paper between the windows and the & Blinds curtains/blinds. Close and lock. Inspect and reseal if necessary. Windows Holding Tanks Drain and rinse.
Page 141: Travel Preparation Checklist
Travel Preparation Checklist CLOTHING SLEEPING GEAR MISCELLANEOUS Dresses Blankets Alarm Clock Gloves Pillows, Pillow Cases Batteries Hat or Cap Sheets Bucket Jackets, Coats Sleeping Bags Clothes Hangers Jeans, Dress Pants Clothes Line, Clothes Pins Pajamas Electronics Chargers Shirts, Blouses PERSONAL COMFORT Fresh Water Hose Shoes, Sandals Anti-Bacterial Wet Wipes...
Page 142: Maintenance Schedule
Maintenance Schedule PROCEDURE TO BE PREFORMED: Maintenance schedules are minimum requirements. Heavy use, unusual temperatures or humidity, or other extreme conditions may require more frequent maintenance. ITEM Roof & Components Inspect & reseal roof & exterior attachment areas. Clean roof. Lubricate roof vent mechanism w/ light oil.
Page 143 Maintenance Schedule Date Service Preformed Mileage Date Service Preformed Mileage...
Page 144 Maintenance Schedule Date Service Preformed Mileage Date Service Preformed Mileage...
Page 145: Fuel/Oil Record
Fuel / Oil Record Date Mileage Fuel Date Mileage Fuel (Gallon) (Quarts) (Gallon) (Quarts)
Page 146 Fuel / Oil Record Date Mileage Fuel Date Mileage Fuel (Gallon) (Quarts) (Gallon) (Quarts)
Page 147: Notes
Notes...
Page 148 Notes...
Page 149: Index
Index Doors & Drawers 12V System Fuses 18,58 Driving 12V System Fuses - Automotive Dumping the Holding Tanks 12V System Fuses - Interior 30 Amp Shore Power Effects of Prolonged Occupancy Egress Window 50 Amp Shore Power Electric Slide Out ABS Plastic Parts Air Hide-A-Bed Sofa Electric Slide Out Manual Retraction Procedure...
Page 150 Index Identification and Safety Proper Load Balance Index Range Inspect and Maintain Read the Book Insurance Rear Ladder Introduction Rear Vision System InWall Slide Out Rearview Mirror Kitchen Cabinets Refrigerator Kitchen Drawers Refrigerator Doors 18,66 Kitchen Faucet Reporting Safety Defects Kitchen Fixtures Return Air Filters Kitchen Pantry...
Page 151 Index Travel Preparation Travel Preparation Checklist Turn Signal/Lane Change TV Antenna TV Hook-up Under Bed Storage Underbody Undercarriage Checks Upholstery & Fabrics Use of Bed Rails Using the Firmness Control System Ventilation Video Switch Box Wall Coverings Warranty Waste Water System 88,98 Water Fill Water Heater Bypass...
