Play Scheduling - X-Digital System XDS PRO1 User Manual

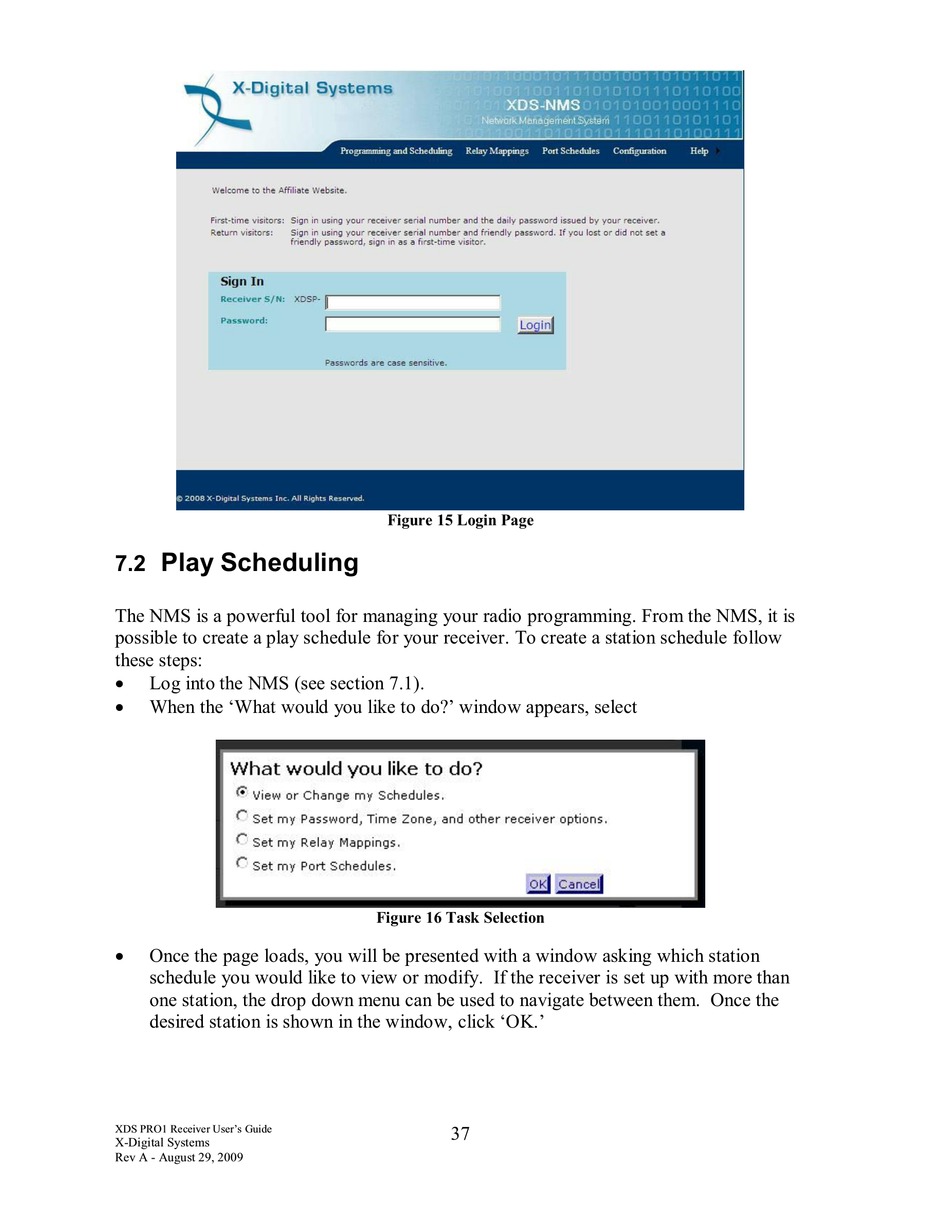

Play Scheduling

7.2
The NMS is a powerful tool for managing your radio programming. From the NMS, it is
possible to create a play schedule for your receiver. To create a station schedule follow
these steps:
x
Log into the NMS (see section 7.1).
x
When the 'What would you like to do?' window appears, select
x
Once the page loads, you will be presented with a window asking which station
schedule you would like to view or modify. If the receiver is set up with more than
one station, the drop down menu can be used to navigate between them. Once the
desired station is shown in the window, click 'OK.'
XDS PRO1 Receiver User's Guide
X-Digital Systems
Rev A - August 29, 2009
Figure 15 Login Page
Figure 16 Task Selection
37
