6.1.4 The Relays Tab

The Relays Tab lists all the 16 relay mappings complete with their NETRELAYS and
on/off status.

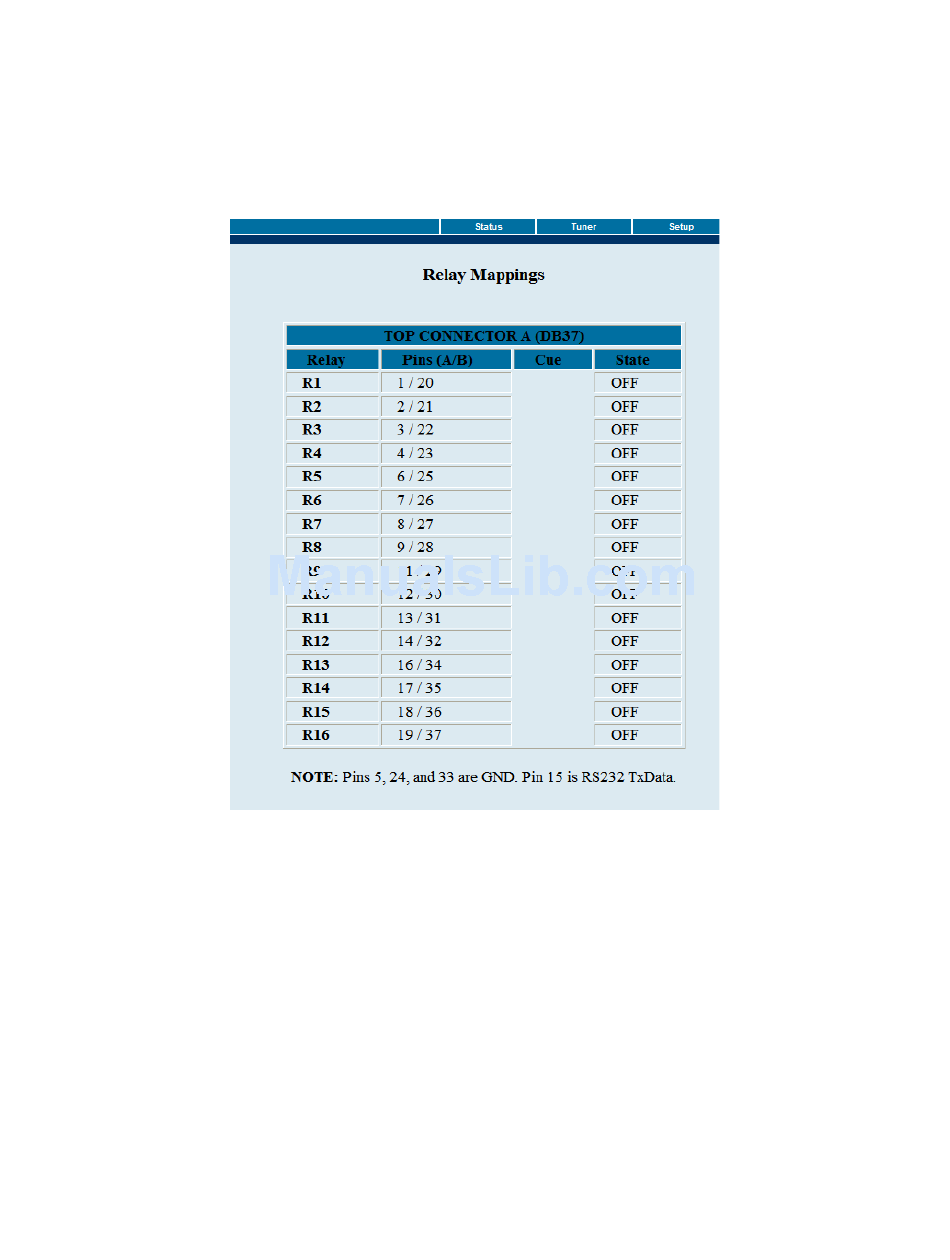

Figure 9 Relays Tab

6.1.5 The Opto Inputs Tab

The Opto Inputs tab allows the user to view and edit the commands executed when an
optical input pin is activated.
The Mode may be set to either the default Uncoded mode, or Coded mode. Uncoded
mode assigns each individual pin to a group of commands, allowing four command
groups to be assigned. Whenever a pin is activated in Uncoded mode, its associated
command group is executed.
