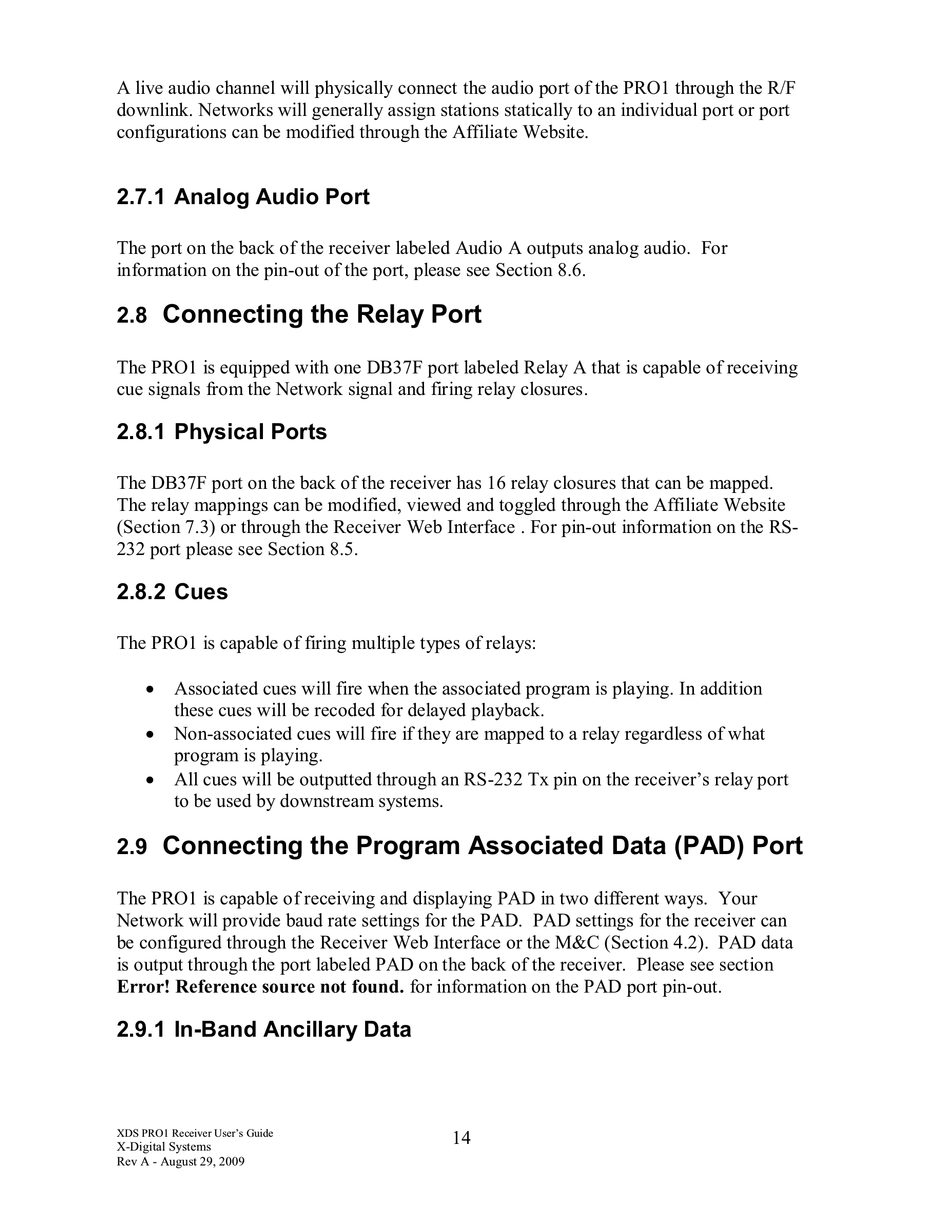

A live audio channel will physically connect the audio port of the PRO1 through the R/F
downlink. Networks will generally assign stations statically to an individual port or port
configurations can be modified through the Affiliate Website.

2.7.1 Analog Audio Port

The port on the back of the receiver labeled Audio A outputs analog audio. For
information on the pin-out of the port, please see Section 8.6.

Connecting the Relay Port

2.8
The PRO1 is equipped with one DB37F port labeled Relay A that is capable of receiving
cue signals from the Network signal and firing relay closures.

2.8.1 Physical Ports

The DB37F port on the back of the receiver has 16 relay closures that can be mapped.
The relay mappings can be modified, viewed and toggled through the Affiliate Website
(Section 7.3) or through the Receiver Web Interface . For pin-out information on the RS-
232 port please see Section 8.5.

2.8.2 Cues

The PRO1 is capable of firing multiple types of relays:
x Associated cues will fire when the associated program is playing. In addition
these cues will be recoded for delayed playback.
x Non-associated cues will fire if they are mapped to a relay regardless of what
program is playing.
x All cues will be outputted through an RS-232 Tx pin on the receiver's relay port
to be used by downstream systems.

Connecting the Program Associated Data (PAD) Port

2.9
The PRO1 is capable of receiving and displaying PAD in two different ways. Your
Network will provide baud rate settings for the PAD. PAD settings for the receiver can
be configured through the Receiver Web Interface or the M&C (Section 4.2). PAD data
is output through the port labeled PAD on the back of the receiver. Please see section
Error! Reference source not found. for information on the PAD port pin-out.
