X-Digital System XDS PRO1 User Manual page 18

Note!
x
In the COM1 Properties dialog, select 115200 in the "Bits per second" drop-down
list, 8 in the "Data bits" drop-down list, "None" in the "Parity" drop down list, 1 in
the "Stop bits" drop-down list, and None in the "Flow control" drop down list. Press
"Apply" and then press "OK".
You are now ready to communicate with the PRO1 Receiver via the console you have
created.
There are a variety of typed commands to which the receiver will respond. By default the
console is not logged into the receiver, and as such the console will have a very limited
set of commands to use. Without logging in, the user can only use status commands and
may not change any receiver settings. To log in, use one of these two accounts:
XDS PRO1 Receiver User's Guide
X-Digital Systems
Rev A - August 29, 2009

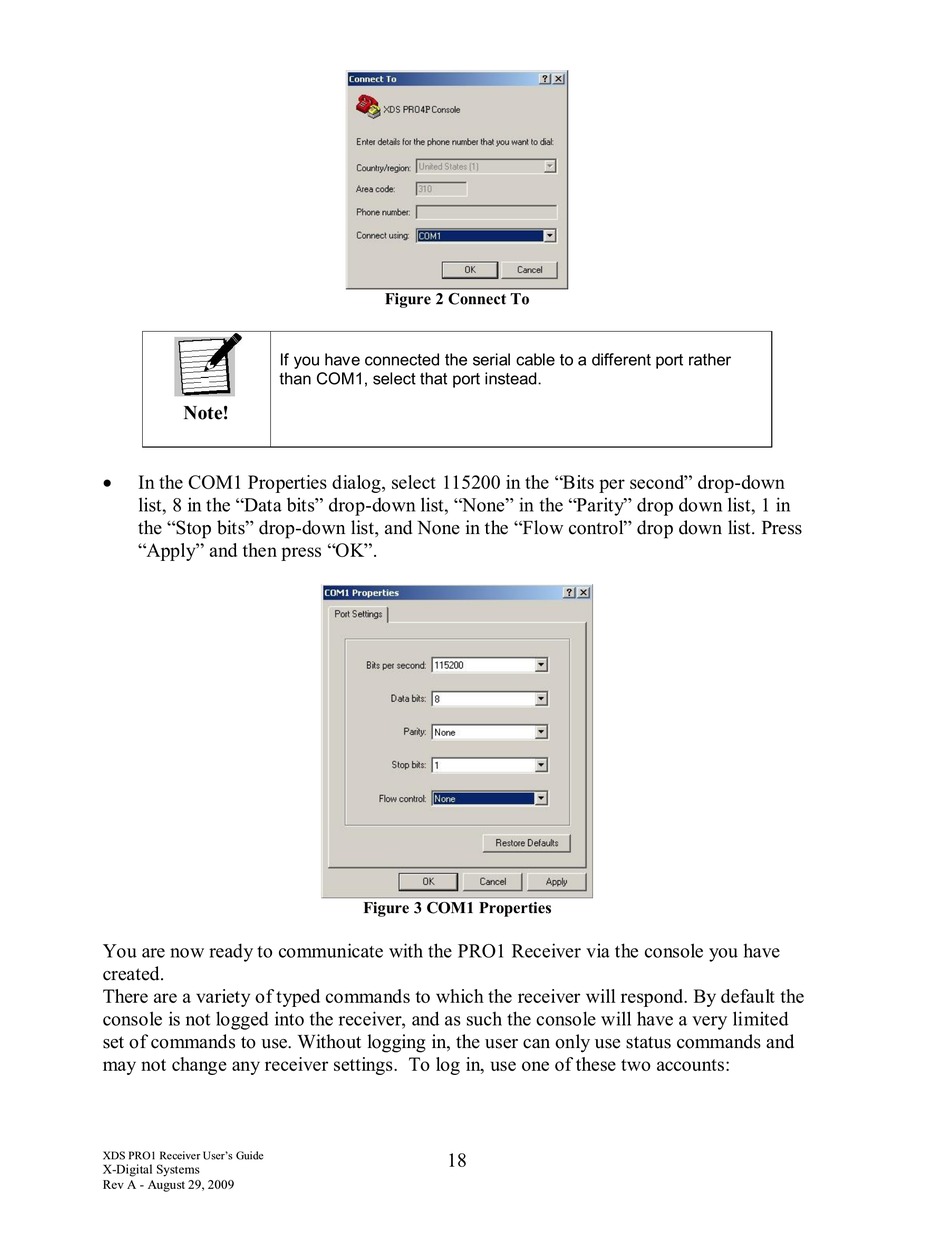

Figure 2 Connect To
If you have connected the serial cable to a different port rather
than COM1, select that port instead.
Figure 3 COM1 Properties
