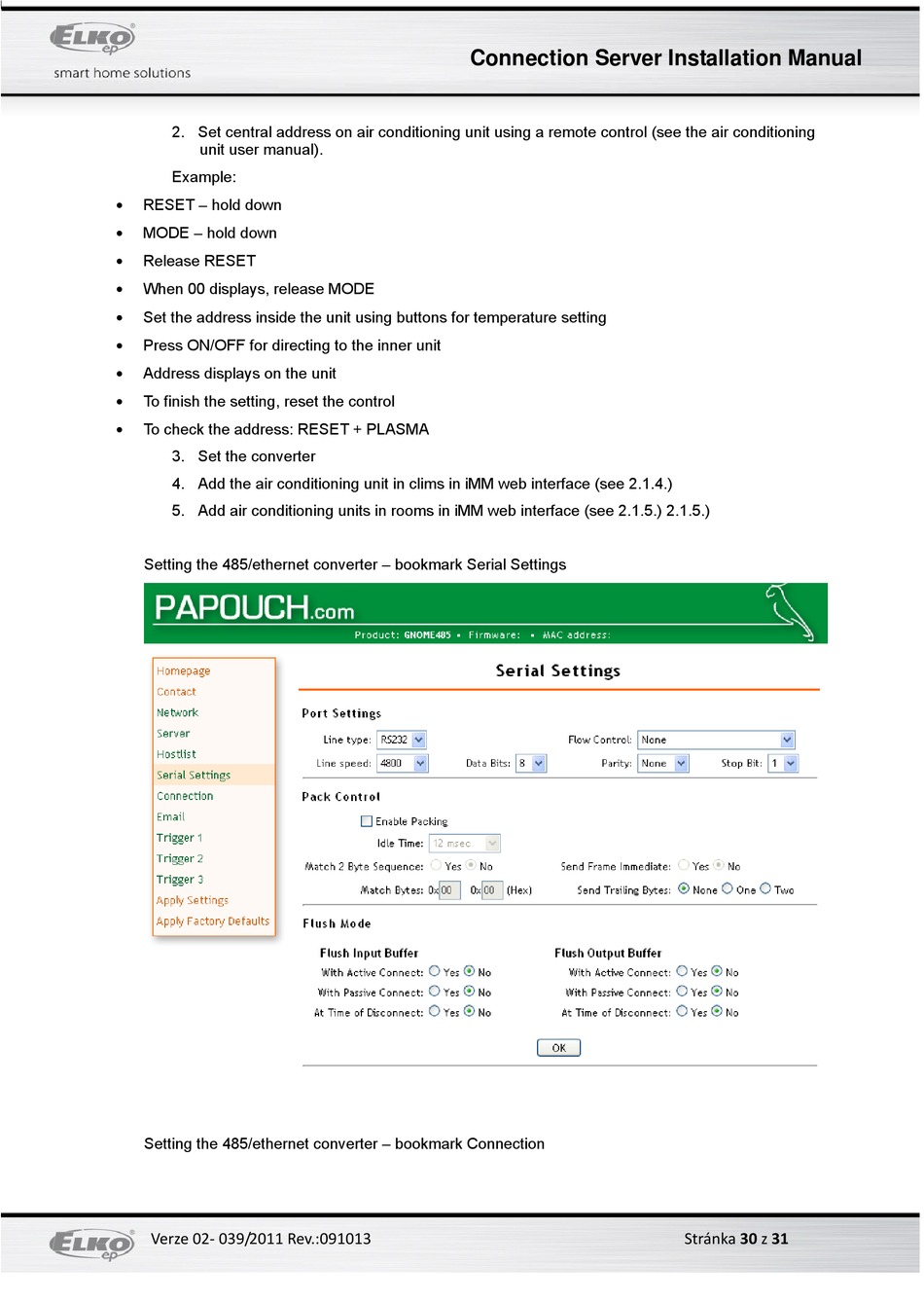

iNels Connection server Installation Manual page 30

2. Set central address on air conditioning unit using a remote control (see the air conditioning
unit user manual).
Example:

RESET – hold down

MODE – hold down

Release RESET

When 00 displays, release MODE

Set the address inside the unit using buttons for temperature setting

Press ON/OFF for directing to the inner unit

Address displays on the unit

To finish the setting, reset the control

To check the address: RESET + PLASMA
3. Set the converter
4. Add the air conditioning unit in clims in iMM web interface (see 2.1.4.)
5. Add air conditioning units in rooms in iMM web interface (see 2.1.5.) 2.1.5.)
Setting the 485/ethernet converter – bookmark Serial Settings
Setting the 485/ethernet converter – bookmark Connection
