3.2.2. Air conditioning unit CoolMaster

CoolMaster
There are 8 different versions for
individual air conditioning makers
• CoolMaster Daikin 1000D
• CoolMaster Sanyo 2000S
• CoolMaster Toshiba3000T
• CoolMaster Mitsubishi Electric 4000M
• CoolMaster LG 6000L
• CoolMaster Fujitsu 7000F
• CoolMaster Mitsubishi Heavy 8000MH
• CoolMaster Hitachi 9000H
Step-by-step putting in operation:
1. Connect all by the attached
wiring scheme
2. Set the RS232/ETHERNET converter
3. Set the central address on the wall air conditioning unit control
4. iMM communicates via converter Papouch GNOME RS232 and its IP address has to be
entered in file /etc/imm/coolMaster.cfg together with the type of the CoolMaster control unit.
If everything is set correctly, the CoolMaster display will not show U00 G00 but the typed address.
For instance, U00 G01. Then everything goes via iMM client but the air conditioning unit can still be
controlled via local control; they mutually synchronize.

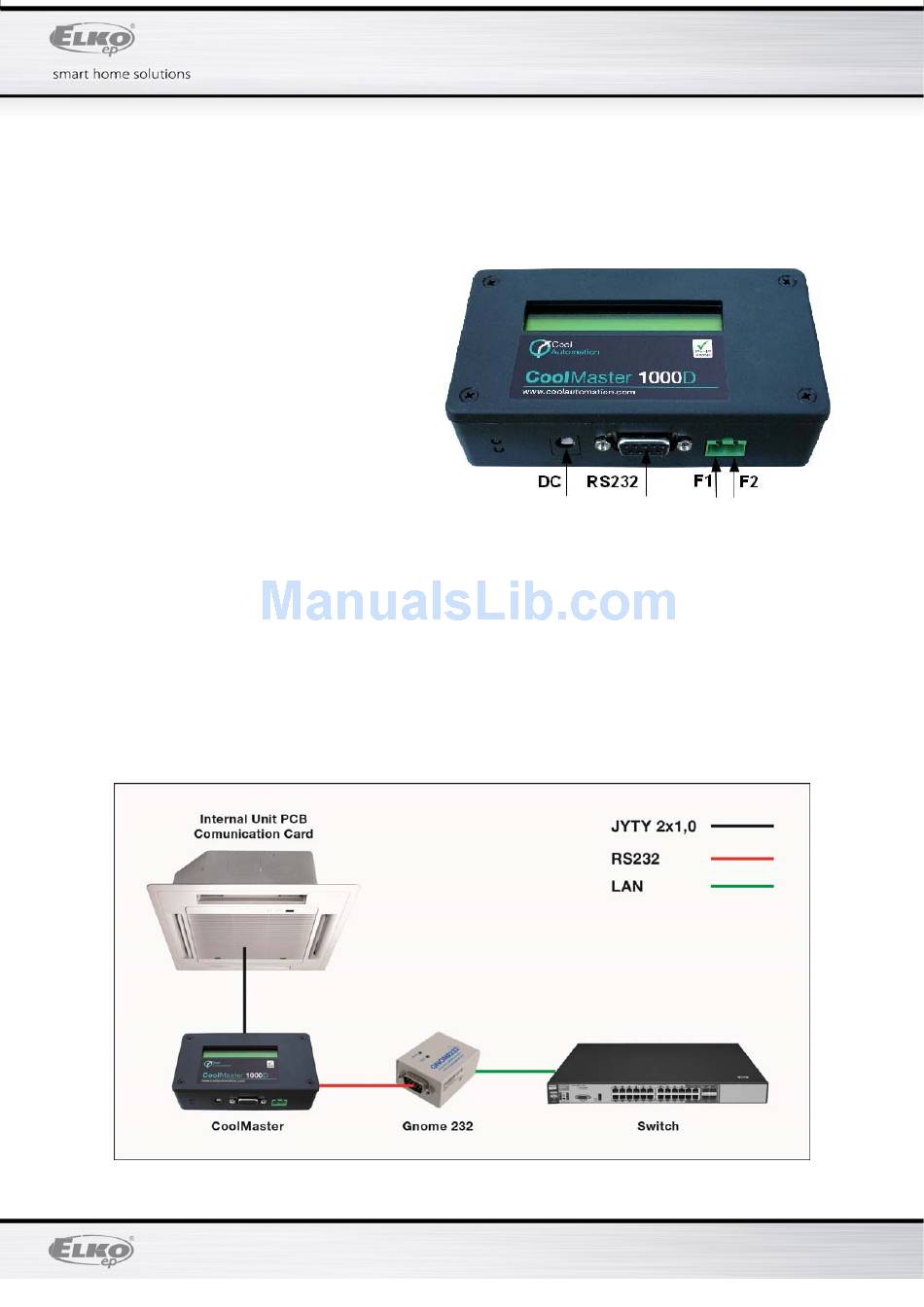

Illustrative putting in operation:
Wiring scheme
Verze 02‐ 039/2011 Rev.:091013 Stránka 26 z 31
Connection Server Installation Manual
Connectors on unit
