3. Supplements

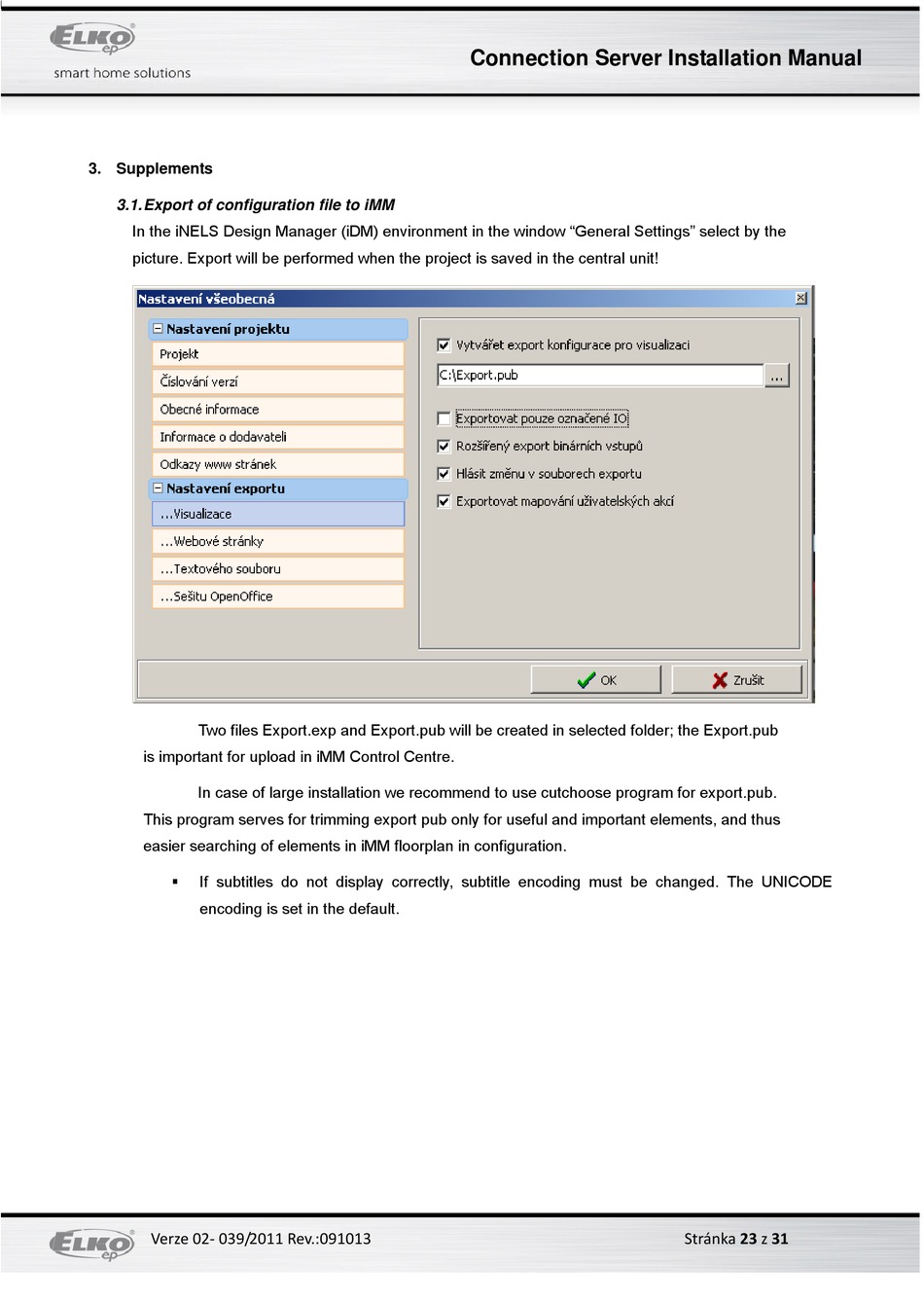

3.1. Export of configuration file to iMM

In the iNELS Design Manager (iDM) environment in the window "General Settings" select by the
picture. Export will be performed when the project is saved in the central unit!
Two files Export.exp and Export.pub will be created in selected folder; the Export.pub
is important for upload in iMM Control Centre.
In case of large installation we recommend to use cutchoose program for export.pub.
This program serves for trimming export pub only for useful and important elements, and thus
easier searching of elements in iMM floorplan in configuration.
 If subtitles do not display correctly, subtitle encoding must be changed. The UNICODE
encoding is set in the default.
