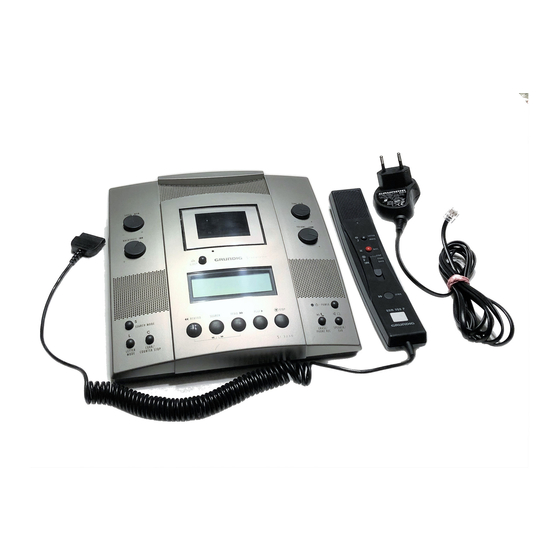

- Page 1 Stenorette St 3230 Steno-Cassette 30 ENGLISH www.grundig-gbs.com...
- Page 2 Stenorette St 3230 __________________________________________________________ TELEPHONE TELEPHONE TELEPHONE ac 9V-10V~ ac 9V-10V~ ac 9V-10V~ HEADSET FOOT CONTROL HEADSET HEADSET FOOT CONTROL FOOT CONTROL FFWD STOP START GRUNDIG GRUNDIG GRUNDIG MICROPHONE IO MICROPHONE IO MICROPHONE IO ic 800 FX...
- Page 3 Stenorette St 3230 __________________________________________________________ TELEPHONE TELEPHONE TELEPHONE ac 9V-10V~ ac 9V-10V~ ac 9V-10V~ HEADSET FOOT CONTROL HEADSET HEADSET FOOT CONTROL FOOT CONTROL GRUNDIG GRUNDIG GRUNDIG MICROPHONE IO MICROPHONE IO MICROPHONE IO S P E E D T O N E...
- Page 4 Stenorette St 3230 __________________________________________________________ FFWD STOP START ic 800 FX...
-
Page 5: Table Of Contents
CONTENTS ___________________________________________________________________________ Brief Instructions Steno-cassette compartment, counter reset Recording and control functions on the microphone Text marks Storing end and info marks Playback Fast forward, rewind, search Erase S-, L-, C- buttons Preparation Suitable location Mains unit 682 connection Turning the machine on and off Connecting accessories Information Display Display explanation... -
Page 6: How To Use The Microphone
The features indicated by Grundig apply only when using original Grundig accessories. Defects due to the use of accessories which are not original Grundig accessories or which do not comply with the legal regulations or the corresponding standards lead automatically... -
Page 7: Brief Instructions
BRIEF INSTRUCTIONS ______________________________________________________ Turn the machine on and off: press the »POWER« button. Steno-cassette compartment, counter reset In Stop position, press the »EJECT« button. – The cover opens slowly and the counter is reset to zero (0). Insert the steno-cassette with its open side and the labelling visible into the steno- cassette compartment. -
Page 8: Fast Forward, Rewind, Search
BRIEF INSTRUCTIONS ______________________________________________________ Change the volume using the »VOLUME« rotary adjuster. Change the tone using the »TONE« rotary adjuster. Fast forward, rewind, search Fast forward: press the »FFWD« button. Rewind: press the »REWIND« button. Stop: press the »S T O P « button. Search forward: press the and »SEARCH«... -
Page 9: Preparation
Mains unit 682 connection With mains unit 682 GB Warning! The mains unit is designed for use with the Grundig Stenorette St 3230 only. To connect the mains unit with the machine: push the connector (telephone type ac 9V-10V jack) into the socket at the back of the machine marked »ac 9V-10V~«. -
Page 10: Information Display
INFORMATION DISPLAY _______________________________________________ Display explanation Dictation length in minutes Letter counter Info counter 00.0 – 99.9 0 – 19 0 – 19 PLAY STOP LETTER INFO I8 I8 8 8.8 DICTATE PHONE RECORD ERASE LETTER INFO SEARCH REWIND FFWD Function display Note: Throughout the manual 88.8... -
Page 11: Recording Dictations
RECORDING DICTATIONS ______________________________________________ Microphone recording sensitivity Select one of the three switch settings on the microphone: ı Private – I Normal – Conference. Recording distance from microphone (dictation) approximately 10 cm. The machine adjusts automatically to the when volume of the dictation recording. -
Page 12: Tape End And Tape End Switch-Off
RECORDING DICTATIONS ______________________________________________ – Press the » « button. STOP Move the slide-switch into the » START « position and speak the correction. START – The following appears in the display: PLAY STOP LETTER INFO — DICTATE I8 I8 PHONE RECORD ERASE LETTER... -
Page 13: Recording Telephone Calls
______________________________________________ Recording telephone calls You need a telephone coupler to be able to record telephone calls (for more information, please contact Grundig Business Systems GmbH). Connecting Connect the telephone coupler to the » « socket on the back of the machine. -
Page 14: Text Marks
– When releasing the button, an end mark will be recorded. – The letter number in the display is increased by 1. The end mark will be recognized by all Grundig dictation machines with a search function. See chapter “Search Function”... -
Page 15: Index Mark
TEXT MARKS _______________________________________________________________________ Index mark Parts of the tape that have to be corrected can be marked with an index mark either during playback or stop. Press the left » II --- « or right » II --- « button at the required position. The text passages that are to be inserted can be recorded at the end of the dictation;... -
Page 16: Dictation Count
DICTATION COUNT ___________________________________________________________ Storing end and info marks The end of the letter, as well as the start and end of an info, must be marked during dictation in order to register the letter and the info on the display. Insert a recorded steno-cassette that has been rewound into the tape compart- ment. -
Page 17: Playback And Search Modes
PLAYBACK AND SEARCH MODES ______________________________ After using the ”Dictation count” function, you can select between the following playback and search modes. Playback of all recordings, searching for end and info marks Repeatedly press the »S SEARCH MODE« button until the display indicates »LETTER INFO«. -
Page 18: How To Use The Microphone
HOW TO USE THE MICROPHONE ______________________________ STOP To start playback move slide-switch to » START«. START – The following appears in the display: PLAY STOP LETTER INFO 8 8.8 DICTATE I8 I8 PHONE RECORD ERASE LETTER INFO SEARCH REWIND FFWD FFWD To stop playback move slide-switch to »... -
Page 19: How To Use The 536 Foot Control
HOW TO USE THE 536 FOOT CONTROL _________________ Switch options: right pedal = start middle pedal = fast forward left pedal = short rewind Starting and stopping using the 536 foot control You can use the start pedal (right pedal) to either lock or scan. Slide the switch on the bottom of the machine to the desired position. -
Page 20: Search Function
SEARCH FUNCTION __________________________________________________________ Note: This chapter describes the search functions of the search mode “LETTER INFO”. The operation of search modes »LETTER« and »INFO« corresponds. Searching for end and info marks The search function automatically locates marks set at the end of letters and the start and end of infos during recording;... -
Page 21: Care And Maintenance
Check whether the search mode “LETTER” or “INFO” is selected. See chapter “Playback and Search Modes”. Warning! Repair note Use only original replacement parts. The power cable may be replaced only by a Grundig authorised repair service. Please contact your dealer if malfunctions occur. -
Page 22: Technical Data
The product is in accordance with following EC-Directives: “89/336/CEE, 73/23/CEE, 93/68/CEE“. Environment-friendly materials – environment-compliant packing: Grundig dictation machines are conceived and fabricated according to the highest environmental requirements. Subject to technical alterations and alterations in styling. E. and O.E. -
Page 23: Warranty, Service, Sales
Please contact your supplier if you wish to register the guarantee of this product or make a claim. If there is no specialized dealer in your region, please contact one of the following addresses. Grundig Business Systems (UK) Ltd. Suite 5R14 (5th Floor Red Zone) - Page 24 Grundig Business Systems GmbH Weiherstraße 10 D - 95448 Bayreuth Germany 36123 942 0202...
