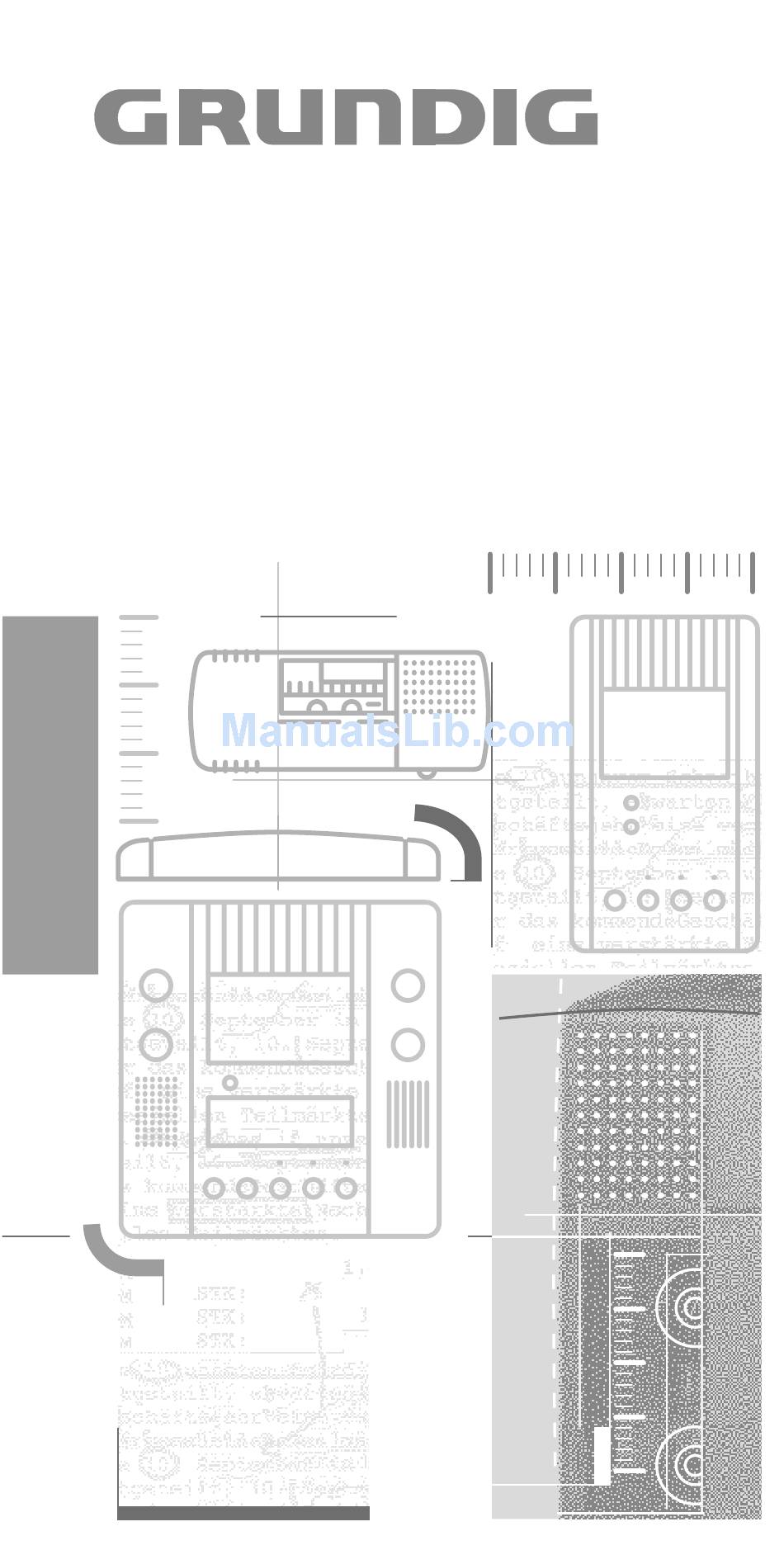

- Page 1 Dh 2220 D h 2 0 9 4 Steno-Cassette 30 Handdiktiergerät Portable dictation machine Machine à dicter portable...
- Page 2 Dh 2220 The product is in accordance with following EC-Directives: “89/336/CEE, 73/23/CEE, 93/68/CEE“...
- Page 3 I N D E X V O L D I C T. M I C Dh 2220 ßI ß? ß` ßQ...
- Page 4 DIN 32 750-T steno-cassette 30 Batterien Batterijen Batteries Batterier Pile Batterierne Piles Pilas ü Akkuset 662 Rechargeable batteries Accumulatori 662 Accumulateurs 662 Akku´s 662 Ackumulator 662 Akkumulator 662 Baterias 662 Netzbetrieb Mains operation Funzionamento con la rete Fonctionnament sur secteur Gebruik met de adapter Nätdrift Netdrift...
-
Page 5: Supply Voltage
Supply Voltage Battery, rechargeable battery, mains operation Battery/rechargeable battery condition indicator (plus recording indicator): Lights up when recording. Goes out when the batteries/rechargeable batteries are weak. Recording is still possible until the motor stops (sound signal Battery operation with two 1.5V/LR 6/AA batte- ries (alkaline-manganese), leak-proof. -
Page 6: Controls And Sockets
Controls and Sockets Please open folder at beginning of booklet! Playback volume control (turn) Microphone DICT. indication Lights up during recording. DICTATE button “ - DICTATE” Press for recording (locks in). Switch-on lock red green Prevents accidental switching on. Slide-switch Fast forward (search) Stop Start playback... - Page 7 General Do not expose the unit and the steno-cassettes to temperatures above 55 °C. Note on Environmental Protection Do not throw exhausted batteries in the house- hold refuse. Hand over the old batteries to your dealer or public collecting points when buying new ones.
- Page 8 Recording Microphone and recording indication Microphone Speaking distance approx. 5cm - 10cm; decrease in the case of high ambient noise. DICT. Indication (plus battery/rechargeable battery indicator) – Ligths up during recording. – Goes out when the batteries/rechargeable batteries are exhausted (page 1). Recording Every new recording automatically erases the existing recording on the tape.
- Page 9 Recording To listen to long text passages, keep sliding switch in “ REWIND” position: – The tape is rewound until the sliding button is released ( “ START”). Pleas note: – At letter ends marked with the “ INDEX” l l – – l button, the unit also stops for approx.
- Page 10 Recording Voice activated start/stop with… – Clip-on microphone 759VA*. – Pen-type microphone 761* with additional start/stop switch (suited for conference recordings). When making pauses during recording (longer than 4 s), recording is interrupted. When spea- king again, recording will be resumed. Other- wise, proceed as for “Recording”, page 4.
- Page 11 Playback Playback “Fast forward wind/rewind”, see page 8. Starting playback Set sliding switch to “ START”: – A warning signal sounds if no steno-cassette is fitted. Adjust desired volume (turn). During playback, you can mark positions requiring correction. During “ START”: briefly press the “...
- Page 12 (page 5). During “ FFWD” forward wind and “ REWIND”, the unit stops for approx. 1 s at these markings. These markings are recognized by every GRUNDIG dictating machine with search function. Fast rewind with search Keep sliding switch in “ REWIND” position;...
-
Page 13: Care And Maintenance
Care and Maintenance The housing should only be cleaned with a soft cloth which picks up dust. Polishing or clea- ning agents may damage the surface. Parts contacting the tape should be checked from time to time for contamination by tape abrasion, see illustration at the end of this booklet. - Page 14 Figure to text "tape contacting parts" , page...
