Summary of Contents for Grundig RRCD 3410

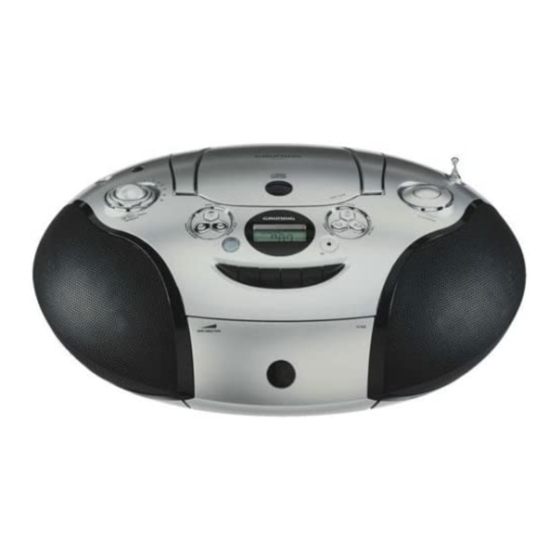

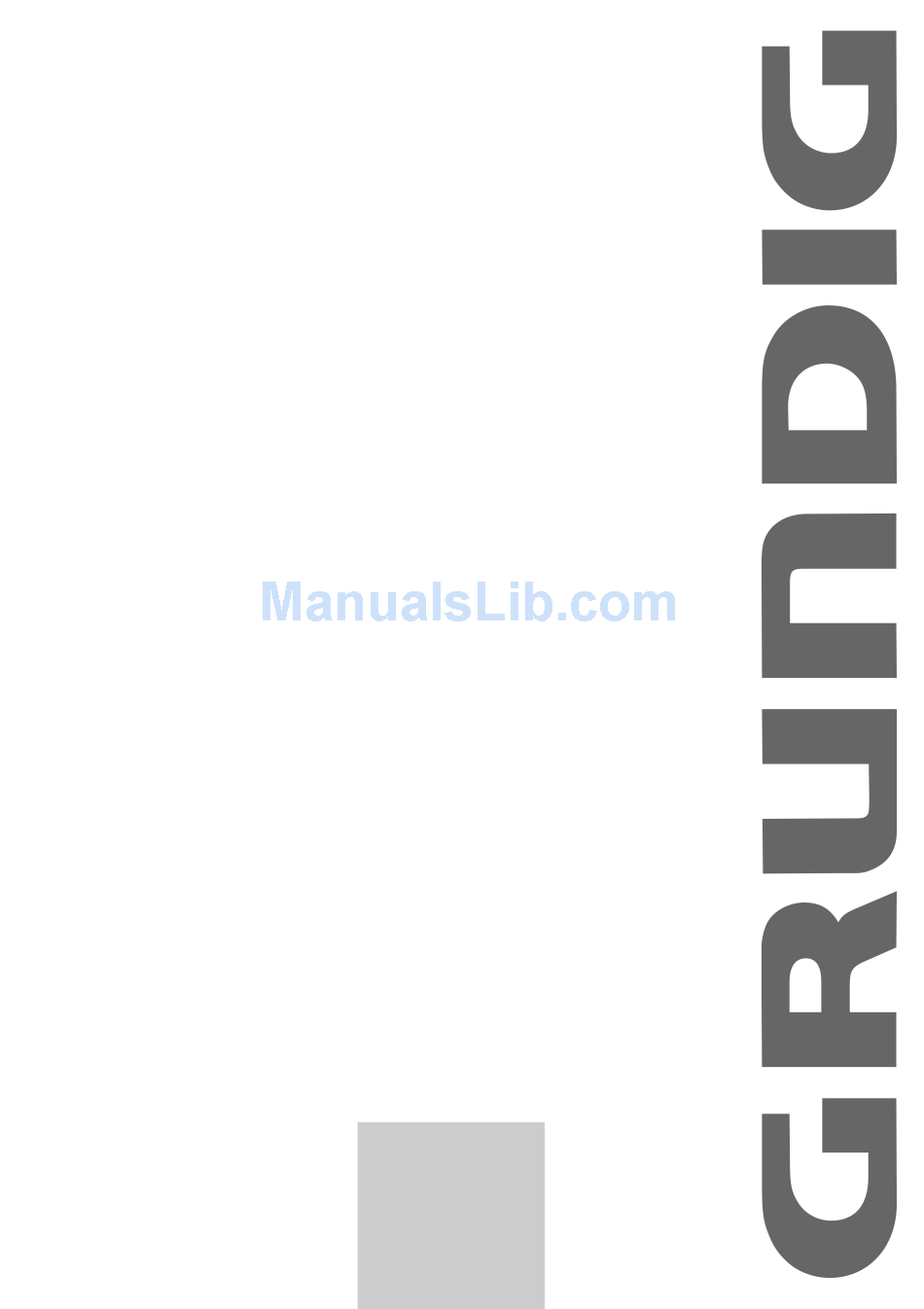

- Page 1 RADIO CASSETTE RECORDER WITH CD RRCD 3410...
-
Page 2: General Information
OVERVIEW ENGLISH ______________________________________________________ Controls General information Switches between the CD, TAPE and RADIO input sources. CD TAPE/OFF Switches off the device. RADIO Operation indicator. Lights up red during operation. Infrared receiver for the remoter control. Adjusts the volume. VOLUME Switches the Ultra Bass System on and off. Headphone jack for connecting a headphone set with a jack plug (ø... - Page 3 OVERVIEW ______________________________________________________ Tape unit CLOSE Press here to close the tape compartment. Pauses recording and playback. Ends playback/recording of the tape and opens the tape compartment. Rewinds the tape to the beginning. Fast forwards the tape to the end. Starts playback. •...
-
Page 4: The Remote Control
OVERVIEW ______________________________________________________ The remote control In CD mode: starts and pauses playback. PLAY/PAUSE In radio mode: press briefly to change the UP/F.FW frequency up and down in steps; press DOWN/F.RW and hold down to start a forward or reverse search. In Cd mode: press briefly to select the next or previous track;... -
Page 5: Power Supply
OVERVIEW ______________________________________________________ Power supply Mains operation Note: Check that the mains voltage on the type plate (on the bottom of the device) corresponds to your local mains supply. If this is not the case, contact your specialist dealer. Plug the mains cable supplied (in the battery compartment) into the »AC «... -
Page 6: Additional Information For Units Sold In The Uk
OVERVIEW ______________________________________________________ Additional information for units sold in the UK. Units sold in the UK are suitable for operation from a 240V ac, 50Hz mains supply. The range of multi-system receivers is built to work in most European countries. However, the mains plug and socket system for the UK differs from many European countries. -
Page 7: Care And Safety
CARE AND SAFETY ________________________________________ To ensure that this device provides you with long-term satisfaction and enjoyment, please observe the following instructions. This device is designed for the recording and playback of audio signals. Any other use is expressly prohibited. Protect the device, the CDs and cassettes from rain, moisture (dripping or splashing water), sand and heat. -
Page 8: General Functions
GENERAL FUNCTIONS __________________________________ Switching on and off Switch on the device with the required input source by moving the switch to the »CD RADIO« position. TAPE/OFF To switch off the device, move the »CD TAPE/OFF RADIO« switch to the »TAPE/OFF« position and turn off the tape drive if necessary. Selecting the input source Select the input source (CD, TAPE or RADIO) using »CD TAPE/OFF... -
Page 9: Automatic Station Search
RADIO MODE _________________________________________________ Automatic station search Select the frequency band (FM or MW) using »STOP/BAND«. Activate the station search by pressing »DOWN/F.RW « or »UP/F.FW « until the frequency display changes to rapid run-through. – The search stops when a programme is found. Manual station search To move the frequency forward in steps, briefly press »DOWN/F.RW... -
Page 10: Selecting The Cd Input Source
CD MODE ________________________________________________________ The device is suitable for music CDs displaying the logo shown here (CD-DA) and for CD-Rs and CD-RWs with audio data. When burning CD-R and CD-RWs with audio files, various problems may arise which could lead to interference in playback. This can be caused by faulty software or hardware settings or by the CD being used. -
Page 11: Selecting Another Track
CD MODE ________________________________________________________ Selecting another track During playback, keep pressing »DOWN/F.RW « or »UP/F.FW « until the number of the track you want to hear appears in the display. – Playback of the selected track starts automatically. Note: You can also select tracks in the stop position. However, you must then start playback of the track with »PLAY/PAUSE II«. -
Page 12: Adding Tracks
CD MODE ________________________________________________________ Creating a track memory You can create a track memory of up to 20 tracks for the current CD in any order you choose and then play them back in that sequence. A track may be stored more than once. Program is only possible in the stop position. -
Page 13: Tape Playback
TAPE MODE _____________________________________________________ Selecting the tape input source Move the »CD TAPE/OFF RADIO« switch to the »TAPE« position. Press » « to open the tape compartment. Insert a tape in the compartment with the open side facing down and the full reel on the right side. -
Page 14: Recording From The Radio
TAPE MODE _____________________________________________________ Recording from the radio Insert a tape with the protection tabs intact and find the desired tape position by pressing » « or » «. Move the »CD TAPE/OFF RADIO« switch to the »RADIO« position and select the radio station. -
Page 15: Cleaning The Tape Drive
INFORMATION _______________________________________________ Cleaning the tape drive To guarantee good recording and playback quality, clean the parts shown (1, 2, 3) after every 50 hours of use, or once a month. Open the tape compartment, moisten a cotton swab with alcohol or a special head-cleaning fluid and clean the idler (3), the capstan (2) and the magnetic heads (1). -
Page 16: Troubleshooting
INFORMATION _______________________________________________ Troubleshooting If a fault occurs, first refer to this information before you take the device for repair. If you are unable to rectify the fault using the information given here, contact your local deal- er or service specialist. Under no circumstances should you attempt to repair the radio recorder yourself, as this would invalidate the guarantee.
