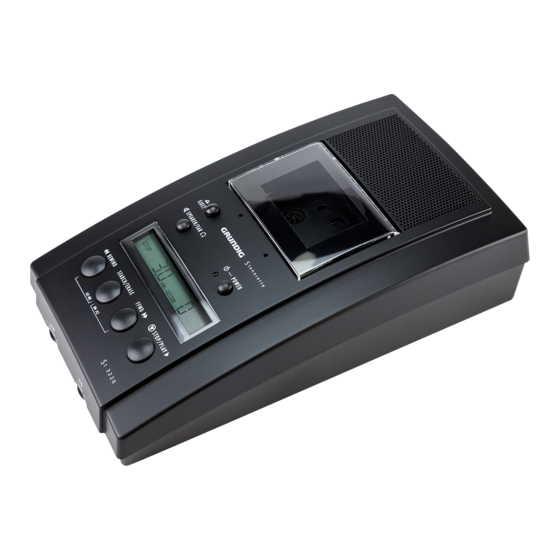

- Page 1 Stenorette St 3220 Steno-Cassette 30 ENGLISH www.grundig-gbs.com...
- Page 2 Stenorette St 3220 ________________________________________ ac 9V-10V HEADSET FOOT CONTROL ac 9V-10V HEADSET FOOT CONTROL FFWD STOP START ic 800 FX...
- Page 3 Stenorette St 3220 ____________________________________ ac 9V-10V ac 9V-10V HEADSET FOOT CONTROL HEADSET FOOT CONTROL t e n o - C a s s e t t e 3 0 E J E C T tenorette S P E A K E R / E A R...
- Page 4 Stenorette St 3220 ________________________________________ FFWD STOP START Made in Germany Fabriqué en Allemagne ic 800 FX...
-
Page 5: Table Of Contents
CONTENTS ____________________________________________________ Brief Instructions Steno-cassette compartment, counter reset Recording and control functions on the microphone Text marks Storing end-of-letter marks Playback Fast forward, rewind, search Erase Preparation Suitable location Mains unit 682 GB connection Turning the machine on and off Connecting accessories Information Display Recording Dictations... - Page 6 Fast forward and short rewind using the 536 foot control Search Function Care and Maintenance Housing Parts that come into contact with the tape Technical Data Mains unit 682 GB Desktop dictation and transcription machine Stenorette St 3220 Accessories Warranty, Service, Sales...
-
Page 7: Brief Instructions
BRIEF INSTRUCTIONS ____________________________________ Press the »POWER« button to turn the machine on and off. Steno-cassette compartment, counter reset In Stop position, press the »EJECT« button. – The cover opens slowly and the counter is reset to zero (0). Insert the steno-cassette with its open side and the labelling visible into the steno-cassette compartment. -
Page 8: Storing End-Of-Letter Marks
BRIEF INSTRUCTIONS ____________________________________ Storing end-of-letter marks Insert a recorded steno-cassette that has been rewound into the tape compartment. If the steno-cassette has not been removed from the compartment since turning the unit on, press the »EJECT« button to open the compartment and then close the compart- ment by hand. -
Page 9: Fast Forward, Rewind, Search
BRIEF INSTRUCTIONS ____________________________________ Fast forward, rewind, search Press the »FFWD « button on the Fast forward: device. Press the » REWIND« button on the device. Rewind: Stop: press the »STOP/PLAY« button. Search forward: press the »SEARCH/ERASE« button and »FFWD« button together. Search backward: press the »SEARCH/ERASE«... -
Page 10: Preparation
PREPARATION _______________________________________________ Suitable location Do not place the machine on a soft surface (tablecloth, pillow etc.) as this could block the convection vents on the bottom of the unit and result in overheating. Do not cover or insert any objects in the convection vents in the dictation machine's housing. -
Page 11: Mains Unit 682 Gb Connection
_______________________________________________ Mains unit 682 GB connection With mains unit 682 GB Warning! The mains unit is designed for use with the Grundig Stenorette St 3220 only. To connect the mains unit with the machine: push the ac 9V-10V connector (telephone type jack) into the socket at the back of the machine marked »ac 9 V-10 V~«. -
Page 12: Connecting Accessories
The features indicated by Grundig apply only when using original Grundig accessories. Defects due to the use of accessories which are not original Grundig accessories or which do not comply with the legal regulations or the corresponding standards lead automatically to the expiration of any guarantee rights. -
Page 13: Recording Dictations
RECORDING DICTATIONS ______________________________ Microphone recording sensitivity Select one of the three switch settings on the microphone: ı Private – I Normal – Conference. from microphone (dictation) Recording distance approximately 10 cm. The machine adjusts automatically to the volume of the dictation when recording. -
Page 14: Repeating Short Text Passages
RECORDING DICTATIONS ______________________________ Repeating short text passages Short rewind START Move the slide-switch into the » REW« position. – The tape is briefly rewound. – Then the machine switches back into playback mode. Resuming recording – Press the » « button. Tape end and tape end switch-off After a recording time of 29 minutes, the machine emits a sound sig- nal. -
Page 15: Text Marks
– When releasing the button, an end-of-letter mark will be recorded. – The letter number in the display is increased by 1. The end-of-letter marks will be recognized by all Grundig dictation machines with a search function. See chapter “Search Function”. Index mark... -
Page 16: Dictation Count
DICTATION COUNT ________________________________________ Letter quantity, length and remaining dictation time The end of the letter must be marked during dictation in order to register on the display. Insert a recorded steno-cassette that has been rewound into the tape compartment. If the steno-cassette has not been removed from the compartment since turning the unit on, press th »EJECT «... -
Page 17: How To Use The Microphone
HOW TO USE THE MICROPHONE __________________ STOP To start playback move slide-switch to » START«. START – The following appears in the display: LETTER PLAY To stop playback move slide-switch to » STOP«. STOP START – The following appears in the display: STOP LETTER Short rewind... -
Page 18: How To Use The 536 Foot Control
HOW TO USE THE 536 FOOT CONTROL ________ Switch options: right pedal = start middle pedal = fast forward left pedal = short rewind Starting and stopping using the 536 foot control You can use the start pedal (right pedal) to either lock or scan. - Page 19 HOW TO USE THE 536 FOOT CONTROL ________ You can alter the short rewind time with the “BACKSPACE” rotary adjuster in the base of the machine. In the “ + ” position (maximum), the tape is rewound as long as the pedal is held down. –...
-
Page 20: Search Function
SEARCH FUNCTION _______________________________________ The search function automatically locates marks set at the end of letters during recording. Forward search Press the »SEARCH/ERASE « button and the » FFWD« button down together. – The following appears in the display: SEARCH FFWD LETTER Backward search Press the »SEARCH/ERASE... -
Page 21: Care And Maintenance
Cleaning parts that come into contact with the tape: Rubber pressure roller Capstan shaft Recording head Warning! Repair note Use only original replacement parts. The power cable may be replaced only by a Grundig authorised repair service. Please contact your dealer if malfunctions occur. -
Page 22: Technical Data
Mains unit 682 GB Mains voltage for mains unit 682 GB: 230 V (± 10%), ~ 50 Hz – 60 Hz thermostatic fuse (primary) Fuse: Desktop dictation and transcription machine Stenorette St 3220 steno-cassette 30 Tape: capstan Drive system: 2.38 cm/s;... -
Page 23: Accessories
ACCESSORIES ________________________________________________ Accessories (not included in delivery) that enhance the capabilities of your machine: used to erase the recordings of an entire Instant eraser 616 steno-cassette 30. dual speaker system. Headset 561, dual speaker system (under chin). Swingphone 562, consists of an earclip and speaker. Earclip/sound-module 556 for use with the 556 sound-module Stethofork headset 514... -
Page 24: Warranty, Service, Sales
Please contact your supplier if you wish to register the guarantee of this product or make a claim. If there is no specialized dealer in your region, please contact one of the following addresses. Grundig Business Systems (UK) Ltd. Suite 5R14 (5th Floor Red Zone) Elstree Business Centre Elstree Way... - Page 25 Grundig Business Systems GmbH Weiherstraße 10 D - 95448 Bayreuth Germany 36117 942 0201...
