Twisted-Pair Cable for Switch (MDI-X) to
Computer (MDI) Network Connection
To connect PCs or other MDI network devices to these ports, use a
"straight-through" cable.
Connector "A"
Note
Pins 1 and 2 on connector "A" must be wired as a twisted
pair to pins 1 and 2 on connector "B".
Pins 3 and 6 on connector "A" must be wired as a twisted
pair to pins 3 and 6 on connector "B".
Pins 4, 5, 7, and 8 are not used in this application, although
they may be wired in the cable.

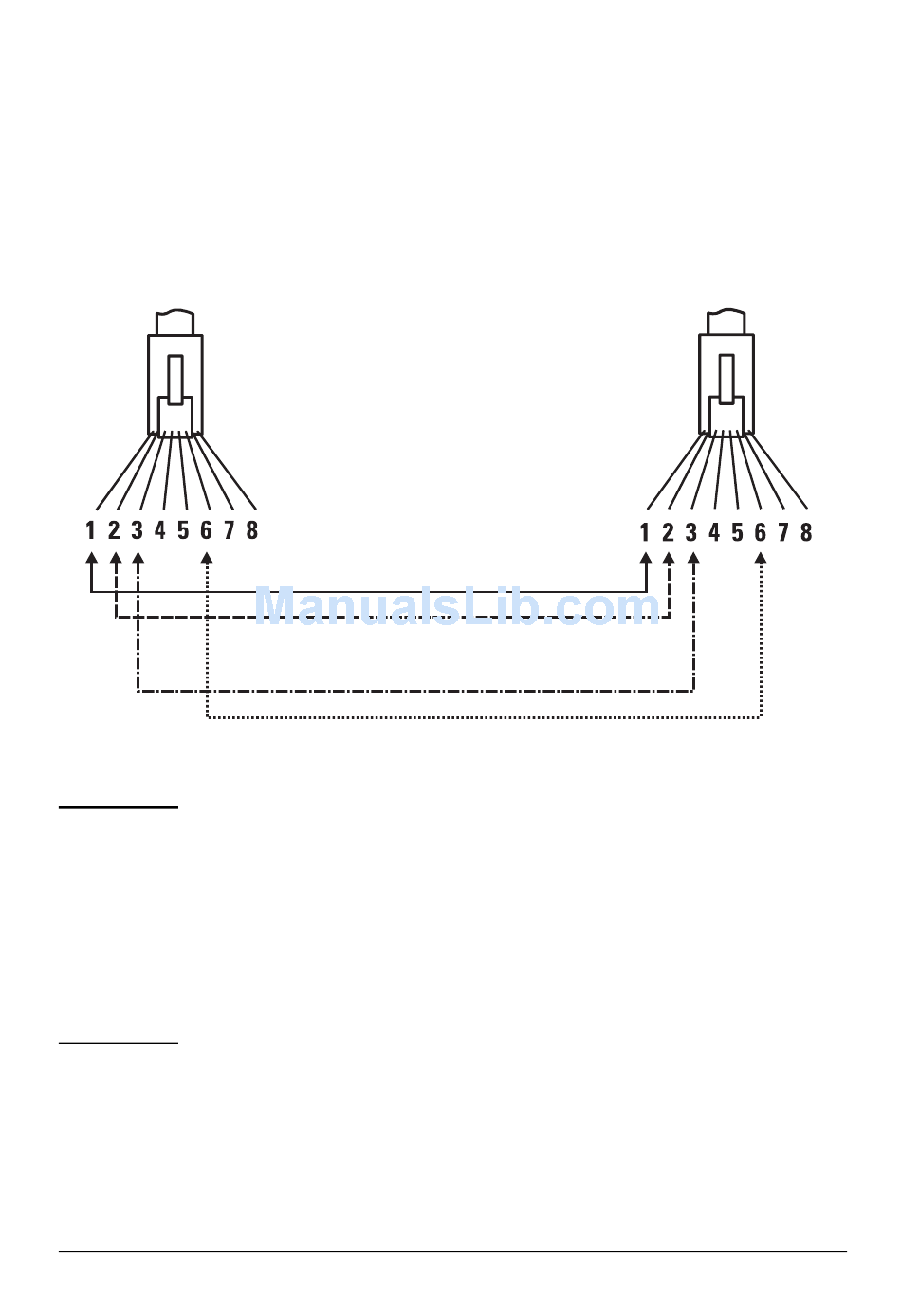

Twisted-Pair Cable/Connector Pin-Outs
Straight-Through Cable
white/orange
orange/white
white/green
green/white
Cables and Connectors
Connector "B"
B-3
