H P
P r o C u r v e
S w i t c h e s a n d H u b s

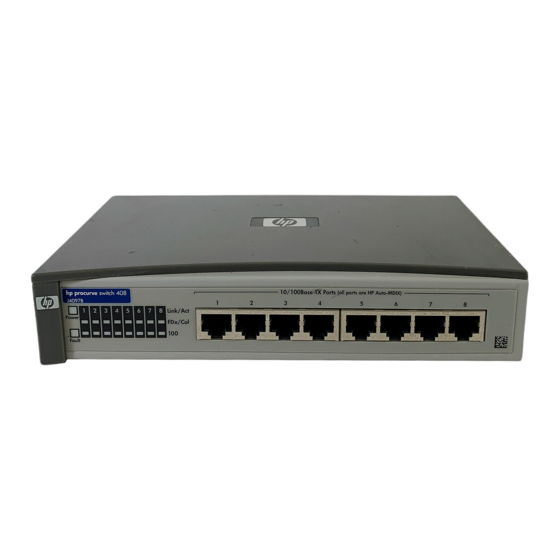

HP ProCurve Switch 408

Installation Guide

L e s s W o r k , M o r e N e t w o r k
h t t p : / / w w w . h p . c o m / g o / p r o c u r v e

Advertisement

Table of Contents
loading

Summary of Contents for HP ProCurve 408

  • Page 1: Installation Guide

    P r o C u r v e S w i t c h e s a n d H u b s HP ProCurve Switch 408 Installation Guide L e s s W o r k , M o r e N e t w o r k...
  • Page 3 HP ProCurve Switch 408 Installation Guide...
  • Page 4 Warranty A copy of the specific warranty terms applicable to your Hewlett-Packard prod- ucts and replacement parts can be obtained from your HP Sales and Service Office or authorized dealer. Safety Before installing and operating this product, please read the “Installation Precautions”...
  • Page 5: Table Of Contents

    Contents 1 Introducing the Switch 408 Front of the Switch ....... . . 1-2 Network Ports .
  • Page 6 Testing End-to-End Network Communications ..3-8 HP Customer Support Services ..... 3-8 A Specifications Physical .
  • Page 7: Safety And Emc Regulatory Statements

    C Safety and EMC Regulatory Statements Safety Information ....... . . C-1 EMC Regulatory Statements .
  • Page 9: Introducing The Switch 408

    Introducing the Switch 408 The HP ProCurve Switch 408 is a multiport switch that can be used to build high-performance switched workgroup networks. This switch is a store-and-forward device that offers low latency for high- speed networking. +3 3UR&XUYH 6ZLWFK  +3 -$ Throughout this manual, the name of this switch will be abbreviated as the Switch 408.
  • Page 10: Front Of The Switch

    Introducing the Switch 408 Front of the Switch Front of the Switch Power Fault 10/100Base-TX RJ-45 ports 100/Fdx LEDs Select Port 8 MDI-X/MDI Link, Act and 100/Fdx button Select button LEDs for each port Network Ports The switch has 8 auto-sensing 10/100Base-TX ports with RJ-45 connectors.
  • Page 11: Leds

    Introducing the Switch 408 Front of the Switch LEDs Table 1-1. Switch LEDs Switch LEDs State Meaning The switch is receiving power. (green) The switch is NOT receiving power. Fault The normal state; indicates that there are no fault (orange) conditions on the switch.
  • Page 12: 100/Fdx Select Button

    Introducing the Switch 408 Front of the Switch 100/Fdx Select Button To optimize the amount of information that can be displayed for each of the switch ports without overwhelming you with LEDs, the Switch 408 uses a dual-function 100/Fdx LED for each port. The operation of this LED is controlled by the 100/Fdx Select button situated at the end of the row of LEDs.
  • Page 13: Back Of The Switch

    AC power adapter is plugged in to an active power source and to the switch. Caution Use only the AC power adapter supplied with the switch. Use of other adapters, including those meant for other HP network products, may result in damage to the equipment.
  • Page 14: Features

    Introducing the Switch 408 Features Features The features of the Switch 408 include: 8 auto-sensing 10/100Base-TX RJ-45 ports—all ports can sense the connection speed, 10 Mbps or 100 Mbps, and automatically operate at that speed one port includes an MDI-X/MDI selection button plug-and-play networking—all ports are enabled—just connect the network cables to active network devices and your switched network is operational...
  • Page 15 Introducing the Switch 408 Switch Operation Overview Forwarding, Filtering, Flooding. When the switch receives a packet, it determines the destination address, and looks for the address in the address table. Based on the port location of that address, the switch then determines whether to forward, filter-out, or flood the packet.
  • Page 16: Simultaneous Network Communications

    Introducing the Switch 408 Switch Operation Overview Simultaneous Network Communications As a part of the traffic isolation benefits provided by the Switch 408 address table operation, the switch enhances network performance because it can conduct multiple, simultaneous network connections. Instead of sharing the network bandwidth, as in connections to a hub, each connection has its own 10 Mbps or 100 Mbps bandwidth.
  • Page 17: Installing The Switch 408

    Installing the Switch 408 The HP ProCurve Switch 408 is easy to install. It comes with four rubber feet that can be attached so the switch can be securely located on any level surface (for example, a table or shelf). A mounting kit...
  • Page 18: Installation Procedures

    Installing the Switch 408 Installation Procedures Installation Procedures Summary Follow these easy steps to install your switch. The rest of this chapter provides details on these steps. Prepare the installation site. Make sure of the following: • the network cabling is the correct type and length. See page 2-5.
  • Page 19: Installation Precautions

    Installing the Switch 408 Installation Procedures Installation Precautions: Follow these precautions when installing your Switch 408. Cautions Make sure that the power source circuits are properly grounded, then use the power adapter supplied with the switch to connect it to the power source. When installing the switch, since the unit does not have an On/Off power switch, an AC power outlet must be located near the switch and should be easily accessible...
  • Page 20 Installing the Switch 408 Installation Procedures Connect no devices that have a fixed full-duplex configuration. Because the switch 408 complies with the IEEE 802.3u standard, if a device connected to the switch has a fixed configuration of full duplex, the device will not connect correctly to the switch.
  • Page 21: Prepare The Installation Site

    Installing the Switch 408 Installation Procedures 1. Prepare the Installation Site Cabling Infrastructure - Make sure that the cabling infrastruc- ture meets the necessary network specifications. For connec- tions to end nodes (computers, servers, printers and other peripherals), use “straight-through” cables. For connections to hubs or other switches, use “crossover”...
  • Page 22: Verify The Switch Passes Its Self Test

    Use only the AC power adapter supplied with the switch. Use of other adapters, including those meant for other HP network products, may result in damage to the equipment. Check the LEDs on the switch. The LED behavior is described on...
  • Page 23: Led Behavior

    Installing the Switch 408 Installation Procedures Switch port LEDs Power and Fault LEDs When the switch is powered on, it performs its diagnostic self test. The self test takes approximately 3 seconds to complete. LED Behavior: During the self test: •...
  • Page 24: Mount The Switch

    Installing the Switch 408 Installation Procedures 3. Mount the Switch After you have verified that the switch passes its self test, you are ready to mount the switch in a stable location. The Switch 408 can be mounted in these ways: on a horizontal surface in a rack or cabinet, or on a wall (requires optional bracket kit) Horizontal Surface Mounting...
  • Page 25: Connect The Switch To A Power Source

    Installing the Switch 408 Installation Procedures 4. Connect the Switch to a Power Source Plug the included AC power adapter into the switch’s power connector and into a nearby AC power source. Re-check the LEDs during self test. See “LED Behavior” on page 2-7.
  • Page 26: Sample Network Topologies

    Installing the Switch 408 Sample Network Topologies Sample Network Topologies This section shows you two sample network topologies in which the Switch 408 is implemented. Note Make sure the network into which you are installing the Switch 408 has a valid topology: there should be no loops in the data paths connected to the switch, and all twisted- pair connections should be no more than 100 meters.
  • Page 27: As A Segment Switch

    Installing the Switch 408 Sample Network Topologies As a Segment Switch 100 Mbps connection through category 5 twisted-pair “straight-through” cable Server 100Base-TX full-duplex Switch 408 connection to backbone switch Ethernet twisted-pair Hubs “crossover” cables PCs, printers, and local twisted-pair servers “straight-through”...
  • Page 28 Installing the Switch 408 Sample Network Topologies The connections between the switch and the MDI-X ports on the hubs are through “crossover” twisted-pair cables. If the hubs have MDI ports, you can connect to them through “straight-through” cables. The 100 Mbps connection to the server is through category 5 “straight- through”...
  • Page 29: Troubleshooting

    (page 3-1) diagnosing with the LEDs (page 3-4) hardware diagnostic tests (page 3-7) HP Customer Support Services (page 3-8) Basic Troubleshooting Tips Most problems are caused by the following situations: Incorrect switch-to-switch or switch-to-hub connections. If...
  • Page 30 Troubleshooting Basic Troubleshooting Tips MDI), use straight-through cable. See appendix B, “Cables and Connectors” for pinouts and correct cable wiring for crossover and straight-through twisted-pair cables. Connecting to devices with a fixed full-duplex configura- tion. The Switch 408 ports are set to auto-negotiate the link characteristics.
  • Page 31 Refer to the Network Design Guide for topology configuration guidelines. This guide can be found online at the HP World Wide Web site for networking products, http:// www.hp.com/go/procurve. You can find it quickly by searching for “Network Design Guide”.
  • Page 32: Diagnosing With The Leds

    Troubleshooting Diagnosing With the LEDs Diagnosing With the LEDs Table 3-1 shows LED patterns on the switch that indicate problem conditions. Check in the table for the LED pattern that you see on your switch. Refer to the corresponding diagnostic tip on the next few pages. Table 3-1.
  • Page 33 If this condition persists, the switch’s power adapter may have failed. Call your HP-authorized LAN dealer, or use the electronic support services from HP to get assistance. See the Customer Support/Warranty booklet for more information. A switch Try power cycling the switch.
  • Page 34 Troubleshooting Diagnosing With the LEDs Number Problem Solution The network Try the following procedures: connection is • For the indicated port, verify that both ends of not working the cabling, at the switch and the connected properly. device, are secure. •...
  • Page 35: Hardware Diagnostic Tests

    To verify that your cable is compatible with these standards, use a qualified cable test device. HP also offers a wire testing service. Contact your HP-authorized LAN dealer or your local HP sales office for more information.
  • Page 36: Testing End-To-End Network Communications

    See the Customer Support/Warranty booklet that came with your switch for information on how to use these services to get technical support. The HP networking products World Wide Web site, http://www.hp.com/go/procurve also provides up-to-date support information.
  • Page 37: Physical

    Specifications Physical Width: 19.9 cm (7.8 in) Depth: 12.1 cm (4.8 in) Height: 4.0 cm (1.6 in) Weight : 0.72 kg (1.59 lbs) Electrical DC voltage: 19 volts Maximum current: 0.55 A Environmental Operating Non-Operating Temperature: 0°C to 55°C (32°F to 131°F) -40°C to 70°C (-40°F to 158°F) Relative humidity: 10% to 90% at 40°C (104°F)
  • Page 38: Connectors

    Specifications Connectors The 10/100 Mbps RJ-45 twisted-pair ports are compatible with the IEEE 802.3u 100Base-TX and IEEE 802.3 Type 10Base-T stan- dards. Safety The Switch 408 complies with these safety standards: EN60950 / IEC 950 CSA/NRTL (CSA 22.2 No. 950 & UL 1950)
  • Page 39: Cables And Connectors

    Switch 408. Note Incorrectly wired cabling is the most common cause of problems for LAN communications. HP recommends that you work with a qualified LAN cable installer for assistance with your cabling requirements.
  • Page 40 Cables and Connectors Twisted-Pair Cable/Connector Pin-Outs These additional rules apply: All twisted-pair wires used must be twisted through the entire length of the cable. The wiring sequence must conform to the ANSI/TIA/EIA-568-B cable specification. See “Twisted-Pair Cable Pin Assignments” later in this appendix for a listing of the signals used on each pin.
  • Page 41: Twisted-Pair Cable For Switch (Mdi-X) To Computer (Mdi) Network Connection

    Cables and Connectors Twisted-Pair Cable/Connector Pin-Outs Twisted-Pair Cable for Switch (MDI-X) to Computer (MDI) Network Connection To connect PCs or other MDI network devices to these ports, use a “straight-through” cable. Connector “A” Connector “B” Straight-Through Cable white/orange orange/white white/green green/white Note Pins 1 and 2 on connector “A”...
  • Page 42: Twisted-Pair Cable For Switch (Mdi-X) To Hub Or Switch (Mdi-X) Network Connection

    Cables and Connectors Twisted-Pair Cable/Connector Pin-Outs Twisted-Pair Cable for Switch (MDI-X) to Hub or Switch (MDI-X) Network Connection To connect hubs or switches or other MDI-X network devices to these ports, use a “crossover” cable. Connector “A” Connector “B” Crossover Cable white/orange orange/white white/green...
  • Page 43: Twisted-Pair Cable Pin Assignments

    Cables and Connectors Twisted-Pair Cable/Connector Pin-Outs Twisted-Pair Cable Pin Assignments Twisted-Pair Straight-Through Cable Switch End (MDI-X) Computer, Transceiver, or Other MDI Port End Signal Pins Pins Signal receive + transmit + receive - transmit - transmit + receive + transmit - receive - Twisted-Pair Crossover Cable Switch End (MDI-X)
  • Page 45: Safety Information

    Safety and EMC Regulatory Statements Safety Information Documentation reference symbol. If the product is marked with this symbol, refer to the product documentation to get more information about the product. WARNING A WARNING in the manual denotes a hazard that can cause injury or death.
  • Page 46 Safety and EMC Regulatory Statements Safety Information LAN cables may occasionally be subject to hazardous tran- sient voltages (such as lightning or disturbances in the electrical utilities power grid). Handle exposed metal com- ponents of the network with caution. Servicing There are no user-serviceable parts inside these products.
