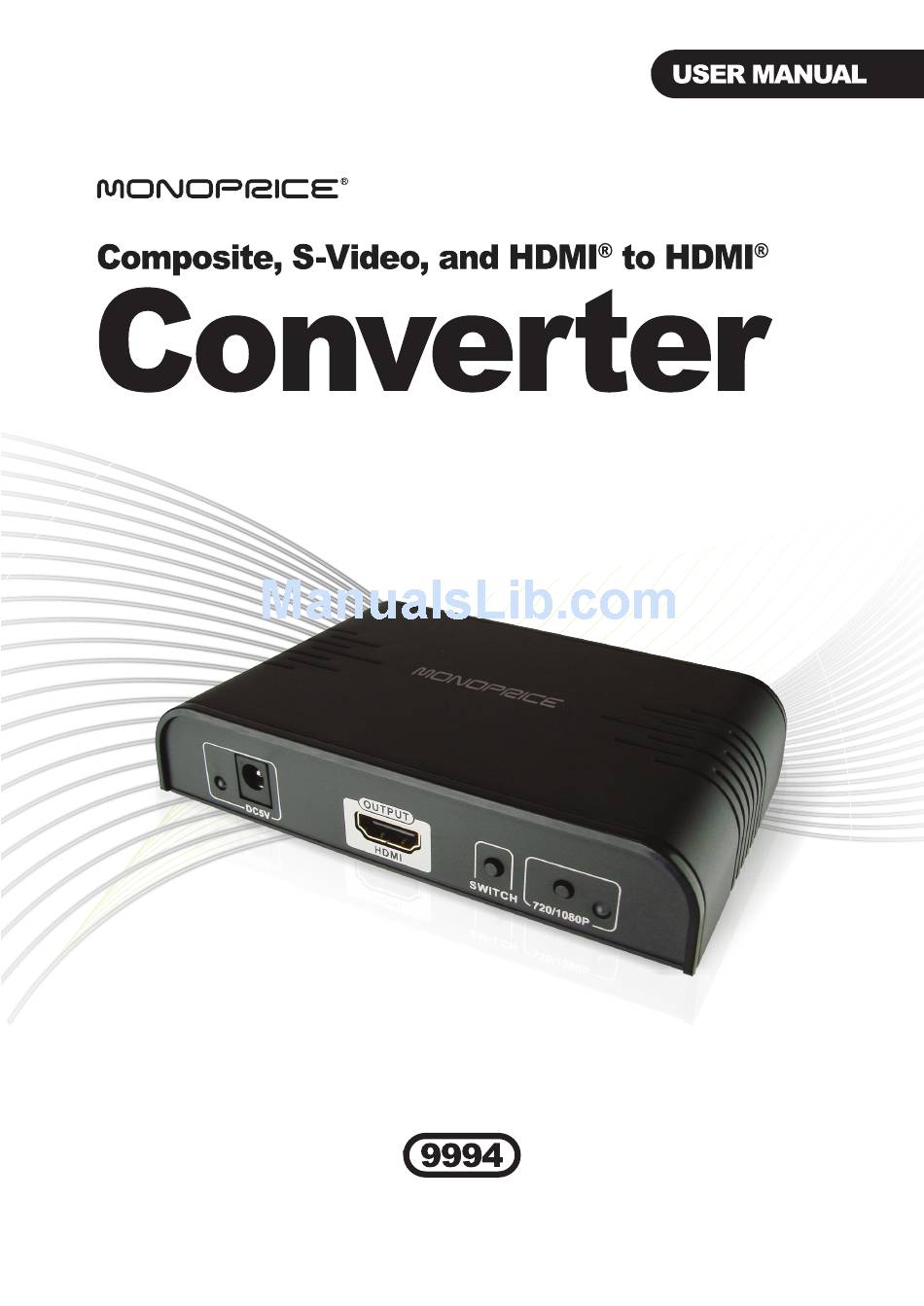

Composite (CVBS)/S-Video and HDMI to HDMI Converter USER MANUAL IMPORTANT SAFETY INSTRUCTIONS Prior to using this device, please read all the instructions carefully, paying close attention to the following safety precautions: ● Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. - Page 3 4. OPERATION 1. Turn on the source and display devices. Start video playback of source material on the source device. 2. If you do not see video, press the "Switch" to change the video input to the appropriate type. 3. Press the "720p/1080p" button as needed to set the appropriate video output resolution for your display device.
- Page 4 6. SPECIFICATIONS HDMI input resolution 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, supported 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz HDMI graphics card input 640x480@60Hz,800x600@60Hz,1024x768@60Hz, resolution supported 1280x720@60Hz,1280x768@60Hz,1280x1024@60Hz, 1360x768@60Hz,1366x768@60Hz,1400x1050@60Hz, 1440x900@60Hz,1680x1050@60Hz,1920x1080@60Hz CVBS input Detects NTSC/PAL automatically: 1.0Vp-p Impedance: 75Ω S-Video input Detects NTSC/PAL automatically Y:1.0Vp-p Impedance 75Ω C:0.6Vp-p Impedance: 75Ω HDMI DDC signal 5 V p -p (TTL) HDMI TMDS signal...
