Blackbird™ by Monoprice™
8K60 1x2 Video Splitter with HDMI® plus Audio Extraction
44436
P/N
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Blackbird and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Monoprice Blackbird

Summary of Contents for Monoprice Blackbird

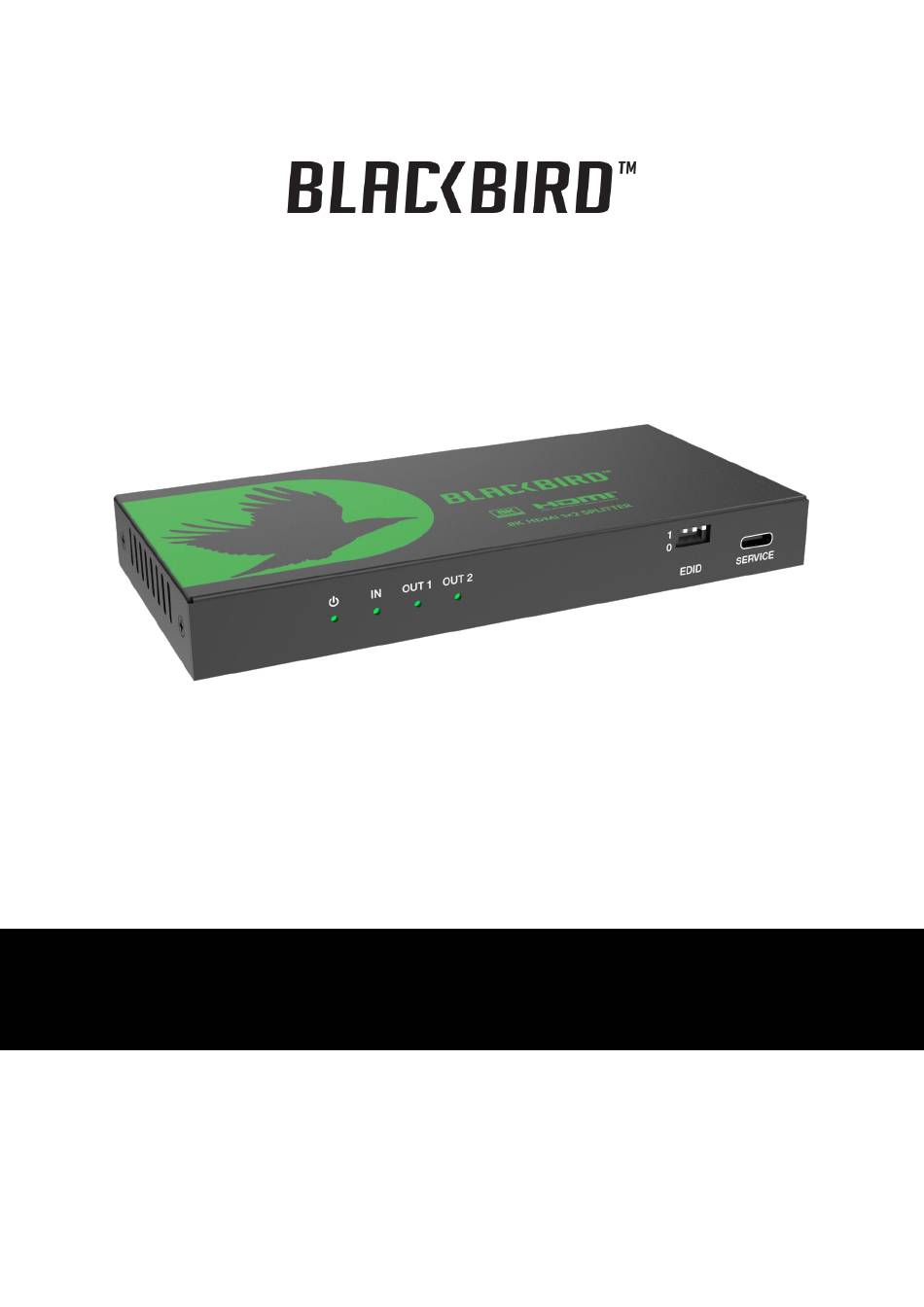

  • Page 1 Blackbird™ by Monoprice™ 8K60 1x2 Video Splitter with HDMI® plus Audio Extraction 44436 User Manual...

  • Page 2: Safety Warnings And Guidelines

    THANK YOU FOR PURCHASING THIS PRODUCT For optimum performance and safety, please read these instructions carefully before connecting, operating, or adjusting this product. SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.

  • Page 3: Table Of Contents

    Never unplug the unit by pulling on the power cord. Always grasp the connector head or adapter • body. Ensure that power is turned off and disconnected before making any electrical connections. • Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or detergents. For •...

  • Page 4: Features

    PACKAGE CONTENTS Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact Monoprice™ Customer Service for a replacement. 1x 8K60 1x2 Video Splitter with HDMI •...

  • Page 5: Product Overview

    PRODUCT OVERVIEW Front Panel Rear Panel Name Function Description POWER LED The power LED lights in red when the device is working. When the HDMI IN port connects to an active source device, the IN LED green LED will be on. When the HDMI OUT 1/2 port connects to a display device and OUT LED (1~2) outputs signal, the corresponding green LED will be on.

  • Page 6: Auto Downscaling & Auto Converting

    OPTICAL Optical fiber audio output port Analog audio output port DC 5V DC 5V/2A power input port AUTO DOWNSCALING & AUTO CONVERTING This 1x2 splitter supports auto downscaling and auto converting on all outputs. Before downscaling, it will compare all the EDID of the connected display devices and select the minimum resolution to downscale and output.
  • Page 7 Note: If the source resolution is downscaled and converted to 1080P DVI according to the EDID of display devices, it will be output without sound on TV. Downscaling will not work in the following conditions: The input source is 8K DSC format. 2.

  • Page 8: Application Example

    APPLICATION EXAMPLE SPECIFICATIONS Technical HDMI Compliance HDMI 2.1 HDCP Compliance HDCP 2.3, HDCP 1.4 Video Bandwidth 48Gbps FRL and 18Gbps TMDS Up to 8K@60Hz 4:2:0 12-bit, 4K@120Hz 4:4:4 12-bit Video Resolution Color Depth 8/10/12-bit Color Space RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 HDR, HDR10, HDR10+, Dolby Vision, HLG...
  • Page 9 HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Audio Formats Audio de-embedding output: Optical: LPCM/Dolby/DTS 5.1CH Analog: LPCM 2CH IEC 61000-4-2: ESD Protection ±8kV (Air-gap discharge) & ±4kV (Contact discharge) Connection Input 1 x HDMI IN [Type A, 19-pin female]...

  • Page 10: Customer Service

    TECHNICAL SUPPORT Monoprice™ is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates.

  • Page 11: Notice For Ised Canada

    Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Monoprice™ and all Monoprice logos are trademarks of Monoprice Inc. HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
  • Page 12 Product pictures are for reference only. Brea, CA 92821 – USA Specifications described herein are subject to change without prior notification. www.monoprice.com Monoprice™ and all Monoprice logos are trademarks of Monoprice Inc. Copyright © 2024 Monoprice, Inc. All rights reserved.
