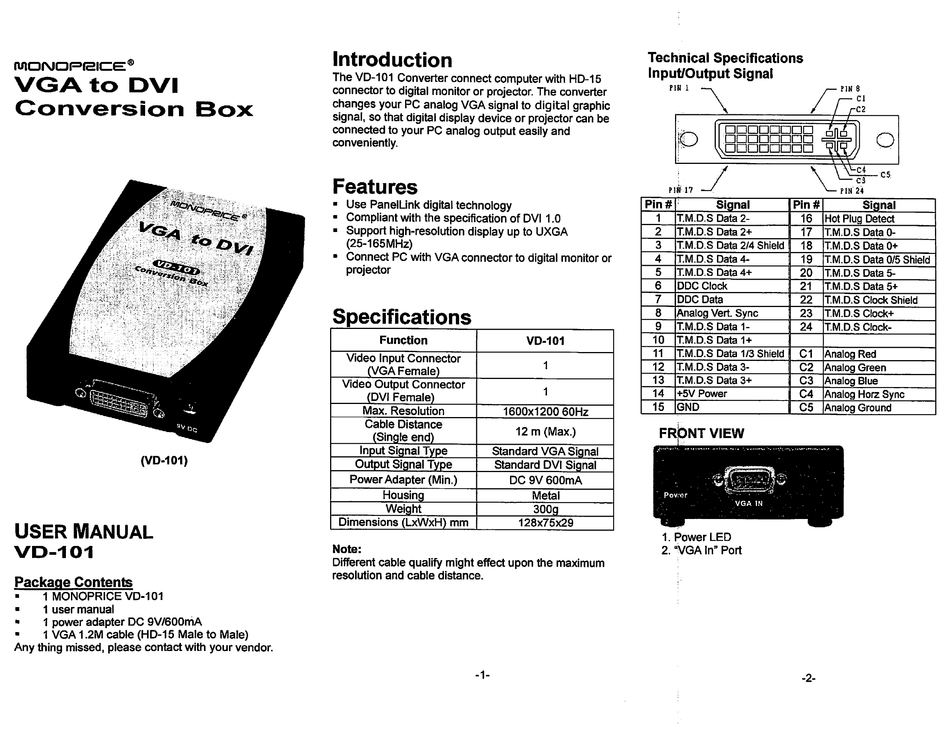

Monoprice VD-101 User Manual

VGA to DVI
Conversion
(VD-101)
USER MANUAL
VD-101
Package Contents
1 MONOPRICE VD-101
- 1 user manual
" 1 power adapter DC 9V/600mA
1 VGA 1.2M cable (HD-15 Male to Male)
Any thing missed, please contact with your vendor.
Introduction

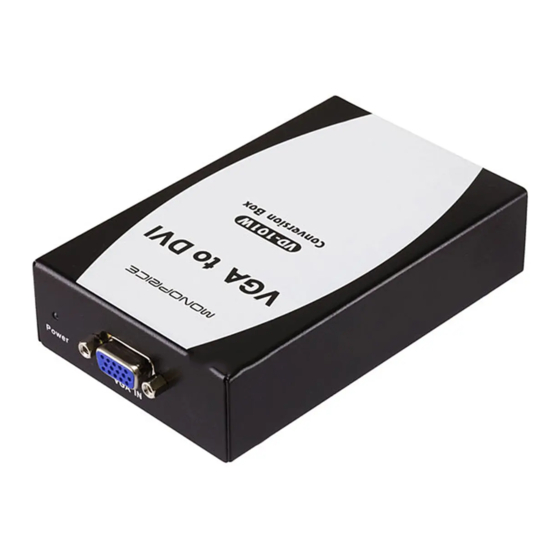

The VD-101 Converter connect computer with HD-15
connector to digital monitor or projector. The converter
changes your PC analog VGA signal to digital graphic
signal, so that digital display device or projector can be
connected to your PC analog output easily and
conveniently.
Features
■ Use PanelLink digital technology
■ Compliant with the specification of DV11.0
■ Support high-resolution display up to UXGA
(25-165MHz)
■ Connect PC with VGA connector to digital monitor or
projector
Specifications
Technical Specifications
Input/Output Signal
Note:
Different cable qualify might effect upon the maximum
resolution and cable distance.
PIN 1
1. Power LED
2. "VGA In" Port
-1-
-2-
