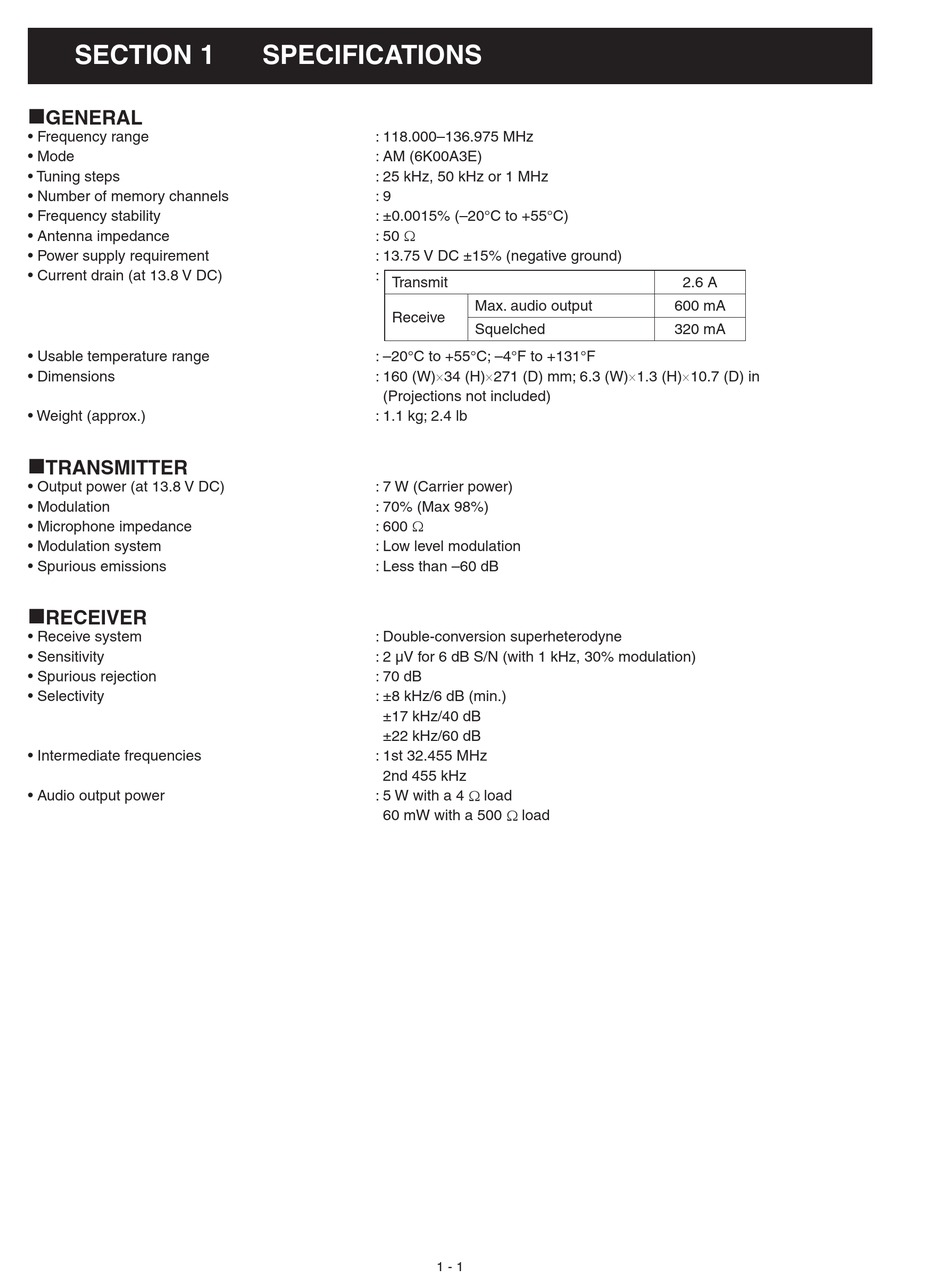

Specifications - Icom IC-A200 Service Manual

SECTION 1
 GENERAL
• Frequency range
• Mode
• Tuning steps
• Number of memory channels
• Frequency stability
• Antenna impedance
• Power supply requirement
• Current drain (at 13.8 V DC)
• Usable temperature range
• Dimensions
• Weight (approx.)
 TRANSMITTER
• Output power (at 13.8 V DC)
• Modulation
• Microphone impedance
• Modulation system
• Spurious emissions
 RECEIVER
• Receive system
• Sensitivity
• Spurious rejection
• Selectivity
• Intermediate frequencies
• Audio output power

SPECIFICATIONS

: 118.000–136.975 MHz
: AM (6K00A3E)
: 25 kHz, 50 kHz or 1 MHz
: 9
: ±0.0015% (–20°C to +55°C)
: 50 Ω
: 13.75 V DC ±15% (negative ground)
:
Transmit
Receive
: –20°C to +55°C; –4°F to +131°F
: 160 (W)×34 (H)×271 (D) mm; 6.3 (W)×1.3 (H)×10.7 (D) in
(Projections not included)
: 1.1 kg; 2.4 lb
: 7 W (Carrier power)
: 70% (Max 98%)
: 600 Ω
: Low level modulation
: Less than –60 dB
: Double-conversion superheterodyne
: 2 µV for 6 dB S/N (with 1 kHz, 30% modulation)
: 70 dB
: ±8 kHz/6 dB (min.)
±17 kHz/40 dB
±22 kHz/60 dB
: 1st 32.455 MHz
2nd 455 kHz
: 5 W with a 4 Ω load
60 mW with a 500 Ω load
1 - 1
Max. audio output
Squelched
2.6 A
600 mA
320 mA
