AUDIO WIRING
Use #24 AWG wires for connectors.
 MEMORY CHANNEL AND FREQUENCY
EXCHANGE SWITCHES
For the memory channel switch and frequency exchange
switch, use a 2-position rocker switch or 2 separate
momentary push switches.
POWER CABLE WIRING
Use 2 pairs of #18 AWG wires for power and power
grounding wiring.
• Circuit breaker
To prevent physical damage, a 10 A circuit breaker
be installed in the aircraft. Mount the circuit breaker in the
aircraft breaker panel or instrument panel to ensure easy
access during flight.
• Ground
The transceiver power ground is the airframe ground.
• jumpers
MUST
Pins 11, M, P, 13
#20 wires or thicker.

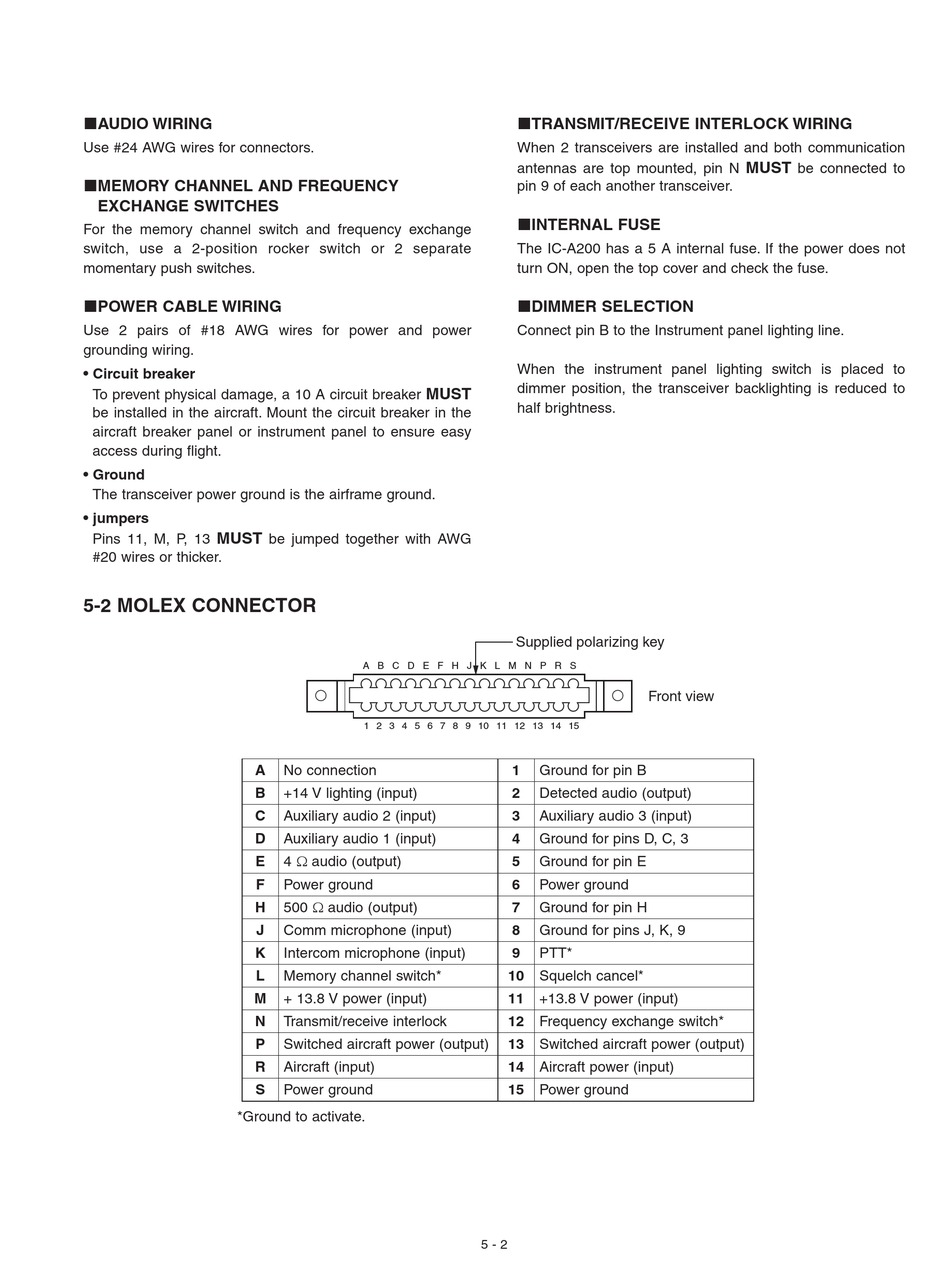

5-2 MOLEX CONNECTOR

A
B
C
D
E
F
H
J
K
L
M
N
P
R
S
*Ground to activate.
MUST
be jumped together with AWG
� � � � � � � � � � � �
� � � � � � � � � �� �� �� �� �� ��
No connection
+14 V lighting (input)
Auxiliary audio 2 (input)
Auxiliary audio 1 (input)
4 Ω audio (output)
Power ground
500 Ω audio (output)
Comm microphone (input)
Intercom microphone (input)
Memory channel switch*
+ 13.8 V power (input)
Transmit/receive interlock
Switched aircraft power (output)
Aircraft (input)
Power ground
TRANSMIT/RECEIVE INTERLOCK WIRING
When 2 transceivers are installed and both communication
antennas are top mounted, pin N
pin 9 of each another transceiver.
INTERNAL FUSE
The IC-A200 has a 5 A internal fuse. If the power does not
turn ON, open the top cover and check the fuse.
DIMMER SELECTION
Connect pin B to the Instrument panel lighting line.
When the instrument panel lighting switch is placed to
dimmer position, the transceiver backlighting is reduced to
half brightness.
�������� ���������� ���
� � �
����� ����
1 Ground for pin B
2 Detected audio (output)
3 Auxiliary audio 3 (input)
4 Ground for pins D, C, 3
5 Ground for pin E
6 Power ground
7
Ground for pin H
8
Ground for pins J, K, 9
9
PTT*
10
Squelch cancel*
11
+13.8 V power (input)
12 Frequency exchange switch*
13 Switched aircraft power (output)
14 Aircraft power (input)
15 Power ground
5 - 2
MUST
be connected to
