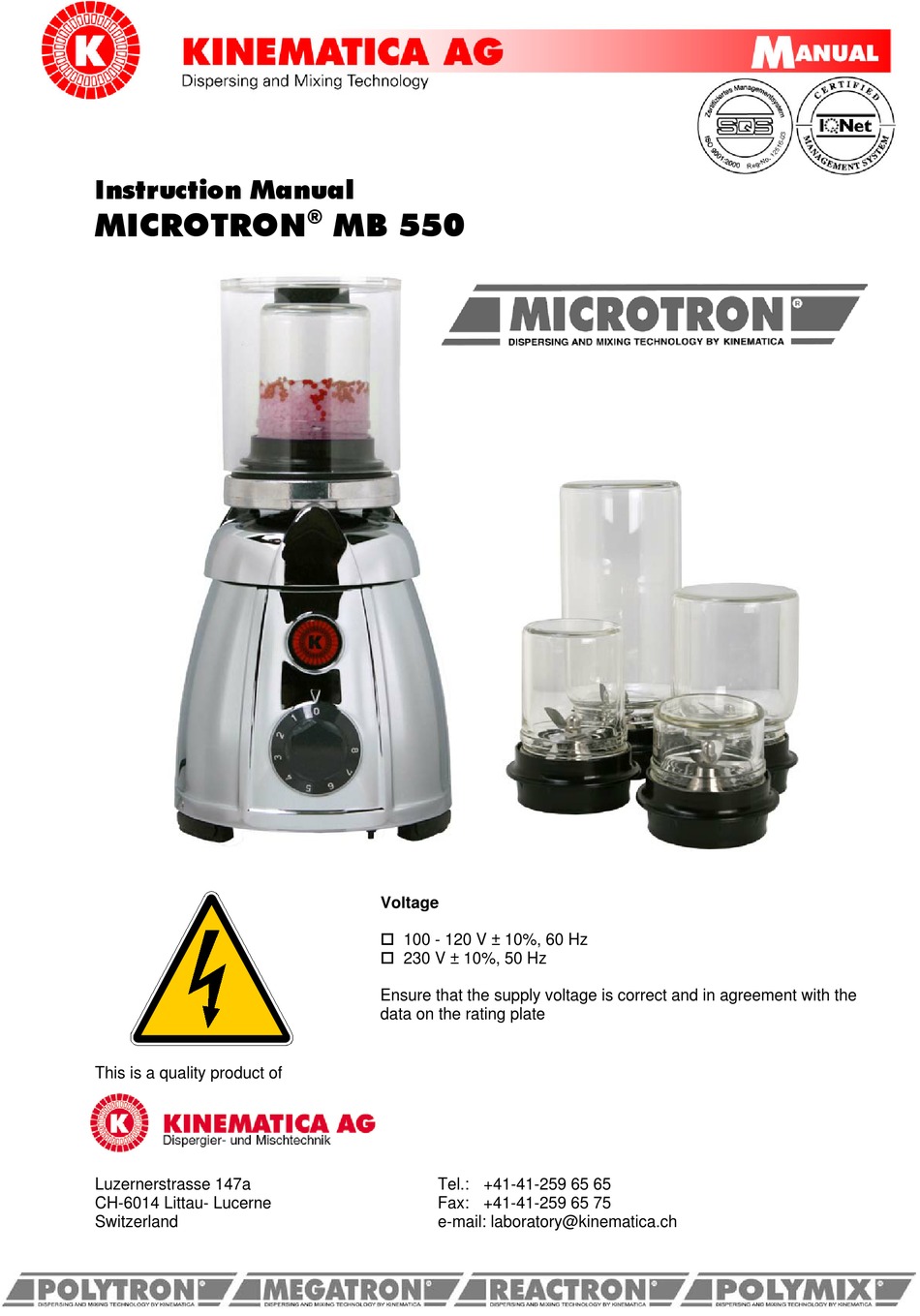

Instruction Manual
MICROTRON
This is a quality product of
Luzernerstrasse 147a
CH-6014 Littau- Lucerne
Switzerland
®
MB 550
Voltage
100 - 120 V ± 10%, 60 Hz
230 V ± 10%, 50 Hz
Ensure that the supply voltage is correct and in agreement with the
data on the rating plate
Tel.: +41-41-259 65 65
Fax: +41-41-259 65 75
e-mail: laboratory@kinematica.ch
Advertisement
Table of Contents
Related Manuals for Kinematica MICROTRON MB 550
Summary of Contents for Kinematica MICROTRON MB 550
- Page 1 230 V ± 10%, 50 Hz Ensure that the supply voltage is correct and in agreement with the data on the rating plate This is a quality product of Luzernerstrasse 147a Tel.: +41-41-259 65 65 CH-6014 Littau- Lucerne Fax: +41-41-259 65 75 Switzerland e-mail: laboratory@kinematica.ch...
-
Page 2: Table Of Contents
Table of contents Chapter Topic Page Introduction Operating instructions Range of validity Target Audience Organisational matters Location of the operating instructions Manufacturer and contact address Safety tips Uses Machine description Technical data Electrical connection Putting into operation Operating instructions Safety features and motor protection Cleaning Maintenance Troubleshooting... -
Page 3: Introduction
KINEMATICA AG is a specialist manufacturer of machines and equipment for dispersion and mixing technology. An important objective of these operating instructions is to fully inform you, the user, about the correct and safe use of our equipment. -
Page 4: Range Of Validity
Range of validity The information in these operating instructions relates to the MICROTRON® identified as follows: Manufacturer: KINEMATICA AG, CH-6014 Littau / Lucerne Product name: MICROTRON® Type designation: MICROTRON® MB 550 Article number Description 36010005 MB 550, Drive unit 230V... -
Page 5: Organisational Matters
The operating instructions can only be of use to you if you always have them to hand. They should, therefore, always be kept at the place where the equipment is used. 2.4 MANUFACTURER AND CONTACT ADDRESS KINEMATICA AG Luzernerstrasse 147a CH-6014 Littau / Lucerne TEL.:... - Page 6 2.5 Warning Notices Please be aware of the meaning of the following warning signs: Safety instructions must be observed to ensure safe operation This symbol indicates high voltage, with risk to health and environment IM MB 550 English / Edition 2.0 / 13.03.2009 Page 6 / 13...
-
Page 7: Safety Tips
- the appliance or the mains cable is damaged - the appliance has been dropped or has fallen. In this case the appliance must be brought in for repairs or inspection at the next KINEMATICA authorized service center. • Repairs should only be done by professionally trained technicians. -
Page 8: Uses
It is forbidden to mix 2 materials which to not correspond with each other, or to get the mixture explosive because of overheating etc. ® If the MICROTRON MB 550 is used for any other purposes or altered, KINEMATICA AG cannot be held responsible for any damages which result. Machine Description Motor base... -
Page 9: Electrical Connection
Electrical Connection The power supply voltage must correspond to the values on the rating plate on the appliance (the voltage rating is given in volts (V)) The appliance should only be connected to a single phase grounded alternating current. Make sure that the original mains cable and the wall outlet correspond. The use of a faulty-energy-protection switch, (Fl) is suggested by all the works with electro-appliances. -
Page 10: Safety Features And Motor Protection
Switch on motor and vary the speed according to the ingredients being mixed, that is, turn the speed control clockwise until the desired speed is reached. The maximum speed is reached at position 8 Motor works only when the protection cap is set up right ! Turn off: Turn the speed control knob counter clockwise to "0"... -
Page 11: Maintenance
Repairs on electrical appliances should only be carried out by professional technicians. Serious dangers to the user could result from improperly carried out repairs. Obtain the address of your nearest KINEMATICA authorized service center from the store where you purchased your appliance. -
Page 12: Connection Drawing
Connection Drawing Circuit board holder Motor safety switch Potentiometer with On/Off-Switch Motor brushes connection Stator connection Safety switch for cap surveillance Electronic Potentiometer connection for control device Suppressor screen filter EF-Choke Ground Neutral wire Mains supply Phase Small Spare Parts List ... -
Page 13: Warranty
12 months from the date of delivery. KINEMATICA AG will repair or replace and return free of charge any part which is returned to its factory within said period, transportation prepaid by the user and which is found upon inspection to have been defective in materials or workmanship.
