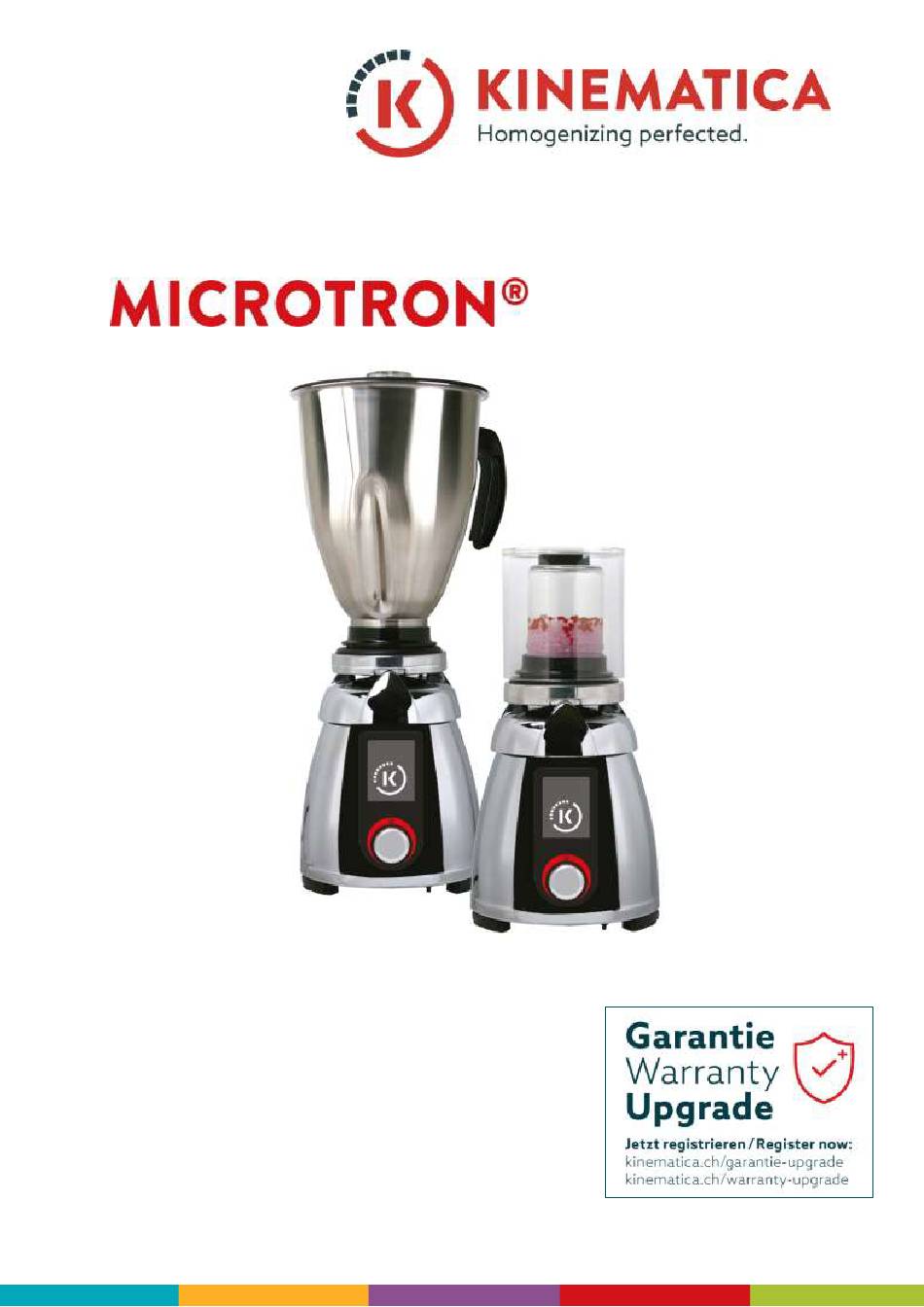

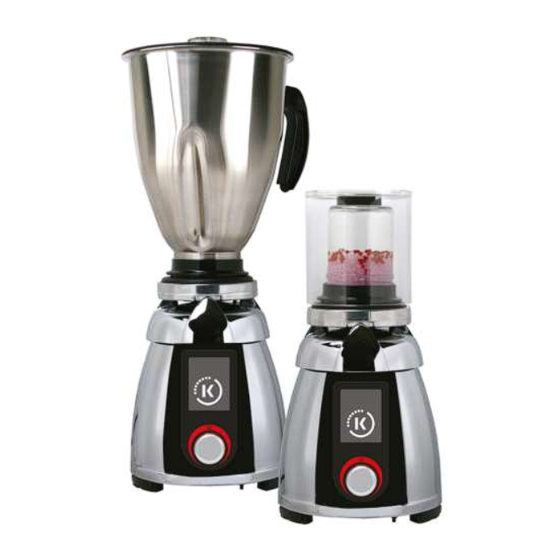

  • Page 1 MICROTRON® SYSTEM MB 950 G MICROTRON® SYSTEM MB 950 S Instruction Manual...
  • Page 2 INSTRUCTION MANUAL System MICROTRON® Type MB 950 G / S Version 1.1 / 19.06.2023 Page SAFETY INDICATIONS Please pay attention to the meaning of the following warning signs: CAUTION! SAFETY INSTRUCTIONS MUST BE OBSERVED TO ENSURE SAFE OPERATION. CAUTION! THIS SYMBOL INDICATES HIGH VOLTAGE, WITH RISK TO HEALTH AND ENVIRONMENT.
  • Page 3 IF YOU HAVE ANY QUESTIONS OR DOUBTS REGARDING OPERATING THE UNIT, DO NOT START OR OPERATE THE UNIT AND CONTACT YOUR DEALER OR NEAREST KINEMATICA SERVICE CENTER. IMPROPER USE OF THE UNIT DUE TO UNAUTHORIZED PERSONNEL CAN LEAD TO DAMAGE ON THE UNIT AND / OR ENDANGER LIFE, CAUSE PERSONAL INJURY AND HARM THE ENVIRONMENT.
  • Page 4 BEFORE STARTING INSPECTION AND MAINTENANCE WORK ON THE UNIT (SERVICE, REPAIR ETC.), ALL POWER SUPPLIES MUST BE DISCONNECTED. THE DRIVE UNIT MAY ONLY BE OPENED BY AUTHORIZED KINEMATICA SERVICE STATIONS. SERVICE AND MAINTENANCE SHALL ONLY BE PERFORMED BY AUTHORIZED AND SKILLED SERVICE ENGINEERS.
  • Page 5 INSTRUCTION MANUAL System MICROTRON® Type MB 950 G / S Version 1.1 / 19.06.2023 Page WARNINGS ALL WARNINGS AND RECOMMENDATIONS IN THE FOLLOWING CHAPTERS MUST BE RESPECTED! THE EQUIPMENT MAY NOT BE OPERATED IN EXPLOSIVE ENDANGERED AREAS. IT IS NOT ALLOWED TO WORK WITH FLUIDS WHICH ARE HIGHLY INFLAMMABLE.
  • Page 6 INSTRUCTION MANUAL System MICROTRON® Type MB 950 G / S Version 1.1 / 19.06.2023 Page THE BLENDER SHOULD NEVER RUN WITHOUT MIXING ATTACHMENT. NEVER PUT A CUTTER ASSEMBLY ON THE MOTOR BASE WITHOUT THE VESSEL! ONLY FIT OR REMOVE THE MIXING ATTACHMENT WHEN MOTOR IS STATIONARY.
  • Page 7 NO RESPONSIBILITY, NOR WILL GRANT ANY GUARANTEE. IMPROPER USE OF THE UNIT CAN RESULT IN PERSONAL INJURY OR IN DAMAGE OF THE EQUIPMENT. KINEMATICA WILL NOT BE LIABLE AND WILL TAKE NO RESPONSIBILITY IN SUCH AN EVENT. REPAIRS ON ELECTRICAL UNITS SHOULD ONLY BE CARRIED OUT BY PROFESSIONAL TECHNICIANS.
  • Page 8 INSTRUCTION MANUAL System MICROTRON® Type MB 950 G / S Version 1.1 / 19.06.2023 Page RESIDUAL DANGERS When the system/equipment is used in accordance with rules and regulations, resid- ual dangers are minimal. Residual danger Countermeasures These should be laid appropriately. Tripping over feed or re- turn or supply lines, pip- Wear protective clothing (goggles etc.).

  • Page 9: Table Of Contents

    INSTRUCTION MANUAL System MICROTRON® Type MB 950 G / S Version 1.1 / 19.06.2023 Page Table of Contents INTRODUCTION ................10 DESCRIPTION OF THE UNIT ..............11 MB 950 G / MB 950 S ....................... 12 RIVE 2.1.1 SAFETY CONTROL AND MOTOR PROTECTION ................13 2.1.2 CONTROL AND DISPLAY ELEMENTS .....................

  • Page 10: Introduction

    If the system is used for purposes different than or over and above the capabilities specified herein, KINEMATICA does not guarantee proper function and assumes no obligation or liability. Should you have any questions which are not answered in this document, please contact KINEMATICA.

  • Page 11: Description Of The Unit

    INSTRUCTION MANUAL System MICROTRON® Type MB 950 G / S Version 1.1 / 19.06.2023 Page 2 DESCRIPTION OF THE UNIT For a ready-to-use system you need:  Drive Unit MICROTRON® MB 950 G or MB 950 S  Mixing Attachment MBA ...

  • Page 12: Drive Unit Mb 950 G / Mb 950 S

    INSTRUCTION MANUAL System MICROTRON® Type MB 950 G / S Version 1.1 / 19.06.2023 Page 2.1 Drive Unit MB 950 G / MB 950 S The drive units are equipped with a powerful high temperature resistant collector motor with fan and integrated motor control. The operation of the units is done through the Turn/Push knob as well as the intuitive touch display.

  • Page 13: Safety Control And Motor Protection

    INSTRUCTION MANUAL System MICROTRON® Type MB 950 G / S Version 1.1 / 19.06.2023 Page 2.1.1 SAFETY CONTROL AND MOTOR PROTECTION The safety features prevent the motor from being switched on without a safety hut (MB 950 G) or lid (MB 950 S) being in place, or stops the unit if the safety hut or lid is removed while the unit is working.

  • Page 14: Control And Display Elements

    INSTRUCTION MANUAL System MICROTRON® Type MB 950 G / S Version 1.1 / 19.06.2023 Page 2.1.2 CONTROL AND DISPLAY ELEMENTS Touchdisplay: Works simultaneously for display and control. To select a function, tap directly on the icon. Speed display (1..10) Timer / stopwatch Pulse button Interval button Settings...
  • Page 15 INSTRUCTION MANUAL System MICROTRON® Type MB 950 G / S Version 1.1 / 19.06.2023 Page Extra 10 seconds Silent mode (low noise) Pulse Stop mix cycle Pulse operation to permanent Back with save (enter) Interval Back without saving (cancel) Mixing attachment with safety Mix cycle for small filling hut of lid is missing Motor defect (Service depart-...
  • Page 16 INSTRUCTION MANUAL System MICROTRON® Type MB 950 G / S Version 1.1 / 19.06.2023 Page The duration can be increased by 10 seconds at any time by tapping the icon. The mixer is stopped by briefly pressing the knob or by tapping on STOP. 2.1.2.3 Pulse Function: Your mixer has a pulse / inching function.
  • Page 17 INSTRUCTION MANUAL System MICROTRON® Type MB 950 G / S Version 1.1 / 19.06.2023 Page 2.1.2.5 Mixing cycles function: Your mixer features three different mix cycles. These al- low you to start up an automatic mix cycle. Tapping one of the icons starts up the mix cycle, the mixer stopping automatically when the time has expired.
  • Page 18 INSTRUCTION MANUAL System MICROTRON® Type MB 950 G / S Version 1.1 / 19.06.2023 Page Mode liquids The basic settings of the unit are optimized when using products with mainly liquids. When this function is active, the mixer is op- timized for the quietest operation possible.

  • Page 19: Mixaufsätze Mba

    INSTRUCTION MANUAL System MICROTRON® Type MB 950 G / S Version 1.1 / 19.06.2023 Page 2.2 MIXING ATTACHMENTS (MBA) 2.2.1 MBA FOR MB 950 G For the MB 950 G four different mixing attachments with glass vessels are available with volumes from 125 ml to 1 000 ml.

  • Page 20: Mba For Mb 950 S

    INSTRUCTION MANUAL System MICROTRON® Type MB 950 G / S Version 1.1 / 19.06.2023 Page 2.2.2 MBA FOR MB 950 S For the MB 950 S two different mixing attachments with stainless steel vessels are availa- ble with volumes Description MBA 2000 MBA 4000 Order Code...

  • Page 21: Safety Hut Mbh

    INSTRUCTION MANUAL System MICROTRON® Type MB 950 G / S Version 1.1 / 19.06.2023 Page Disassembly • First remove the complete mixing attachment from the drive unit and empty it completely. • Attention: To loosen the plastic threaded ring, turn to the right.

  • Page 22: Installation And Start-Up

    INSTRUCTION MANUAL System MICROTRON® Type MB 950 G / S Version 1.1 / 19.06.2023 Page 3 INSTALLATION AND START-UP The drive units described in this manual will be delivered completely assembled and the package will include: • Drive unit with main cable •...

  • Page 23: Start-Up

    INSTRUCTION MANUAL System MICROTRON® Type MB 950 G / S Version 1.1 / 19.06.2023 Page 3.2 START-UP • Before starting up the unit make sure to have read and understood this manual. Es- pecially chapter 2 to understand the different parts and functions of the unit. •...
  • Page 24 INSTRUCTION MANUAL System MICROTRON® Type MB 950 G / S Version 1.1 / 19.06.2023 Page  Pressing the knob turns the machine on. During start-up a ring appears in the display, followed by the main menu.  Starting the drive unit o Turn the knob to the right (clockwise), or o The stopwatch will start to count automatically.

  • Page 25: Cleaning

    INSTRUCTION MANUAL System MICROTRON® Type MB 950 G / S Version 1.1 / 19.06.2023 Page 4 CLEANING  The unit and the mixing attachment respectively have to cleaned thoroughly after every use. Incorrect and careless cleaning can heighten the risk of growing micro-or- ganisms considerably.
  • Page 26 INSTRUCTION MANUAL System MICROTRON® Type MB 950 G / S Version 1.1 / 19.06.2023 Page Stainless steel For example, with applications in laboratories even the stainless vessel steel parts can reach their limits concerning chemical resistance when they come into contact with chlorides (e.g. hydrochloric acid).
  • Page 27 INSTRUCTION MANUAL System MICROTRON® Type MB 950 G / S Version 1.1 / 19.06.2023 Page Safety hut Chemically-speaking, Plexiglas® (brand name) is a product made from polymethylmethacrylate, abbreviation PMMA, which is also known as acrylic glass. Plastics can generally become electrostatically charged. This can cause the parts to then attract dust.

  • Page 28: Maintenance Work

    5.1 REPAIR Obtain the address of your nearest Kinematica authorized service center, from the supplier where you purchased your unit. When returning the unit for repairs use a shockproof packing and well upholster the unit ! Repairs on electrical appliances should only be carried out by professional technicians.

  • Page 29: Spare Parts

    Version 1.1 / 19.06.2023 Page 6 SPARE PARTS Only original KINEMATICA spare parts will guarantee a trouble-free operation of the unit. Please bear in mind that some components have lead times of several weeks. 7 FAULTS AND REMEDIES Fehler Mögliche Ursachen Lösung...
  • Page 30 INSTRUCTION MANUAL System MICROTRON® Type MB 950 G / S Version 1.1 / 19.06.2023 Page The motor is difficult or im- Repair through service cen- Defective electronics. possible to adjust. tre. Overload. Press overload switch. The motor stops under Carbons at motor are Repair through service cen- load.

  • Page 31: Technical Data

    INSTRUCTION MANUAL System MICROTRON® Type MB 950 G / S Version 1.1 / 19.06.2023 Page 8 TECHNICAL DATA 8.1 DRIVE UNITS Description  Drive unit MICROTRON® MB 950 G / 950 S Order Code MB 950 G 36010151 36010150 36010152 36010153 Order Code MB 950 S 36010161...

  • Page 32: Warranty

    REGISTER NOW kinematica.ch/warranty-upgrade If thorough testing shows a fault to be due to either of the above causes, KINEMATICA AG guarantees that the equipment will be repaired or replaced free of charge. The guarantee does not cover parts that are subject to normal wear. It is void if any person other than an...
