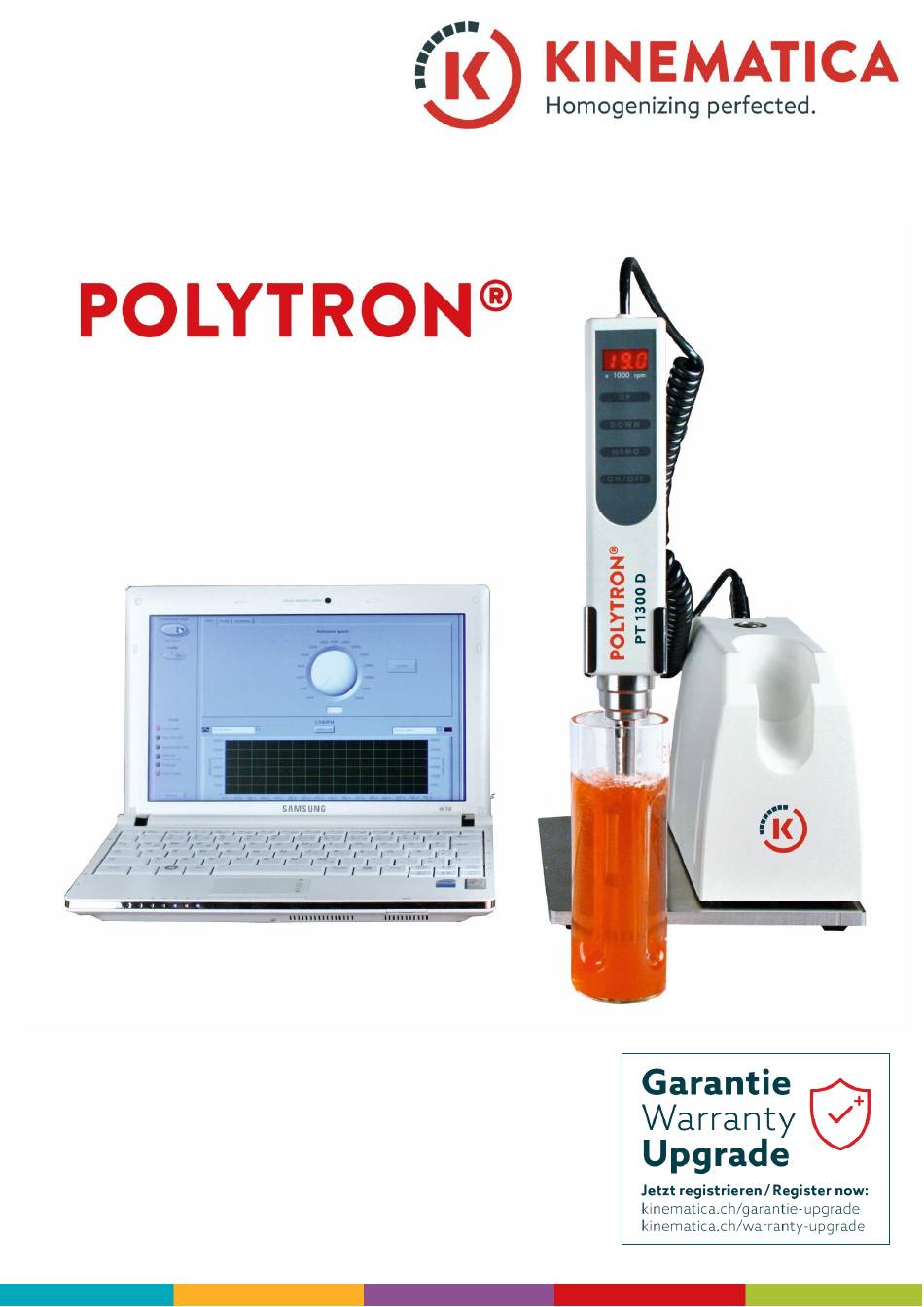

- Page 1 POLYTRON® SYSTEM PT 1300 D Instruction manual...
- Page 2 Do not modify the unit without a written confirmation by KINEMATICA. It is strictly forbidden to run the unit with disassembled or bridged safeguards, for example safety limit switches, emergency switches or covers.
- Page 3 INSTRUCTION MANUAL ® System POLYTRON Type PT 1300 D Issue 5/ 1.07.2018 Page The unit must be disconnected from the electrical supply be- fore any service or inspection work. Make sure the unit cannot be restarted unintended by a third person during service or inspection work.
- Page 4 The unit has to be installed / operated in a manner that no dirt or fluids can enter through the ventilation slots at the backside of the unit. The unit may only be opened by KINEMATICA authorized service staff. The mains supply has to be disconnected before exchanging any dispersing aggregate.
- Page 5 INSTRUCTION MANUAL ® System POLYTRON Type PT 1300 D Issue 5/ 1.07.2018 Page Never dry-run the slide bearing and/or mechanical seal of the POLYTRON dispersing aggregate – they are cooled and lubricated by the processed me- dium. Dry-run will destroy the slide bearing and/or mechanical seal. The maximum immersion depth of the dispersing aggregate is limited by the upper rinse hole of the shaft tube.
- Page 6 Breakage of glass vessels Wear protective clothing, goggles, etc. Splashing oft he product Noise; loss of hearing due to Use ear protection. permanent noise exposure. Tilting of the unit Use stable, non-slip base. Use stands from KINEMATICA.
-
Page 7: Table Of Contents
INSTRUCTION MANUAL ® System POLYTRON Type PT 1300 D Issue 5/ 1.07.2018 Page TABLE OF CONTENT 1 INTRODUCTION ........................8 ..............................9 NTENDED USE 2 DESCRIPTION OF THE DEVICE ..................10 ..............................10 VERVIEW .......................... 12 UNCTION OF THE KEYBOARD ............................ -
Page 8: Introduction
5/ 1.07.2018 Page 1 INTRODUCTION KINEMATICA is a specialist for design and manufacture of dispersing and mixing equipment and machines. The aim of this instruction manual is to instruct new users in the effective utilization and in the safe operation of our equipment. -
Page 9: Intended Use
As standard the POLYTRON PT 1300 D is equipped with an USB port and can also be used and con- trolled by a PC. An USB cable and a free to use KINEMATICA software is already included in the scope of supply. -
Page 10: Description Of The Device

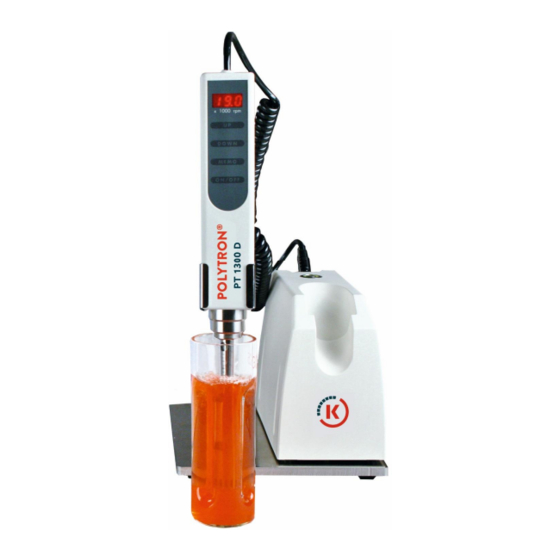

2 Description of the device Overview Scope of supply: • Handheld unit • Base station • Mains cable • USB cable and KINEMATICA Software • Instruction manual • LED – speed indication • Keyboard • Hinge stand ST-P01/200 (accessory) •... - Page 11 INSTRUCTION MANUAL ® System POLYTRON Type PT 1300 D Issue 5/ 1.07.2018 Page • Plate stand ST-P15/320 with base station and han- dheld unit holder (accessory) • Homogenizing vessel (accessory) Keyboard: • UP – button • DOWN – button • MEMO –...
-
Page 12: Function Of The Keyboard
INSTRUCTION MANUAL ® System POLYTRON Type PT 1300 D Issue 5/ 1.07.2018 Page Function of the keyboard To start the operation push the ON/OFF button on the handheld unit. ON/OFF The main switch at the base station must be turned on first. The default speed is set to 2‘000 rpm when the unit is switched on at the main switch at the base station. -
Page 13: Working With The Pt 1300 D
3 Working with the PT 1300 D Unpacking When unpacking the unit immediately check the content for possible transport damages and com- pleteness (compare with the delivery note). In case of any discrepancies report immediately to your dealer or directly to KINEMATICA. -
Page 14: Installation And Commissioning
INSTRUCTION MANUAL ® System POLYTRON Type PT 1300 D Issue 5/ 1.07.2018 Page Installation and Commissioning • Plug the device cable of the handheld unit into the intended socket on the base station. • Plug the mains cable into the mains socket on the backside of the base station. - Page 15 INSTRUCTION MANUAL ® System POLYTRON Type PT 1300 D Issue 5/ 1.07.2018 Page • Immerse the Dispersing Aggregate into an appro- priate working vessel filled with your liquid based product. The lower rinse holes of the Dispersing Aggregate have to be completely immersed in the product at least.
-
Page 16: Maintenance
Maintenance of the Base station The base station does not require any special maintenance. There are no parts that need or can be serviced or replaced by the operator. In the case of a malfunction, please contact KINEMATICA or your dealer. -
Page 17: Error Messages
Type PT 1300 D Issue 5/ 1.07.2018 Page Unusual noises Damaged bearings at Service needed at KINEMATICA or at authorized drive unit service partner. Damaged bearings at dis- Check the dispersing aggregate and change the persing aggregate damaged bearing parts. -
Page 18: Thermal Overload Protection
To reset the unit has to be turned off by using the main switch on the base station. In case the failure remains after switching the unit back on, service is needed at KINEMATICA or at an authorized ser- vice partner. -
Page 19: Accessory
INSTRUCTION MANUAL ® System POLYTRON Type PT 1300 D Issue 5/ 1.07.2018 Page 6 Accessory Dispersing aggregates ® The following Dispersing Aggregates are available for the system POLYTRON PT 1300 D as standard: Order Code Description Stator / Rotor Ø Shaft length Working volume ml (approx.) -
Page 20: Stands
INSTRUCTION MANUAL ® System POLYTRON Type PT 1300 D Issue 5/ 1.07.2018 Page Design All POLYTRON Dispersing Aggregates for the system PT 1300 D are Easy Clean versions. They can be easily disassembled and cleaned or sterilized us- ing common methods, e.g. using an autoclave. Product require- The product to be processed has to be pumpable and flowable. - Page 21 INSTRUCTION MANUAL ® System POLYTRON Type PT 1300 D Issue 5/ 1.07.2018 Page Order Code Description Information GS 15 Working volume up to 35 ml, clover leaf shaped, Borosil- 11051010 icate glass Working volume up to 150 ml, clover leaf shaped, Boro- 11051011 GS 25 silicate glass...
-
Page 22: Warranty
It is void if any person other than an employee of KINEMATICA AG or their appointed rep- resentative has made modifications to the equipment or if the damage is due to failure to comply with the operating instructions, to carelessness, accident, incorrect use or incorrect supply voltage. -
Page 23: Disposal
INSTRUCTION MANUAL ® System POLYTRON Type PT 1300 D Issue 5/ 1.07.2018 Page 8 Disposal Within the European Union this symbol with the crossed waste container signifies that the product must not be disposed with household waste. It must be brought to a collection point for recycling electrical and electronic equipment.
