Summary of Contents for Kinematica Microtron System MB 800

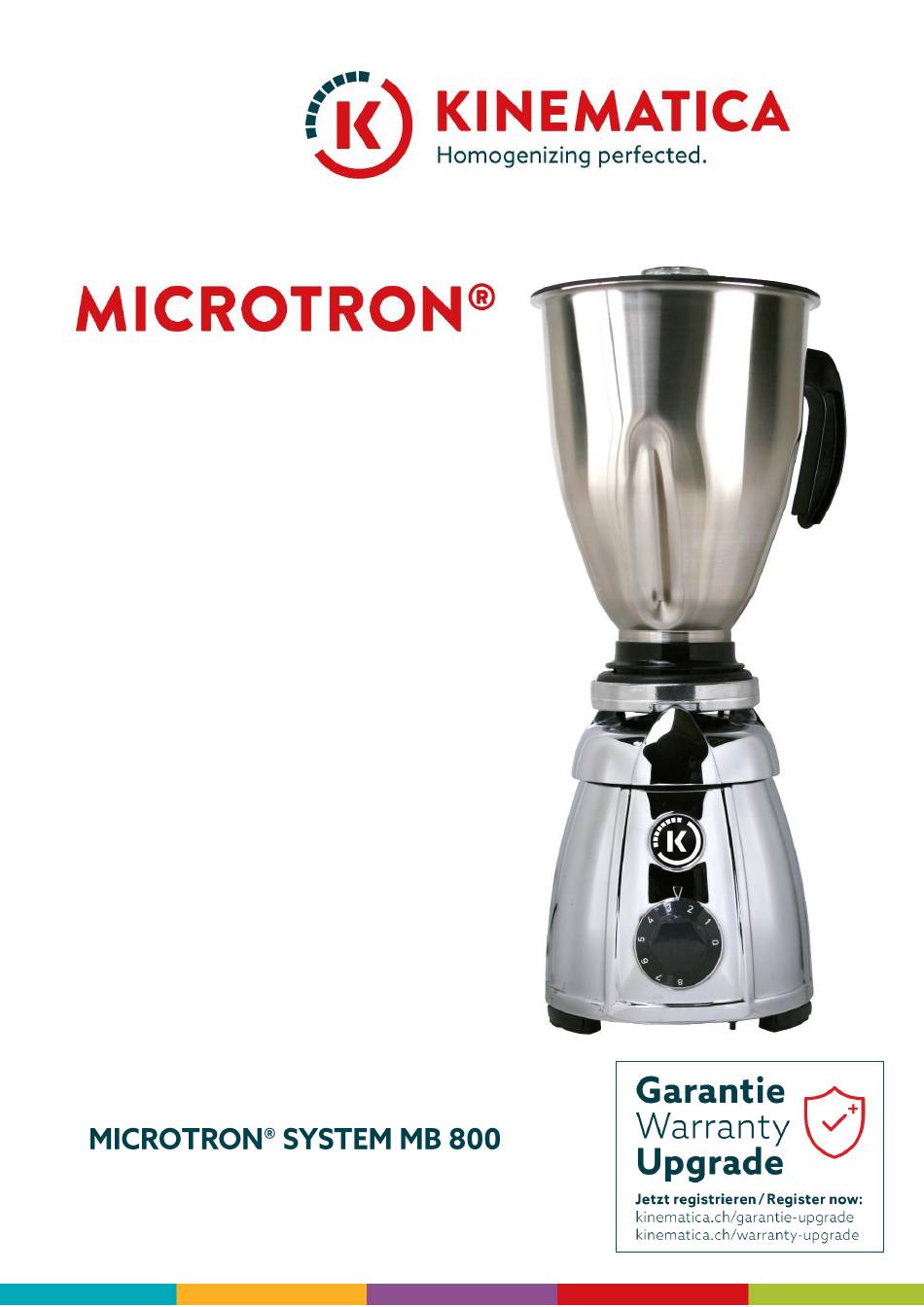

- Page 1 Operating instructions...
- Page 2 ® System MICROTRON Type MB 800 Issue 3.0 / 12.09.2018 Page ..........................3 PERATING INSTRUCTIONS ............................4 ARGET UDIENCE ..........................5 RGANISATIONAL MATTERS ....................... 5 OCATION OF THE OPERATING INSTRUCTIONS MANUFACTURER AND CONTACT ADDRESS ....................5 ............................6 ARNING OTICES...
- Page 3 KINEMATICA AG is a specialist manufacturer of machines and equipment for dispersion and mixing technology. An important objective of these operating instructions is to fully inform you, the user, about the correct and safe use of our equipment.
- Page 4 ® System MICROTRON Type MB 800 Issue 3.0 / 12.09.2018 Page Manufacturer: KINEMATICA AG, CH-6014 Lucerne Product name: MICROTRON® Type designation: MICROTRON® MB 800 36010003 MB 800, Drive unit 230V 36010004 MB 800, Drive unit 110-120V 36050050 MBA 2000, Mixing attachment, 2000ml working volume...
- Page 5 The operating instructions can only be of use to you if you always have them to hand. They should, therefore, always be kept at the place where the equipment is used. Luzernerstrasse 147a CH-6014 Lucerne TEL.: +41 41 259 65 65 FAX: +41 41 259 65 75 E-Mail: info@kinematica.ch...
- Page 6 ® System MICROTRON Type MB 800 Issue 3.0 / 12.09.2018 Page Please be aware of the meaning of the following warning signs:...
- Page 7 - the appliance or the mains cable is damaged - the appliance has been dropped or has fallen. In this case the appliance must be brought in for repairs or inspection at the next KINEMATICA authorized service center. • Repairs should only be done by professionally trained technicians.
- Page 8 ® System MICROTRON Type MB 800 Issue 3.0 / 12.09.2018 Page ® The MICROTRON MB 800 can be just used for chop, beat, stir, mix, puree and emulsify of cuttable chemical materials/substances. The chemical and temperature Resistance of the used material (Glass, stainless steel, PP and rubber) has to be noticed in context with the blender.The process of explosive materials is strictly prohibited.
- Page 9 ® System MICROTRON Type MB 800 Issue 3.0 / 12.09.2018 Page The power supply voltage must correspond to the values on the rating plate on the appliance (the voltage rating is given in volts (V)) The appliance should only be connected to a single phase grounded alternating current. Make sure that the original mains cable and the wall outlet correspond.
- Page 10 ® System MICROTRON Type MB 800 Issue 3.0 / 12.09.2018 Page The safety control prevents the motor from being switched on when the protection cap/mixing lid is not in position and stops it if the protection cap/lid is raised during operation. When the protection cap/lid is replaced, the speed control knob must be turned back to "0"...
- Page 11 ® System MICROTRON Type MB 800 Issue 3.0 / 12.09.2018 Page The cutter head is made of stainless steel parts, which are actually very resistant. However, high temperatures and detergents generally reduce the lubricating effect of the grease in the built-in stainless steel ball bearings (with integrated NBR seals, heat resistant up to a maximum of 120°...
- Page 12 ® System MICROTRON Type MB 800 Issue 3.0 / 12.09.2018 Page A chemical resistance chart for PMMA can be downloaded here: https://adobe.ly/2lXBgrP (Document only available in German). In it you can see which chemicals are compatible with PMMA and which are not.
-
Page 13: Maintenance
- Defective safety switch or electronics cap/lid has been lifted. Obtain the address of your nearest KINEMATICA authorized service center from the store where you purchased your appliance. Bring your appliance to the service center or send it as a postage paid, registered package. - Page 14 ® System MICROTRON Type MB 800 Issue 3.0 / 12.09.2018 Page Circuit board holder Motor safety switch Potentiometer with On/Off-Switch Motor brushes connection Stator connection Safety switch for cap surveillance Electronic Potentiometer connection for control device Suppressor screen filter EF-Choke Ground Neutral wire Mains supply...
- Page 15 It is void if any person other than an employee of KINEMATICA AG or their appointed representative has made modifications to the equipment or if the damage is due to failure to comply with the operating instructions, to carelessness, accident, incorrect use or incorrect supply voltage.
