Quadra-Fire 57ST-ACC-AU Installation Instructions Manual

Quadra-Fire 57ST-ACC-AU Installation Instructions Manual

Step top acc wood burner
Hide thumbs Also See for 57ST-ACC-AU:

Advertisement

Quick Links

Download this manual See also: Owner's Manual, Installation Manual

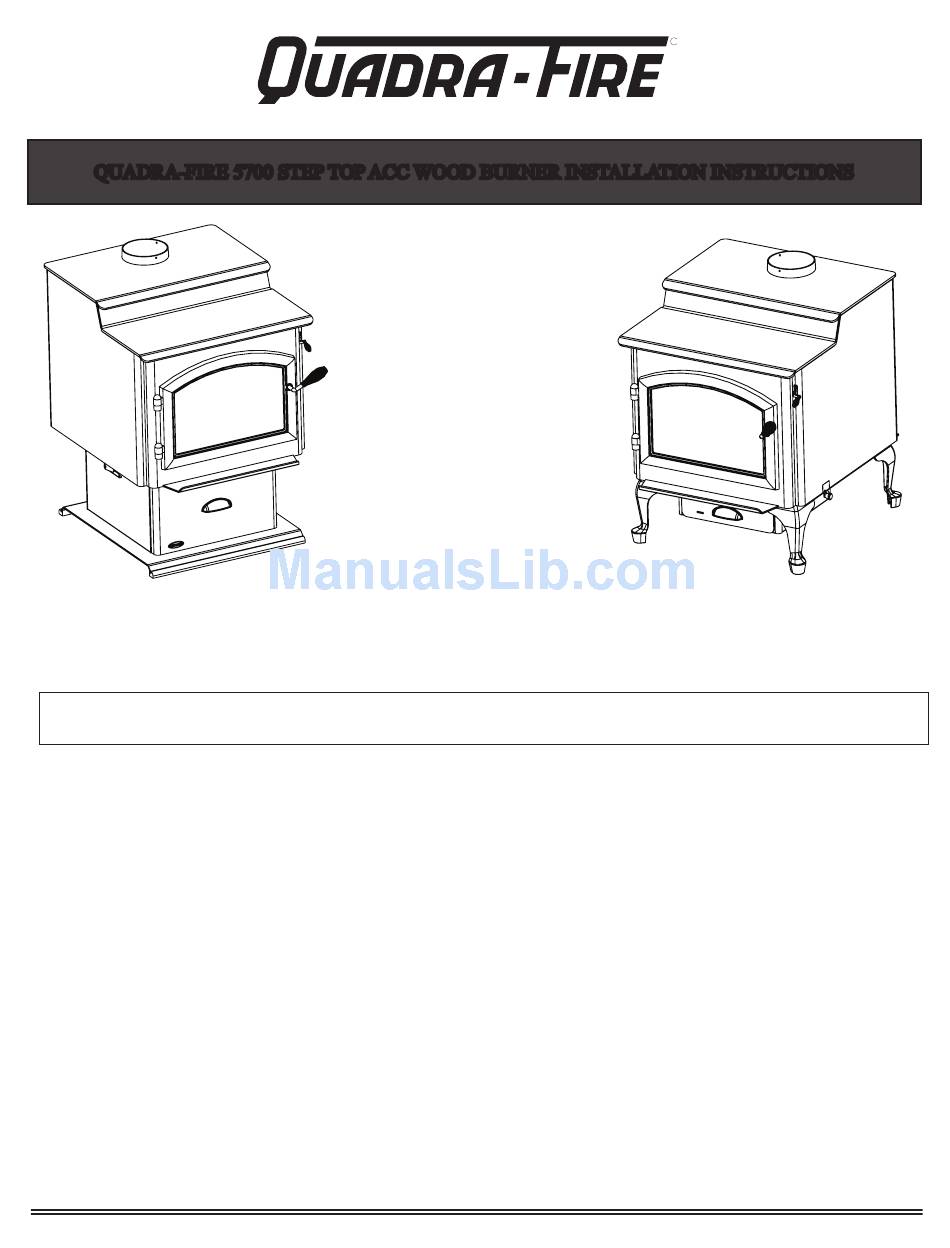

QUADRA-FIRE 5700 STEP TOP ACC WOOD BURNER INSTALLATION INSTRUCTIONS
IMPORTANT: Read all instructions carefully before starting installation. Failure to follow these
instructions may result in a fire hazard and will void the warranty.
• Fig. 3,4,5 and Table 1 & 2 relate to installations with tested flue systems; as per AS/NZS 2918:2001 -
Appendix F, with a ceiling angle between 0° - 30° inclusive.
• For installations with a ceiling angle greater than 30°, refer to Fig. 6 & 7 and AS/NZS 2918:2001 4.6.3(b)
• Ceiling Plate may vary in size depending on ceiling angle. Please specify ceiling pitch prior to ordering the
ceiling plate.
• Quadra-Fire 5700 Step Top ACC wood burner's are tested and approved to the N.Z. National Environmen-
tal Standards;
Page 1
57ST-ACC-AU
INSTALLATIONS TO COMPLY WITH AS/NZS2918:2001
AND WILL REQUIRE A BUILDING CONSENT
57ST-ACC-AU -5700 Step Top ACC Hardwood Certified
Particulate Emissions = 2.9 g/kg Space Heating Efficiency = 65%
Model:
7038-201
R
July 19, 2012

Advertisement

loading
Need help?

Need help?

Do you have a question about the 57ST-ACC-AU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Quadra-Fire 57ST-ACC-AU

Summary of Contents for Quadra-Fire 57ST-ACC-AU

  • Page 1 QUADRA-FIRE 5700 STEP TOP ACC WOOD BURNER INSTALLATION INSTRUCTIONS Model: 57ST-ACC-AU INSTALLATIONS TO COMPLY WITH AS/NZS2918:2001 AND WILL REQUIRE A BUILDING CONSENT IMPORTANT: Read all instructions carefully before starting installation. Failure to follow these instructions may result in a fire hazard and will void the warranty.
  • Page 2 Hearth & Home Technologies welcomes you to our tradition our stoves, inserts and fireplaces. And yet we are old-fash- of excellence! In choosing a Quadra-Fire appliance, you ioned when it comes to craftsmanship. Each unit is meticu- have our assurance of commitment to quality, durability, and lously fabricated and surfaces are hand-finished for lasting performance.
  • Page 3 5700 Step Top ACC Wood Burner Quadra-Fire 5700 STEP TOP ACC Wood Burner Dimensions Pedestal Model 822 mm 769 mm 686 mm 170 mm 535 mm 280 mm 379 mm 435 mm 945 mm 330 mm 489 mm 522 mm...

  • Page 4: Floor Protector

    5700 Step Top ACC Wood Burner FLOOR PROTECTOR Quadra-fire 5700 Step Top ACC does not require a insulating Floor Protector, as they are tested and comply with the minimum Floor Protector requirements of AS/NZS 2918:2001. Note: ▪ The minimum Floor Protector sizes are specified in the clearance chart, see Table 1 & 2.

  • Page 5: Firebox Installation

    5700 Step Top ACC Wood Burner CORNER POSITIONING (45°) CORNER POSITIONING (45°) Fig. 4 Drawing not to scale Table 2 DESCRIPTION With Double Pioneer Double Flue Mounted Shield Universal Flue Shield Shall be Fitted Fitted Min. clearance from firebox to corner walls Min.

  • Page 6: General Instructions For Flue System

    5700 Step Top ACC Wood Burner GENERAL INSTRUCTIONS FOR FLUE SYSTEM ▪ Flue pipe installed crimp/narrow end down ▪ Outer casings installed crimped/narrow end up. (Critical when exposed above the roof) ▪ Inner casings - direction not critical ▪ Flue pipes - seal all joints including firebox spigot. - fix with a minimum of 3 stainless steel rivets ▪...
  • Page 7 Internal Swage 12.5 Vented Ceiling Plate Pioneer Double Flue Shield Flue Pipe Quadra-fire Millennium Floor Protector The flue crimp must be cut so the swage (half-moon bulge after the crimp) fits tightly into the spigot. Page 7 July 19, 2012...
  • Page 8 5700 Step Top ACC Wood Burner   1.QF.1F FLUE PENETRATION     Un-tested flue systems, as per AS/NZS 2918:2001, 4.6.3(b)         ADD Cowl Fig. 6       AS/NZS2918:2001   Casing Cover   Un-tested flue with sloped ceiling Spider Bracket penetration greater than 30°...

  • Page 9: Minimum Height Of Flue System Exit

    5700 Step Top ACC Wood Burner GENERAL INSTRUCTIONS FOR FLUE SYSTEM 1. Unpack the Flue Mounted Shield, detach the three brackets and familarize yourself with the illustra- tions. 2. Using a sharp knife or razor blade, carefully cut through the plastic film on the “inside face” where it meets the outer shield (refer sketch).
  • Page 10 5700 Step Top ACC Wood Burner AS/NZS 2918:2001 General Notes WARNINGS: WARNING: THE APPLIANCE AND FLUE SYSTEM SHALL BE INSTALLED IN ACCORDANCE WITH AS/NZS 2918 AND THE APPROPRIATE REQUIREMENTS OF THE RELEVANT BUILDING CODE OR CODES. WARNING: APPLIANCES INSTALLED IN ACCORDANCE WITH THIS STANDARD SHALL COMPLY WITH THE REQUIREMENTS OF AS/NZS 4013 WHERE REQUIRED BY THE REGULA- TORY AUTHORITY, I.E.
  • Page 11 5700 Step Top ACC Wood Burner Service And Maintenance Log Date of Service Performed By Description of Service Page 11 July 19, 2012 7038-201...
  • Page 12 CONTACT INFORMATION: Please contact your Quadra-Fire dealer with any questions or concerns. For the number of your nearest Quadra-Fire dealer logo onto www.quadrafire.com CAUTION DO NOT DISCARD THIS MANUAL Read, understand and Leave this manual with • Important operating and •...
