INSTALL MOTION MOUNT

Follow the instructions below to install the MOTION MOUNT TI PL or the MOTION MOUNT TI CANON:
1. Turn off the DSMC and remove the lens, power supplies, cables, and any DSMC accessories that may ob-
struct access to the lens mount.
2. Place the DSMC brain on a suitable flat work surface with the front of the DSMC facing upward.
3. Place the MOTION MOUNT on the DSMC brain, so that the pins on the DSMC body align with the pins on
the MOTION MOUNT.
4. Align the four M4x0.7 x 8 mm button screws in the MOTION MOUNT with the threaded holes in the DSMC
brain.
5. Use a T20 Torx driver to tighten the M4x0.7 x 8 mm button screws by about two turns in a cross pattern.
DO NOT FULLY TIGHTEN.
6. Fully tighten the M4x0.7 x 8 mm button screws in a cross pattern (do not exceed 22 in/lb, or damage may
occur to the DSMC).
NOTE: If you need to replace any screws, please contact your Bomb Squad representative.
COPYRIGHT © 2013 RED.COM, INC

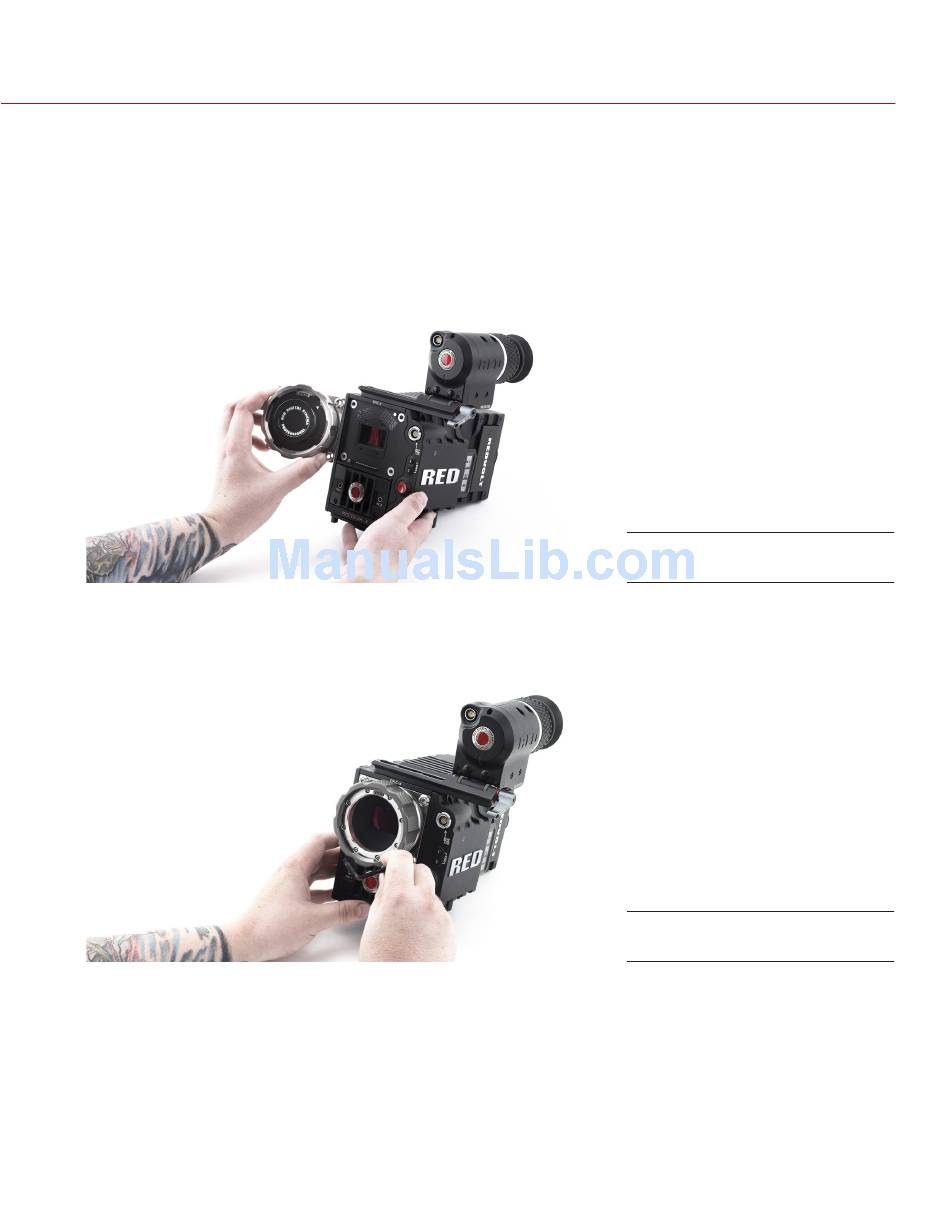

Align Pins
Install Screws
955-0013, REV-C | 9
