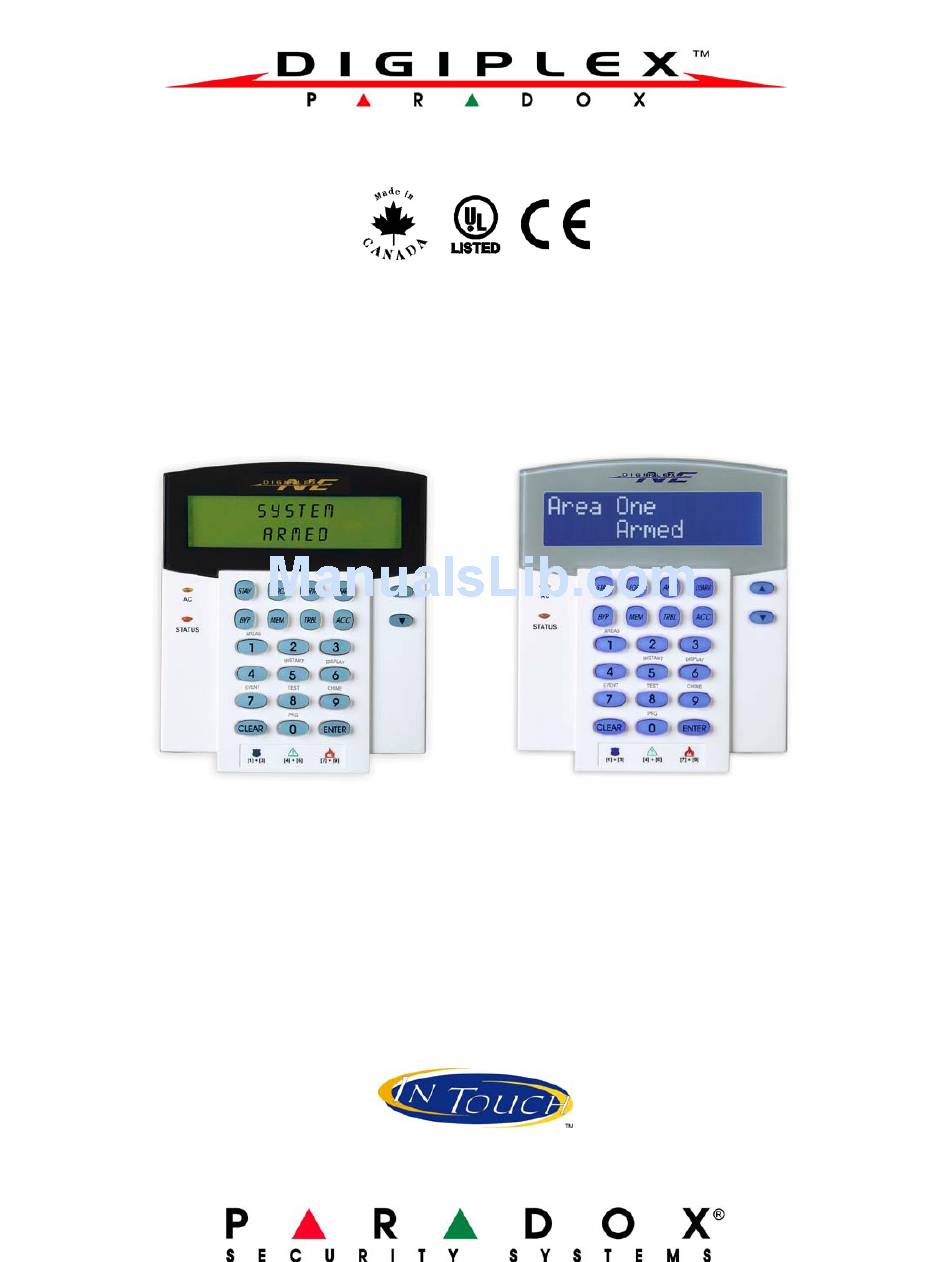

- Page 1 LCD Keypad Module DGP2-641/DGP2-641R DGP2-641BL/DGP2-641RB System Manager’s Manual for DGP-848 Systems Also includes Operating Instructions...
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Delayed Fire Zone ............14 Fire Safety Tips.............. 15 Legend ................1 Minimizing Home Fire Hazards........15 Home Fire Warning System........... 15 Basic Operation ............1 Burglar Alarm ..............15 Auditory Feedback (Beep Tones)........1 Confidential Mode ............ -
Page 5: Introduction
Since you will communicate your instructions to your system through the keypad, please read this manual carefully and have your installer explain basic system operation. If you have the InTouch Voice Assisted Arm/Disarm Module (APR3-ADM2) connected to your Digiplex security system, please refer to page 16 for operating instructions. -
Page 6: Confidential Mode
Confidential Mode Your installer can program keypads to not display the status of your system automatically by changing the LCD screen to Confidential Mode. In Confidential Mode: • The zones and status messages will NOT be displayed • The indicator lights will NOT illuminate •... -
Page 7: Stay Arming
Stay Arming Stay arming partially arms your system, permitting you to remain in your home or office by arming only the outer zones (perimeter) of the protected area (i.e. doors and windows). To Stay arm: 1. Enter your [ ACCESS CODE 2. -
Page 8: One-Touch Buttons
One-Touch Buttons If enabled by your installer, you can access the following features without using your user access code by pressing and holding the desired One-Touch button. Button Feature Button Feature Regular arm Disarm a Stay/Instant armed area DISARM Stay arm Instant arm STAY Force arm... -
Page 9: Alarm Memory Display
To disarm a system in alarm: 1. Enter your [ ACCESS CODE 2. In the case of a false alarm, call your monitoring station quickly to advise them of the false alarm. In the case of a burglar alarm, leave the premises and call the Police from a safe place. Alarm Memory Display Your system will record all of the alarms that occurred during the last armed period. - Page 10 Figure 2: Programming User Access Codes Enter your [ ] (System Master Code or user access code with Master ACCESS CODE feature). Press [0] to enter the Programming Menu. From Programming Menu, press [ Enter the 2-digit User Number you want to program; press the [ ] button to scroll the list of codes then press [ ] once the desired code appears on the screen.
- Page 11 Users are able to perform actions (arming, disarming, etc.) only in the area(s) they are assigned. To assign an area(s) to a user access code, enter the number corresponding to the area you wish to assign (i.e. [1] = area 1...[4] = area 4). Press the [ ] button to return to the User Options;...
-
Page 12: User Options
User Options Options [1] and [2]: Master Feature When option [1] is OFF, the user cannot program other users into the system. When option [1] is ON and option [2] is OFF, the user can only modify existing user access codes. When both options [1] and [2] are ON, the user has Full Master rights. -
Page 13: Using Access Control
Option [8]: Access to Armed Access Control Doors When option [8] is enabled, the Access Control Card can be used to open an armed Access Control Door. When a valid Access Control Card is presented to a reader that is assigned to a zone and the zone is armed, access will be granted and the Entry Delay will begin. -
Page 14: How Access Control Works
How Access Control Works To illustrate how Access Control functions, we will use three simple Access Control System examples: Figure 3: Example A Bonnie’s Access Control Card is programmed with Access Level 01 and Schedule 01. If she presents her card to the reader or the DGP2-641R/DGP2-641RB keypad on Door 02 on Tuesday, August 3 at 3 p.m., she will gain... -
Page 15: Trouble Display
Trouble Display If your system experiences any problems, Trouble(s) [TRBL] to View will appear on the LCD screen. The Trouble Display will only display the troubles that occur in the area(s) to which the keypad has been assigned. Potential troubles have been sorted into eight groups. Only the troubles which are relevant to you are listed and described below. -
Page 16: Additional Features
To view the Event Record: 1. Enter your [ ACCESS CODE 2. Press the [7] button. 3. If you have access to more than one area, select the area(s) you wish to view (refer to section 2.3 on page 2). 4. -
Page 17: Programming Chime Zones
Programming Chime Zones You can program the keypad to emit a rapid, intermittent beep tone whenever designated zones are opened or only when opened between certain hours. These zones are referred to as Chime Zones. Your installer can also program your Chime Zones to beep upon closure. -
Page 18: System Maintenance
System Maintenance Under normal use your system requires no maintenance other than regular testing. We recommend that your installer change the battery every three years. System Test Speak to your installer before conducting a System Test since the system must be programmed to respond to the test instructions. -
Page 19: Fire Safety Tips
Figure 7: Delayed Fire Zone 10.3 Fire Safety Tips How should you prepare in case of a fire in your home or business? • Remind everyone to escape first, then call for help. • Develop a fire escape plan and designate a meeting place outside. •... -
Page 20: Voice-Assisted Arm/Disarm Module
• You will only be able to arm or disarm areas that your User Code has access to. • If you were to arm an area with an open zone, Digiplex will Force arm the area. This will only happen with user access codes that have the Force arming feature enabled. -
Page 21: When Using Your Intouch
16.0 InTouch Example Nelson has a Digiplex security system and an InTouch hooked up at home. His security system has two areas. Both areas are presently armed and the InTouch’s output, which is hooked up to his garage door opener, is deactivated. -
Page 22: Intouch System Checklist
The InTouch then prompts Nelson with the following: “Area 1 Disarmed” “Area 2 Armed” “Output is Deactivated” “To modify, enter Area number” Nelson presses the [2] key on his telephone to disarm Area 2. The InTouch then prompts Nelson with the following: “Area 1 Disarmed”... - Page 23 One or more of the following US patents may apply: 6215399, 6111256, 5751803, 5721542, 5287111, 5119069, 5077549, 5920259 and 5886632. Canadian and international patents may also apply. Digiplex, InTouch, and WinLoad are trademarks or registered trademarks of Paradox Security Systems Ltd. or its affiliates in Canada, the United States and/or other countries.
-
Page 24: Index
Index Chime Zones ............13 ..........12 Clock, Set Time and Date Access Codes Confidential Mode ............2 Deleting .............5 InTouch Access Codes ........16 Programming ............5 ............5 System Master ...............12 Date, Set User ..............5 Deactivating a Security System ........4 Access Control Delay Timer Card Assignment ..........7 Entry... - Page 25 Keyswitch Arming ............4 System Maintenance ..........14 System Test .............14 Time, Set ...............12 ............4 Timed Auto-Arming LCD Keypad .............1 Timer Level, Access ............7 ............4 Entry Delay Exit Delay ............2 Trouble Master Code .............5 AC Failure ............11 Master Feature, in User Options ........8 Battery ............11...
- Page 26 Notes...
- Page 28 780 Industriel Blvd., Saint-Eustache (Quebec) J7R 5V3 CANADA Tel.: (450) 491-7444 Fax: (450) 491-2313 www.paradox.ca PRINTED IN CANADA - 01/2005 DGP641-EU10...
