Summary of Contents for Digiplex DGP2-641AC

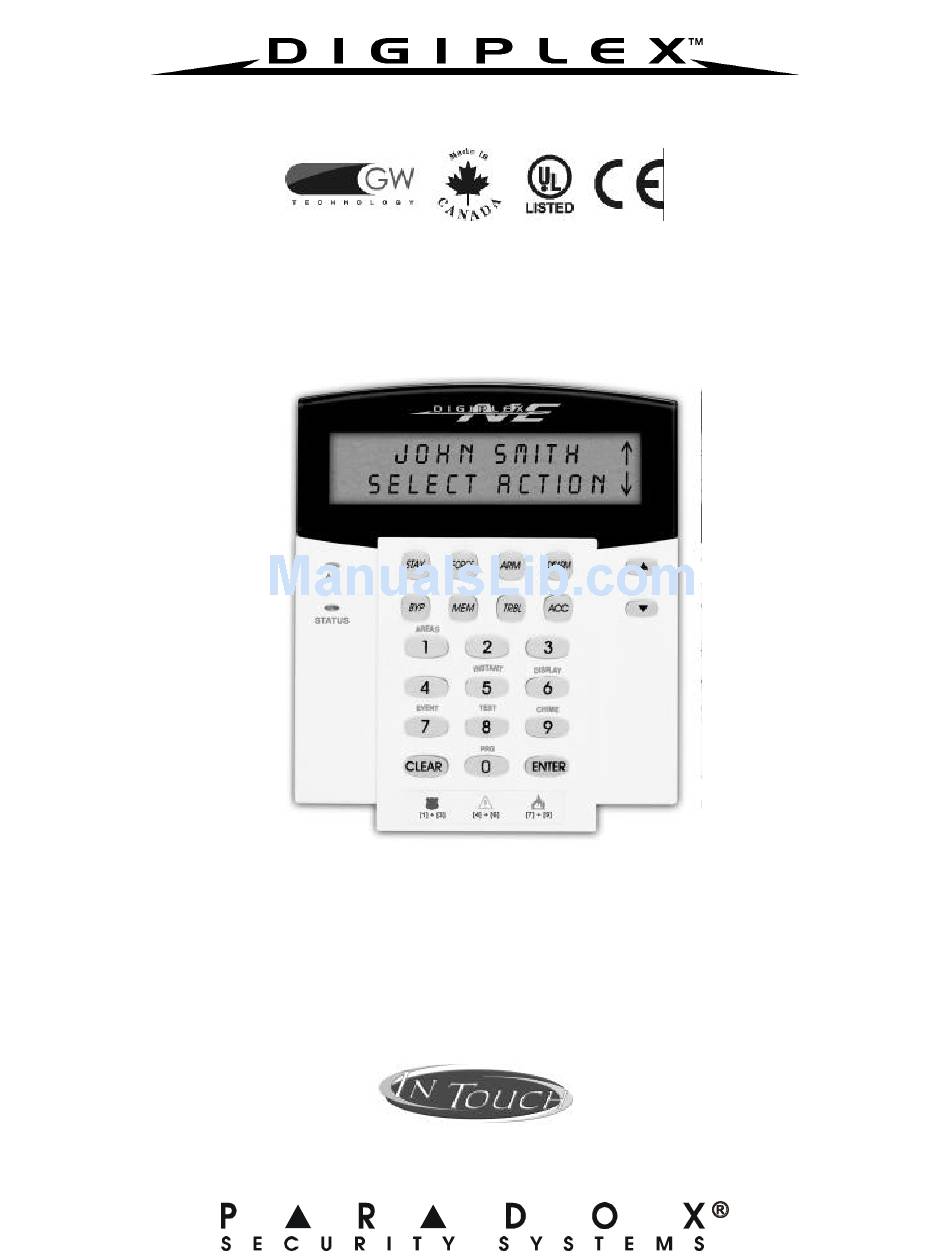

  • Page 1 LCD Keypad & Access Control LCD Keypad LCD Keypad & Access Control LCD Keypad DGP2-641 / DGP2-641AC System Manager’s Manual System Manager’s Manual Also includes Operating Instructions...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION ............4 Delayed Fire Zone ..............17 Fire Safety Tips ................18 Legend..................4 Minimizing Home Fire Hazards..........18 Home Fire Warning System ............18 BASIC OPERATION ............. 4 Burglar Alarm................18 Auditory Feedback (Beep Tones) ..........4 Confidential Mode ...............
  • Page 4: Introduction

    1.0 INTRODUCTION Your Digiplex Security System is an advanced technology security system that will provide you with reliable security protection and powerful features that are easy to use. The elegant and user-friendly LCD keypad will allow you easy access to your security system's functions and information at the touch of a button. The 32-character LCD screen will display messages and menus to guide you through the system’s operations.
  • Page 5: Confidential Mode

    CONFIDENTIAL MODE Your Installer can program keypads to not display the status of your system automatically by changing the LCD screen to Confidential Mode. In Confidential Mode: • The zones and status messages will NOT be displayed • The indicator lights will NOT illuminate •...
  • Page 6: Stay Arming

    STAY ARMING Stay arming will partially arm How do I Stay arm? your system to permit you to 1) Enter your [ ACCESS CODE remain in your home or office 2) Press the [ ] button. STAY by arming the outer zones 3) If you have access to more than one area, select the area(s) you wish to (perimeter) of the protected Stay arm (refer to section 2.3 on page 5).
  • Page 7: One-Touch Buttons

    ONE-TOUCH BUTTONS If enabled by your Installer, you can access the following features without using your User Access Code by pressing and holding the desired One-Touch button. BUTTON FEATURE BUTTON FEATURE Regular arm Disarm a Stay/Instant armed area DISARM Stay arm Instant arm STAY Force arm...
  • Page 8: Disarming An Armed System

    DISARMING AN ARMED SYSTEM You can only disarm an area How do I disarm the system? to which your User Access 1) Enter your [ ACCESS CODE Code assigned. User 2) Press the [ ] button. DISARM Access Codes with the “Arm If you have access to more than one area, select the area(s) you wish to Only”...
  • Page 9: Programming User Access Codes

    PROGRAMMING USER ACCESS CODES The System Master and Users with the Master feature can program User Access Codes with User Options and Area Assignments. Figure 5.1 on page 9 describes the steps you would follow to program User Access Codes. If the keypad emits a Rejection Beep at any point during the programming procedure, you may have chosen an existing User Code or you do not have access to certain User Options (section 5.4) and Area Assignments (step 7 in Figure 5.1 on page 9).
  • Page 10 Users are able to perform actions (arming, disarming, etc.) only in the area(s) they are assigned. To assign an area(s) to a User Access Code, enter the number corresponding to the area you wish to assign (i.e. [1] = area 1, ...[4] = area 4). Press the [q q ] button to return to the User Options;...
  • Page 11: User Options

    USER OPTIONS Options [1] and [2]: Master Feature When option [1] is OFF, the User cannot program other Users into the system. When option [1] is ON and option [2] is OFF, the User can only modify existing User Access Codes. When both options [1] and [2] are ON, the User has Full Master rights.
  • Page 12: Using Access Control

    Option [8]: Access to Armed Access Control Doors When option [8] is enabled, the Access Control Card can be used to open an armed Access Control Door. When a valid Access Control Card is presented to a reader that is assigned to a zone and the zone is armed, access will be granted and the Entry Delay will begin.
  • Page 13: How Access Control Works

    HOW ACCESS CONTROL WORKS To illustrate how Access Control functions, we will use three simple Access Control System examples: Figure 6.1: Example A Bonnie’s Access Control Card is programmed with Access Level 01 and Schedule 01. If she presents her card to the reader on Door 02 on Tuesday, August 3 at 3 p.m., she will gain access to the room.
  • Page 14: Trouble Display

    7.0 TROUBLE DISPLAY If your system experiences any How do I view the Trouble Display? problems, “Trouble(s) [TRBL] to 1) Press the [ ] button when “Trouble(s) [TRBL] to View” appears on the TRBL View” will appear on the LCD LCD screen.
  • Page 15: Additional Features

    8.0 ADDITIONAL FEATURES PROGRAMMABLE OUTPUTS (PGMS) Your system includes Programmable Outputs (PGMs) that can be programmed by your Installer. A PGM triggers when a predetermined event or series of events occurs in your system. The PGMs can be programmed to reset smoke alarms, turn on light switches, open or close garage doors and much more.
  • Page 16: Programming Chime Zones

    PROGRAMMING CHIME ZONES You can program the keypad How do I program chime zones? to emit a rapid, intermittent 1) Enter your [ ACCESS CODE beep tone whenever 2) Press the [9] button. designated zones are opened 3) Press the [1] button to chime a zone. Then enter the or only when opened between number corresponding to the zone to be chimed, or use certain hours.
  • Page 17: System Maintenance

    SYSTEM MAINTENANCE Under normal use your system requires no maintenance other than regular testing. We recommend that your Installer change the battery every three years. SYSTEM TEST Speak to your Installer before How do I conduct the system test? conducting a System Test 1) Call your Central Monitoring Station to advise them that you are testing your since the system must be system.
  • Page 18: Fire Safety Tips

    Figure 10.1: Delayed Fire Zone 10.3 FIRE SAFETY TIPS How should you prepare in case of a fire in your home or business? • Remind everyone to escape first, then call for help. • Develop a fire escape plan and designate a meeting place outside. •...
  • Page 19: Voice-Assisted Arm/Disarm Module

    • You will only be able to arm or disarm areas that your User Code has access to. • If you were to arm an area with an open zone, Digiplex will Force arm the area. This will only happen with User Access Codes that have the Force arming feature enabled.
  • Page 20: When Using Your Intouch

    • In some cases, your telephone’s tone may not be powerful enough to interrupt the InTouch’s voice prompt. If this is the case, simply wait for the InTouch’s voice prompt to finish before entering your action. • If your Digiplex Security System and InTouch share the same telephone number, you may be interrupted at times when using your InTouch.
  • Page 21: Intouch System Checklist

    The InTouch then prompts Nelson with the following: “Area 1 Disarmed” “Area 2 Armed” “Output is Deactivated” “To modify, enter Area number” Nelson presses the [2] key on his telephone to disarm Area 2. The InTouch then prompts Nelson with the following: “Area 1 Disarmed”...
  • Page 22 Warranty The Seller warrants its products to be free from defects in materials and workmanship under normal use for a period of one year (except as indicated otherwise). Except as specifically stated herein, all express or implied warranties whatsoever, statutory or otherwise, including without limitation, any implied warranty of merchantability and fitness for a particular purpose, are expressly excluded.
  • Page 23: Index

    INDEX Chime Zones ............16 ..........15 Clock, Set Time and Date Access Codes ............5 Confidential Mode Deleting .............8 InTouch Access Codes ........19 ............9 Programming ............8 System Master ...............15 Date, Set User ..............8 Deactivating a Security System ........7 Access Control Delay Timer Card Assignment ..........10 Entry...
  • Page 24 Settings ............15 Burglar Alarm ...........16 Fire Alarm ............16 ............7 Keyswitch Arming ..........17 System Maintenance .............17 System Test Time, Set ...............15 ..............4 LCD Keypad Timed Auto-Arming ............7 ............10 Level, Access Timer Entry Delay ............7 Exit Delay ............5 .............8 Master Code Trouble Master Feature, in User Options .........11 AC Failure...
