LCD Keypad
DGP2-641
System Manager's Manual
Also includes
Operating Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DGP2-641 and is the answer not in the manual?

Questions and answers

Related Manuals for Digiplex DGP2-641

Summary of Contents for Digiplex DGP2-641

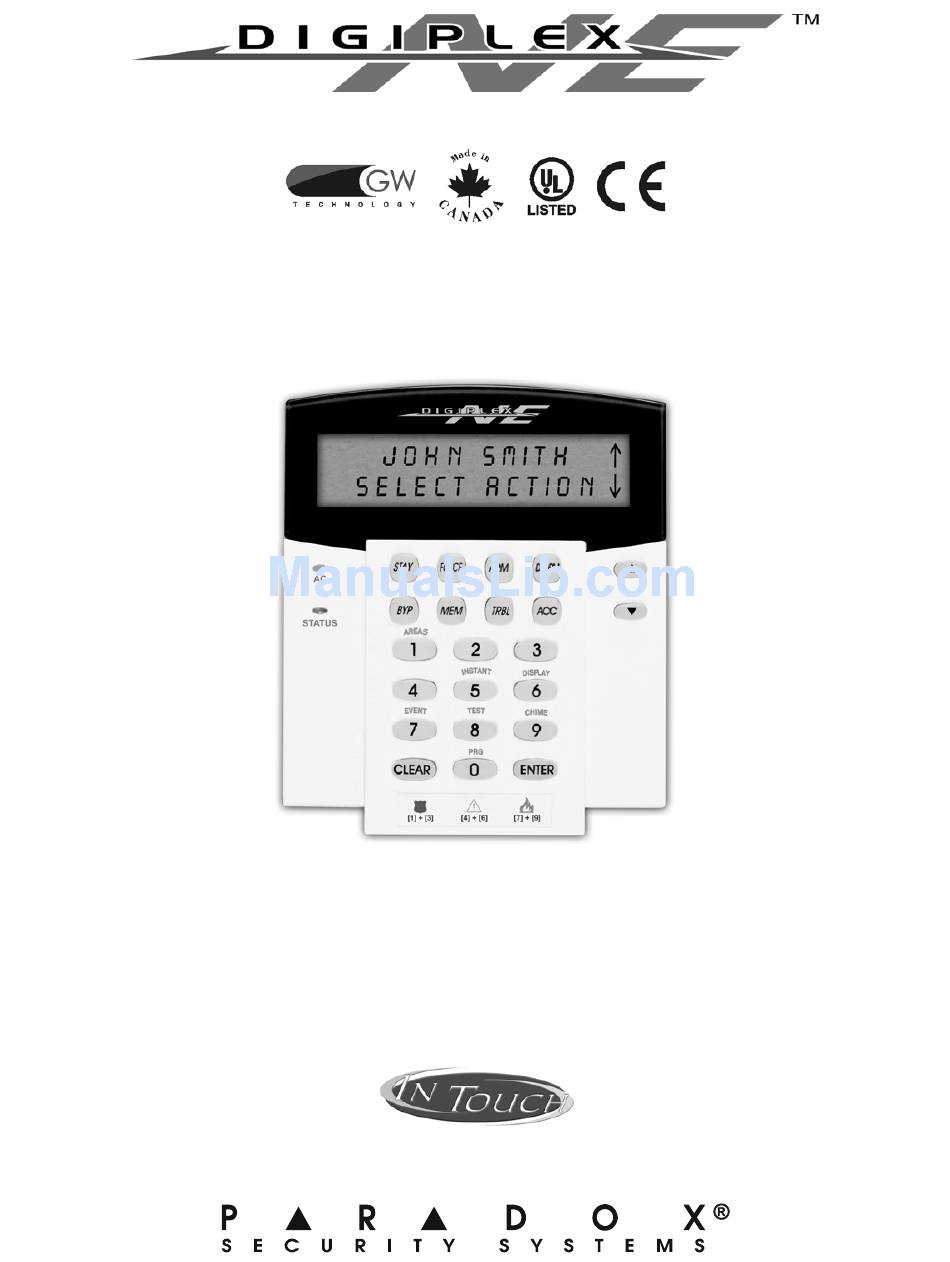

  • Page 1 LCD Keypad DGP2-641 System Manager’s Manual Also includes Operating Instructions...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS LCD KEYPAD MODULE System Maintenance..............18 System Test ................18 INTRODUCTION ............3 FIRE AND BURGLAR ALARMS......... 18 Legend..................3 Standard Fire Zone ..............18 Delayed Fire Zone ..............19 BASIC OPERATION ............. 3 Fire Safety Tips ................19 Auditory Feedback (Beep Tones) ..........
  • Page 4 © 2002-2003 Paradox Security Systems. DigiplexNE, InTouch, WinLoad and NEware are trademarks or registered trademarks of Paradox Security Systems Ltd. or its affiliates in Canada, the United States and/or other countries. All rights reserved. Specifications may change without prior notice.

  • Page 5: Lcd Keypad Module

    1.0 INTRODUCTION Your DigiplexNE Sabotage-Proof High-Security System is an advanced technology security system that will provide you with reliable security protection and powerful features that are easy to use. The elegant and user-friendly LCD keypad will allow you easy access to your security system's functions and information at the touch of a button. The 32-character LCD screen will display messages and menus to guide you through the system’s operations.

  • Page 6: Confidential Mode

    CONFIDENTIAL MODE Your Installer can program keypads to not display the status of your system automatically by changing the LCD screen to Confidential Mode. In Confidential Mode: • The zones and status messages will NOT be displayed • The indicator lights will NOT illuminate •...

  • Page 7: Stay Arming

    STAY ARMING Stay arming will partially arm How do I Stay arm? your system to permit you to 1) Enter your [ ACCESS CODE remain in your home or office 2) Press the [ ] button. STAY by arming the outer zones 3) If you have access to more than one area, select the area(s) you wish to (perimeter) of the protected Stay arm (refer to section 2.3 on page 4).

  • Page 8: One-Touch Buttons

    ONE-TOUCH BUTTONS If enabled by your Installer, you can access the following features without using your User Access Code by pressing and holding the desired One-Touch button. BUTTON FEATURE BUTTON FEATURE Regular arm Disarm a Stay/Instant armed area DISARM Stay arm Instant arm STAY Force arm...

  • Page 9: Disarming An Armed System

    DISARMING AN ARMED SYSTEM You can only disarm an area How do I disarm the system? to which your User Access 1) Enter your [ ACCESS CODE Code assigned. User 2) Press the [ ] button. DISARM Access Codes with the “Arm If you have access to more than one area, select the area(s) you wish to Only”...

  • Page 10: Find Next Free User

    FIND NEXT FREE USER This feature automatically How do I find the next free user? searches your system for the 1) Enter your [ ] (System Master Code or User Access Code with ACCESS CODE next available unassigned Master feature). User Access Code.

  • Page 11: Deleting User Access Codes

    5.4.2 PECIAL UNCTION ] = Insert Space STAY Pressing the [ ] key inserts a blank space in the current cursor position. STAY ] = Delete FORCE Pressing the [ ] key will delete the character or blank space found at the current cursor position. FORCE ] = Delete Until the End Pressing the [...

  • Page 12: Programming User Access Codes

    PROGRAMMING USER ACCESS CODES The System Master and Users with the Master feature can program User Access Codes with User Options and Area Assignments. Figure 5.1 on page 10 describes the steps you would follow to program User Access Codes. If you wish to program User Access Codes using the NEware Software, please contact your Installer for information.
  • Page 13 Users are able to perform actions (arming, disarming, etc.) only in the area(s) they are assigned. To assign an area(s) to a User Access Code, enter the number corresponding to the area you wish to assign (i.e. [1] = area 1, ...[8] = area 8). Press the [ ] button to return to the User Options;...

  • Page 14: User Options

    USER OPTIONS Options [1] and [2]: Master Feature When option [1] is OFF, the User cannot program other Users into the system. When option [1] is ON and option [2] is OFF, the User can program and modify User Access Codes (P.I.N. only) and User Labels.

  • Page 15: Using Access Control

    Options [4] and [5]: Arming with Card Options 4 and 5 define the type of arming when arming with an Access Control Card (refer to section 6.2.1 on page 13). You can either Regular arm, Stay arm, Force arm, or Disable the Arming with Card feature. [4] ON, [5] OFF = Regular Arm [4] OFF, [5] ON = Stay Arm [4] and [5] ON = Force Arm...

  • Page 16: How Access Control Works

    The Access Control card must be: • presented to a door during its assigned Schedule (refer to step 8 in Figure 5.1 on page 10). • presented to a door within its assigned Access Level (refer to step 8 in Figure 5.1 on page 10). •...

  • Page 17: Trouble Display

    Figure 6.3: Example C If we change Bonnie’s Access Level to 02 and she presents her card to the reader on Door 02 on Tuesday, August 3 at 3 p.m., she will be denied access. 7.0 TROUBLE DISPLAY If your system experiences any How do I view the Trouble Display? problems, “Trouble(s) [TRBL] to 1) Press the [...

  • Page 18: Event Record Display

    EVENT RECORD DISPLAY The Event Record Display will How do I view the Event Record? record user-initiated 1) Enter your [ ACCESS CODE actions that occurred in your 2) Press the [7] button. system as well as any alarms 3) If you have access to more than one area, select the area(s) you wish to troubles (i.e.

  • Page 19: Set Time & Date

    SET TIME & DATE How do I reset the time and date? 1) Enter your [ ] and press the [ ] button. ACCESS CODE TRBL 2) Press the [8] button. 3) To change the time, place the cursor under the number you want to change by using the [ ] button and enter the time according to a 24-hour clock (i.e.

  • Page 20: Testing And Maintenance

    9.0 TESTING AND MAINTENANCE BURGLAR ALARM TESTING Two people are needed to complete this test. One person will watch the LCD screen on the keypad while the other person walks around the protected areas and opens the zones (i.e. opens the doors and windows that are protected, walk in the path of the motion detectors, etc.).

  • Page 21: Delayed Fire Zone

    10.2 DELAYED FIRE ZONE If the zone is a Delayed Fire What do I do if the fire alarm is accidentally triggered? Zone, there is an automatic 1) Press the [ ] button within 30 seconds of the alarm. CLEAR delay before your system 2) Clear the problem from the area (i.e.

  • Page 22: Minimizing Home Fire Hazards

    10.4 MINIMIZING HOME FIRE HAZARDS How can you avoid the three most common causes of fires at home? • Never leave cooking food unattended. It is the leading cause of fire injuries. Cooking fires often result from unattended cooking and human error, rather than mechanical failure. •...

  • Page 23: Voice-Assisted Arm/Disarm Module

    Voice-Assisted Arm/Disarm Module Operating Instructions 11.0 INTRODUCTION Congratulations on choosing the Paradox InTouch Voice-Assisted Arm/Disarm Module (APR3-ADM2). InTouch turns any touch-tone telephone into a keypad. With InTouch, you can now arm or disarm your DigiplexNE Sabotage- Proof High-Security System as well as activate or deactivate your InTouch’s output all from your telephone. Using detailed voice prompts to guide your way, the InTouch is as simple as picking up your telephone.

  • Page 24: When Using Your Intouch

    • Your installer can program the output to deactivate either manually or follow a timer. If programmed to be deactivated manually, the output will remain activated until you deactivate it. If programmed to follow a timer, the output will deactivate after the timer has elapsed. 14.4 WHEN USING YOUR INTOUCH...

  • Page 25: Intouch System Checklist

    The InTouch then prompts Nelson with the following: “Area 1 Disarmed” “Area 2 Armed” “Output is Deactivated” “To modify, enter Area number” Nelson presses the [2] key on his telephone to disarm Area 2. The InTouch then prompts Nelson with the following: “Area 1 Disarmed”...

  • Page 26: Appendix 1: Hebrew Special Characters

    18.0 APPENDIX 1: HEBREW SPECIAL CHARACTERS Refer to the following tables when programming the user labels of a Hebrew keypad. Instead of using Tables 1 and 2 (pages 8 and 9), use Tables 4 and 5 below. Refer to section 5.4 on page 8 for information on programming user labels.

  • Page 27: Appendix 2: Russian Special Characters

    19.0 APPENDIX 2: RUSSIAN SPECIAL CHARACTERS Refer to the following tables when programming the user labels of a Russian keypad. Instead of using Tables 1 and 2 (pages 8 and 9), use Tables 6 and 7 below. Refer to section 5.4 on page 8 for information on programming user labels.

  • Page 28: Index

    INDEX ............12 Activating ............13 Arming with Access Codes .............11 Assign .............9 Deleting ..........14 Disarming with ........21 InTouch Access Codes ............9 Characters, Special ............8 Labelling ............17 ............10 Chime Zones Programming ............7 ..........17 System Master Clock, Set Time and Date ..............7 ..........13 User Code Follows Schedule ............4...
  • Page 29 .......21 Activating a Programmable Output ............21 Arming ............19 Safety Tips, Fire ....21 Deactivating a Programmable Output ............21 Schedule Disarming ............13 ............21 Code Follows How to Use ..........22 Telephone Buttons Schedule Tolerance Window, see Add Tolerance to User Sched- ..............11 Schedules ........8 Search, Next Available Code Keypad, LCD...
  • Page 30 Warranty The Seller warrants its products to be free from defects in materials and workmanship under normal use for a period of one year (except as indicated otherwise). Except as specifically stated herein, all express or implied warranties whatsoever, statutory or otherwise, including without limitation, any implied warranty of merchantability and fitness for a particular purpose, are expressly excluded.
  • Page 32 PRINTED IN CANADA - 06/2003 DGP2NE641-EU03...
