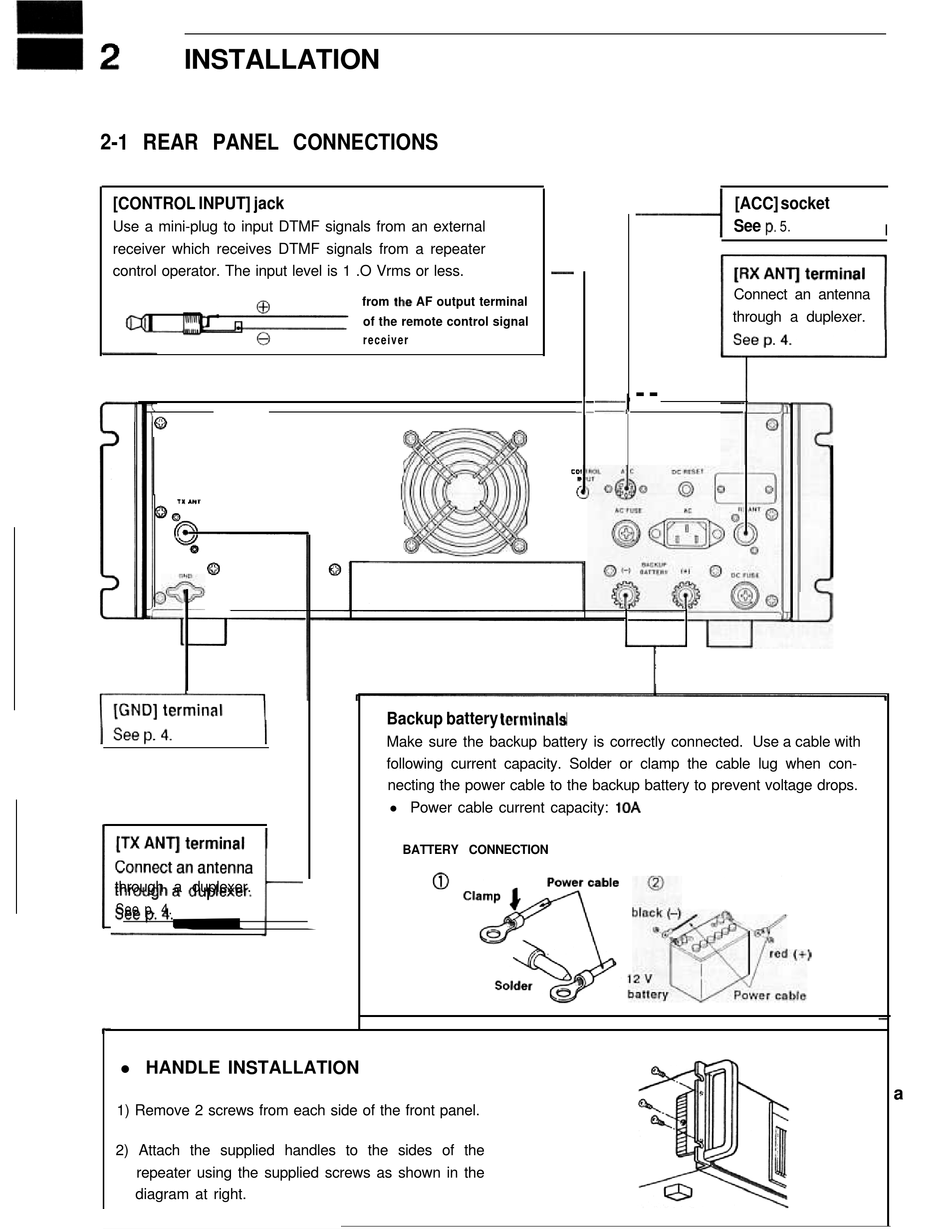

INSTALLATION

2-1 REAR PANEL CONNECTIONS

[CONTROL INPUT] jack
Use a mini-plug to input DTMF signals from an external
receiver which receives DTMF signals from a repeater
control operator. The input level is 1 .O Vrms or less.
[TX ANT] terminal
Connect an antenna
through a duplexer.
See p. 4.
HANDLE INSTALLATION
l
1) Remove 2 screws from each side of the front panel.
2) Attach the supplied handles to the sides of the
repeater using the supplied screws as shown in the
diagram at right.
from the AF output terminal
of the remote control signal
receiver
Backup battery terminals
Make sure the backup battery is correctly connected. Use a cable with
following current capacity. Solder or clamp the cable lug when con-
necting the power cable to the backup battery to prevent voltage drops.
Power cable current capacity: 10A
l
BATTERY CONNECTION
[ACC] socket
See
Connect an antenna
through a duplexer.
. - -
I
a
