AVer H300 Installation Manual

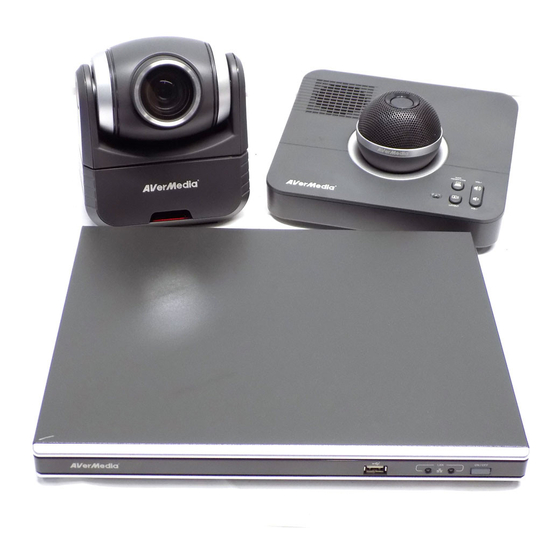

AVer H300/H100 Installation Guide

Thank you for choosing AVer video conferencing solutions. This hardware installation guide serves as a reference for making the connections

needed to get your new system up and running as quickly as possible.

1. Before making the connections

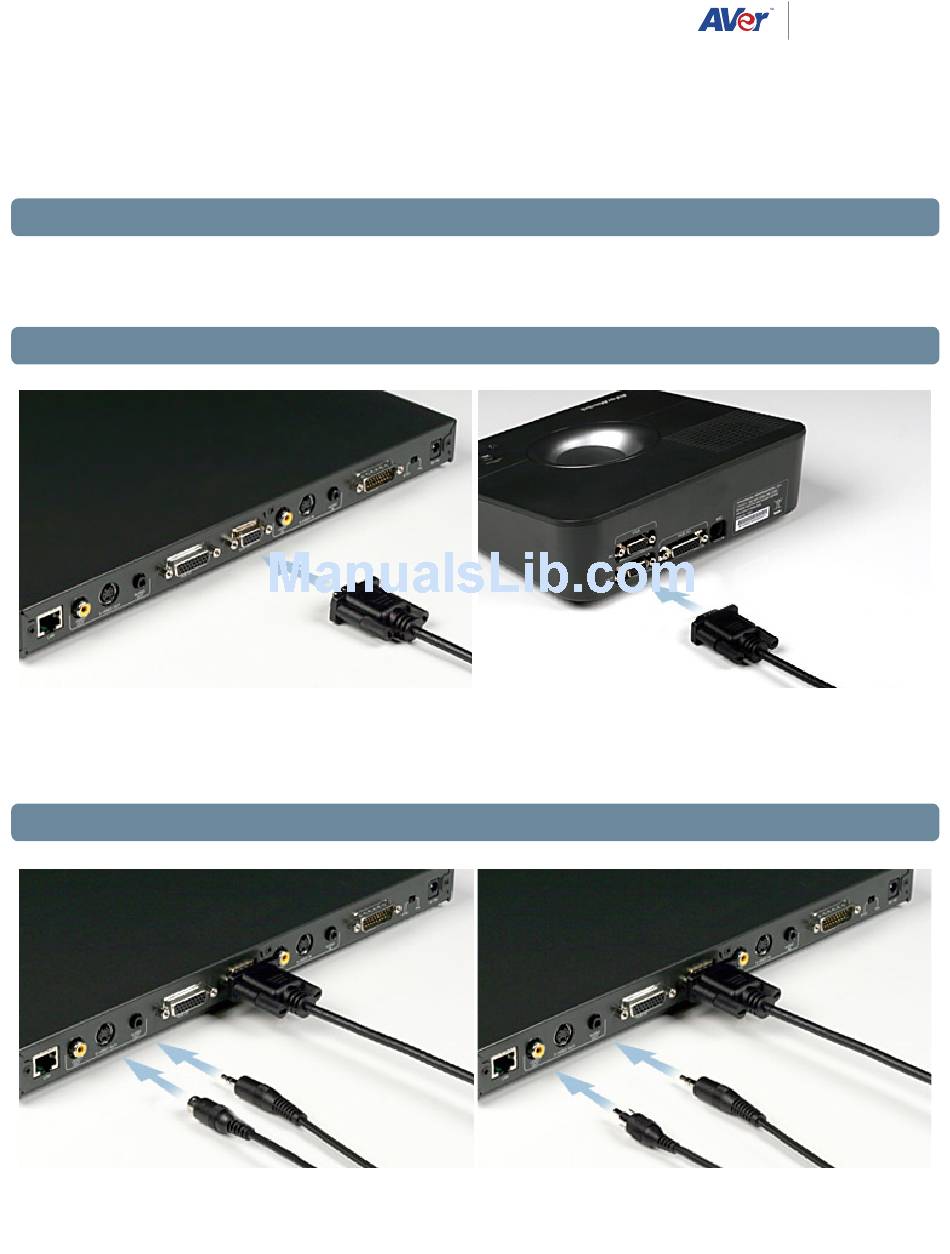

Make sure all devices are powered off. Follow the illustrated connection diagrams below and also refer to the user

manual of the device you are connecting to the video conferencing system.

Connect the VGA input port of the display device to either VGA OUT 1 (main system) or VGA OUT 2 (Table Hub). Both

VGA OUT 1 and VGA OUT 2 can be used at the same time. Shared data and captured images will be displayed thru VGA

OUT 2 when implementing dual display mode.
