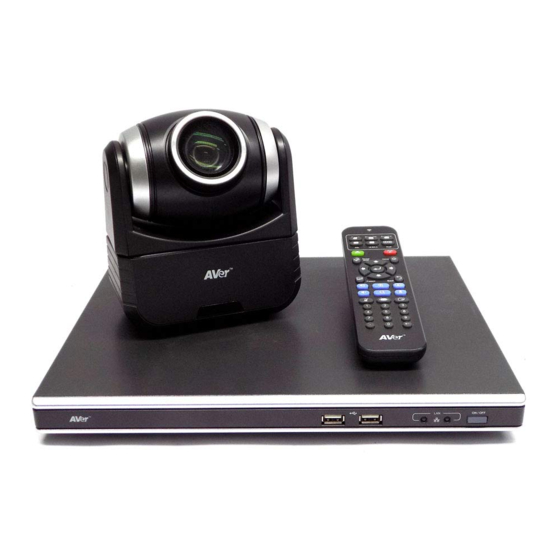

AVer HVC310 Installation Manual

HVC310/HVC110 Installation Guide

Thank you for choosing AVer video conferencing solutions. This hardware installation guide serves as a reference for making the connections

needed to get your new system up and running as quickly as possible.

1. Before making the connections

Make sure all devices are powered off. Follow the illustrated connection diagrams below to ensure all essential cables

are properly connected. Refer to the user manual of the device you are connecting to the video conferencing system.

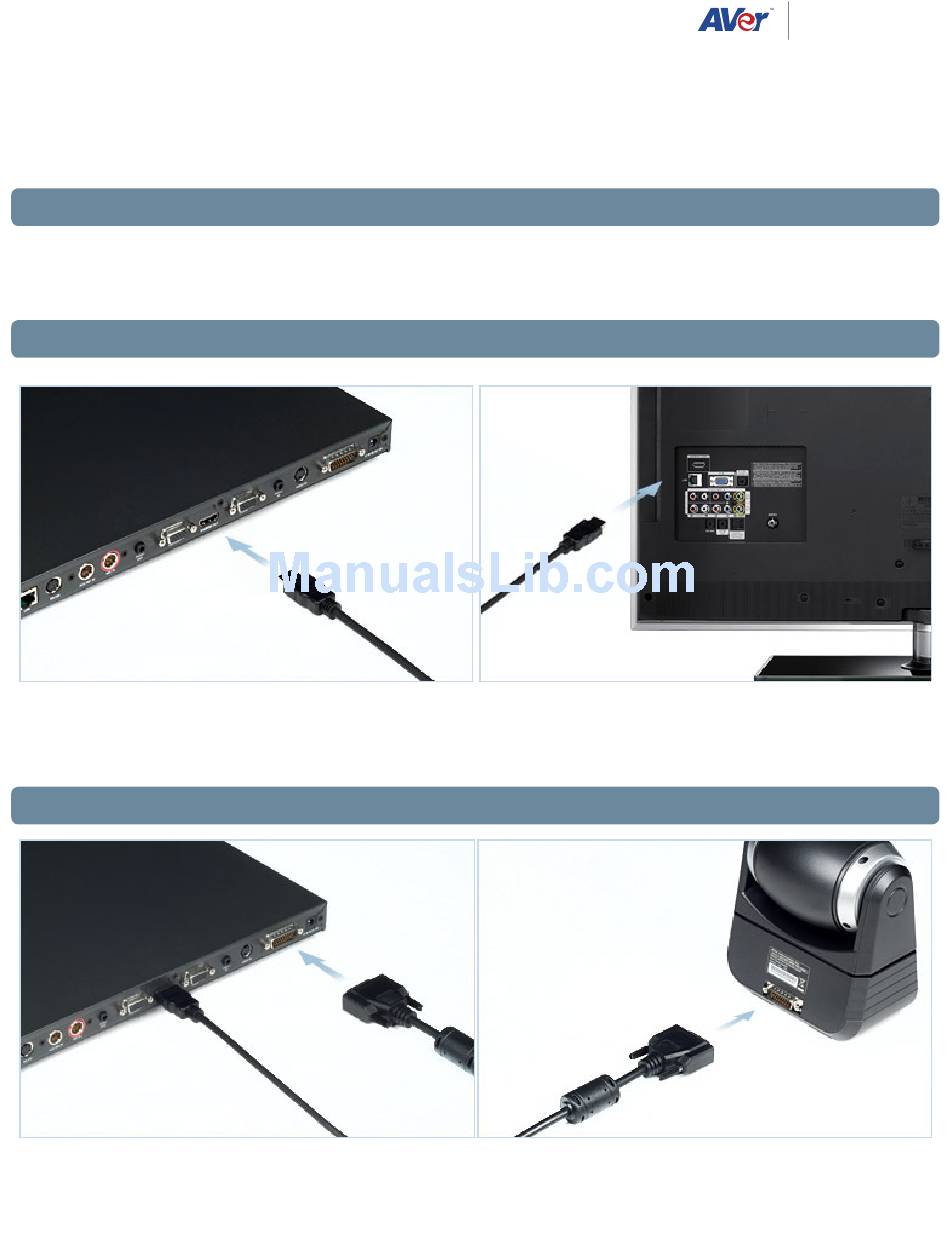

Connect one end of the HDMI cable to the HDMI OUT port on the back of the codec, and the other end to your HDMI

enabled display device. If you are using dual displays, connect the VGA cable to the VGA OUT port on the codec and

the VGA input of your second display.

If you are using the included 26-pin D-sub camera cable, connect one end to CAMERA IN port on codec and the other

end to the camera

formerly

AVerMedia In formation

Table of Contents

Do you have a question about the HVC310 and is the answer not in the manual?

Page 1 AVerMedia In formation HVC310/HVC110 Installation Guide Thank you for choosing AVer video conferencing solutions. This hardware installation guide serves as a reference for making the connections needed to get your new system up and running as quickly as possible. 1. Before making the connections Make sure all devices are powered off.
Page 2 4. Connecting the microphone(s) To connect the directional microphone, connect the end of the 6-pin mini XLR cable to the MIC IN port on the codec and the blue end to the blue MIC OUT port on the microphone. If you are connecting multiple mics, daisy-chain them by connecting the cables matching the colors (red cable end to mic port, etc.)
Page 3 ©2011 by AVer Information Inc. All rights reserved. No part of this document may be reproduced or transmitted in any form, or by any means without the prior written permission of AVer Information Inc. AVer Information Inc. reserves the rights to modify its models, including their characteristics, specifications, accessories and any other information stated herein without notice.
