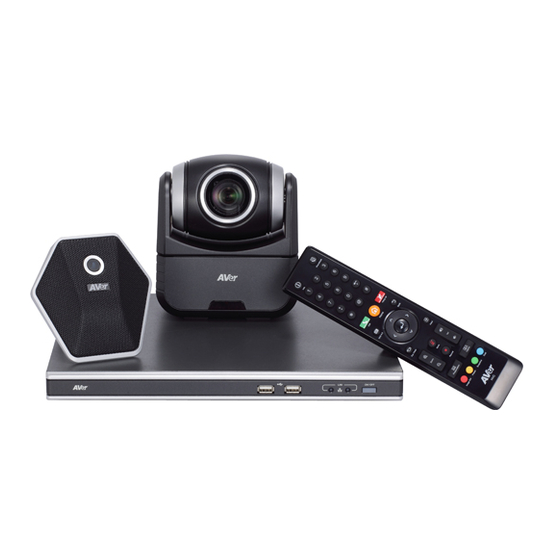

AVer HVC Series Quick Installation Manual
Video conferencing system
Hide thumbs
Also See for HVC Series:
- User manual (79 pages) ,
- Quick installation manual (10 pages) ,
- User manual (74 pages)
Related Manuals for AVer HVC Series
Summary of Contents for AVer HVC Series
- Page 1 HVC-Series Video Conferencing System Quick Installation Guide...
-
Page 2: Package Contents
Package Contents HVC-Series Video Conferencing System Quick Installation Guide... - Page 3 ENGLISH Main System Quick Installation Guide Warranty Card L-Bracket (camera stand) *Optional 3.5mm to RCA cable S-Video to Composite Converter 3-Pin Standard XLR Adapter DB9 RS232 Converter HDMI Cable 10. 6 Pin Mini XLR MIC Cable (10M) 11. 6 Pin Mini XLR MIC Cable (5M) (Optional for HVC130/110) 12.
-
Page 4: Remote Control
Remote Control The remote control requires two (2) “AAA” size batteries (supplied), make sure batteries are installed properly before using. Aim the remote control to the HVC camera infrared sensor to operate the unit. Name Function Info Display the call statistics information. Numeric Pad Use to enter numeric number. - Page 5 Move back one space and delete one character at a time. (23) Phonebook Search contact to make a call. Enter to add, edit, delete or create group contact entry. * Available in HVC330/310 model only. For more information, visit http://www.aver.com...
- Page 6 VGA cable Visualizer HDMI cable HDMI monitor RJ-45 cable VGA cable 26 Pin D-Sub cable AUX MIC IN MIC IN VGA IN VIDEO IN CAMER A IN DC 19V Suggested MIC Reception Range AVer Wall outlet Power adapter Power cord...
-
Page 7: Bandwidth Requirements
From the remote press “Home” -> “Setting” -> “System Settings” -> “Network” HD720P Bandwidth Requirements 1Mbps (per site) 768Kbps (w/3 site) 256Kbps (per site) *only available with the HVC330/310 AVer HVC H.323 Related Port Usage for Firewall Setup Port Function Type 1719 Gatekeeper 1720 H.323 call setup... - Page 8 (Please pick the scenario most suitable for your network environment) 1. Public IP Configuration (Outside of Firewall) Do you have a dedicated public IP address for the AVer HVC System? 2. Private IP Configuration (Behind Firewall with Port Forwarding) 3. Behind Firewall with H.323 ALG Setup 4.
- Page 9 The WebTool allows network administrators to access AVer HVC remotely. To access the WebTool, make sure the AVer HVC unit has a valid IP and is connected to your network. From any network computer, open a web browser and input the IP address of your AVer HVC unit in the URL field.
-
Page 10: Troubleshooting
- Verify the security setting for MAC address in your network device. 2. Video conference call is established but no video or voice - If you are connecting to AVer HVC with firewall, make sure you have done the port forwarding correctly. For non H.323 ALG firewall, please set the NAT configuration and the WAN IP address on AVer HVC system is entered.
