Chapter 7
Scenario 1: Residential user.
Rules
Go to the classification menu an select the IP QoS Rules tab:
Expert mode -> IP Router -> Classification
Here we have to define one or more rules to get this label assigned to the proper
packets.

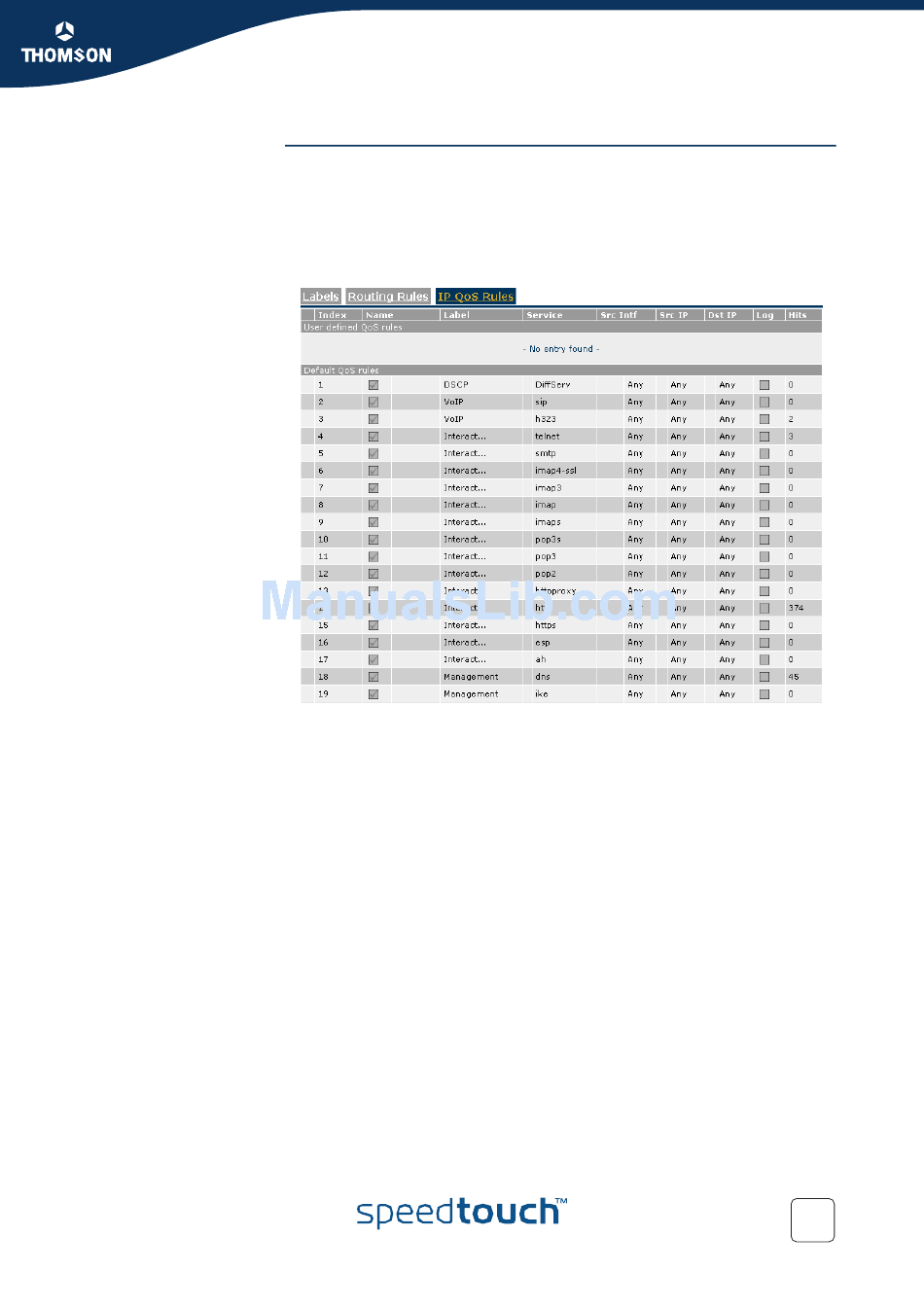

In this screen the you will see the user defined IP QoS rules, to see the default IP
QoS rules click expand.
In the list that is now shown you will see fourteen rules with a label name
Interactive.
The first rule has index 4 and covers the telnet service. It applies to all traffic from
any Interface with any IP address to any IP address.
The second rule has index 5 and covers the smtp service. It applies to all traffic from
any Interface with any IP address to any IP address.
This goes on for all rules defined. We will have a closer look at the rule for HTTP
traffic.
This rule has index 14 and covers the http service. It applies to all traffic from any
Interface with any IP address to any IP address.
The services telnet, smtp and http are defined in the expressions page.
