Silver label
E-NIT-CTC-20041213-0013 v0.5

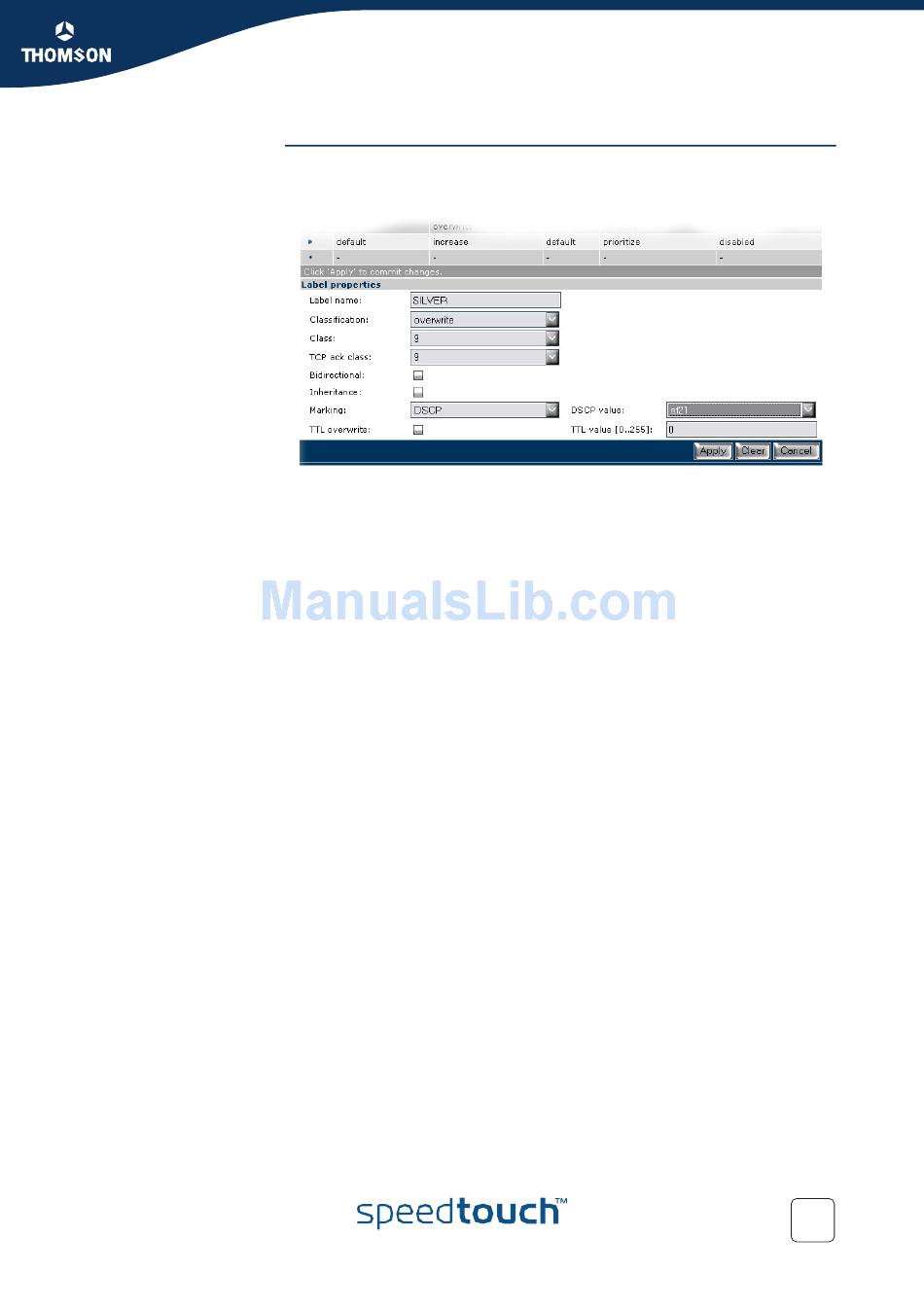

To create a label called Silver proceed as followed:
On the Label page click new at the bottom. You will now get a configuration
1
screen at the bottom of the page.
Set the label name to
2
Set classification to
3
overwrite.
Set class to
4
9.
Set TCP ack class to
5
9.
Set Marking to
6
DSCP.
Set the DSCP value to
7
Click Apply to add the label to the list.
8
The label name can be any chosen name. Classification is set to overwrite as we
want to specify the internal class our selves. The internal class is set to 9 so packets
who get this label assigned will be placed in WFQ3.
DSCP will be used for TOS marking and will be set to af21.
Scenario 2: Business user with TOS marking.
SILVER.
af21.
