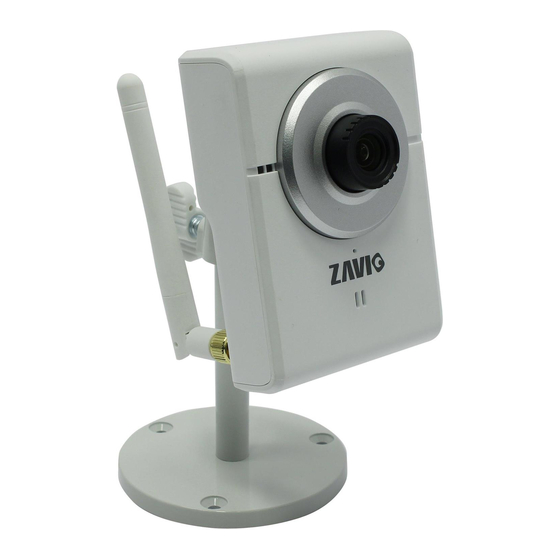

Summary of Contents for Zavio F3102
-
Page 2: Table Of Contents
Content Safety Instruction ................................Minimum System Requirement & Product Feature ....................Minimum System Requirement ............................ Product Feature .............................. Main Page ..................................Basic Setup ................................ Account ................................Network................................ Date Time ..............................Video ................................Audio................................Live View................................. Video ................................Audio................................Camera Setting ............................. PTZ Control .............................. -
Page 3: Safety Instruction
User Manual Safety Instruction Before you use this product This product has been designed with safety in mind. However, the electrical products can cause fires which may lead to serious body injury if it is not used properly. To avoid such accidents, be sure to heed the following. - Page 4 In case of a breakdown In case of system breakdown, discontinue use and contact your authorized dealer. In case of abnormal operation If the unit emits smoke or an unusual smell, If water or other foreign objects enter the cabinet. ...
-
Page 5: Minimum System Requirement & Product Feature
Minimum System Requirement & Product Feature System Requirement For normal operation and viewing of the network camera, it’s recommended that your system meet these minimum requirements for proper operation: Item Requirements Minimum Intel® Core 2 Duo or higher (Core i3 or above is recommended) Graphic Card 256 MB RAM graphic cards... -
Page 6: Product Feature
Product Features SYSTEM H.264 / MPEG-4 / Motion JPEG: Resolutions Higher than 1024 * 800 pixels Screen Resolution H.264 / MPEG-4 / Motion JPEG Compressing format Up to 30 fps at 1280x800 Frame Rate Rotation: Mirror, Flip, Mirror Flip Brightness / Contrast / Saturation Image settings Overlay capabilities: time, date, text and privacy image Image snapshot... -
Page 7: Main Page
Main Page Toolbar of Main Page... - Page 8 Client Setting Click the drop-down menu to choose video compression mode of Live View among H.264, MPEG-4, MJPEG and H.264. Profile Note: As long as the operating system is not able to afford loading under H.264 mode, please downgrade the mode to MPEG-4 or MJPEG. Select the desired view size of image resolution between Fit View Size Screen and Full Screen.
- Page 9 Click the Home button and it brings you back to the center no matter what position you are Move the camera view to the direction that the various arrows you click on. Use the various direction arrows to steer the camera view to the required position， and name Preset it for the specified position.
-
Page 10: Basic Setup
Basic Setup Account Account List The device default account and password setting is “admin / admin”. That means everyone who knows IP address can access the device including all configuration. It is necessary to create a new password if the device is intended to be accessed by specific ones. -
Page 11: Network
Network TCP/IP Internet Protocol Version 4 (TCP/IPv4) Obtain an IP address automatically (DHCP): If a DHCP server is installed on the network, to select this while the IP address is assigned by the DHCP server. Obtain DNS server address automatically: Select this to obtain the address of DNS server automatically. - Page 12 Note: Reboot the IP Camera after the network setting has been made. Note: If you connect the IP Camera with your computer directly, the default network domain of camera is 192.168.1.xx PPPoE If your ISP provides Dynamic IP with authentication by username and password, type all PPPoE information in this part.
- Page 13 Use the following DNS server address: Select this when you set the fixed address as the IP address of DNS server. Primary DNS server: Enter the IP address of the primary DNS server. Secondary DNS server: Enter the IP address of the secondary DNS server. Note : 1.
- Page 14 3. Then click “Refresh”. All access points (AP) around you will show up. 4. Select the AP you wish to connect and click “Connect”. 5. Enter password at passphrase if you need. If you don't know the setting of the wireless AP, please ask your network administrator.
-
Page 15: Date Time
Configuration Method PBC – Select to start WPS configuration. PIN – Select and click Generate new PIN to generate a new PIN code and start WPS configuration. This list is the result of network scan that only provide wireless AP with WPS function. It will be shown where the network is currently linked. -
Page 16: Video
Note: The NTP server (Network Time Protocol) is the time server which is an Internet standard protocol built on the top of TCP / IP. This assures accurate synchronization to the millisecond of computer clock times in a network of computers. Video Video Setting Image... - Page 17 Text information can be showed on the display screen, such as Date / Time and the user-defined title. Privacy Mask Privacy Mask is an area of solid color that bans users from viewing part of monitored area. Click “Add” and a setting pop-up window comes out. A translucent rectangle is located at up left of the image, drag it to where you wish to cover and resize it.
-
Page 18: Audio
Day / Night ( for F3110 / F3115 only) IR cut filter mode: There are 4 modes for IR cut filter to switch Auto, Night Mode, Day Mode, Schedule to make IR cut filter work based on different conditions. ... -
Page 19: Live View
Audio Channel Full duplex: Select it for simultaneous communication in both direction between the connected administrator and IP CAM. It means both parties can speak and be heard at the same time. Half duplex: Select it for communication in both directions, but only one direction at a time. It cannot receive signal until the transmission has been done. -
Page 20: Camera Setting
Audio Please refer to p.17~18 Camera Setting Image Setting Image Enhancement Brightness: The image brightness can be adjusted in the range 0-100, the a higher value produces a brighter image. Saturation: Adjust the saturation in the range 0-100, the higher value gets more colorful image. ... -
Page 21: Ptz Control
Nevertheless, the low light behavior can be scheduled up by working day, weekend, and night mode as user’s preference. Backlight Compensation It makes the object clearer display when the image background is too bright or the object is too dark. Wide Dynamic Range Enable Wide Dynamic Range auto in different level to improve the exposure when both bright and dark areas simultaneously in the field of view of the camera. -
Page 22: Playback
PTZ Setting You may set the speed of digital pan/tilt/zoom, and also speed for preset/patrol. The range goes 1-100(slow to fast). View Area Control Panel This can be set up the selected view area in every profile. Besides the viewing window there is a PTZ control panel to go to the direction you want. -
Page 23: Network Storage
Click it to upload the recorded file in the PC Click it to stop the current video Click it to pause the playing video Click it to slow down the playing speed Click it to speed up the playing speed It displays the current playing video length It displays the whole video length It displays the current video speed... -
Page 24: Event
Event Event Server Event Server Click “ Add＂ to create a event server then the setting page pops up. Name it, select your network type put on the storage location. This is optional to create the password for certain group to use it. Then click the “ Test＂ button to see if it works, it will show the information on the pop-up window to see your setting if has been made successfully. - Page 25 Trigger You may activate the following trigger types as you wish depends on various conditions: Motion Detection: Click it on for using Motion Detection function as a sensor. You must configure motion detection function before taking this as the trigger. Set minimum time interval between 2 triggers, and choose the desired detection area.
-
Page 26: Motion Detection
Action There are multiple choices for action taking which is optional for user to select all of them or part of them: Send Image、Send Notification、Activate Digital Output or Night Mode. Send Image: You may set up where the image sent to, options like event server and SD card. You must configure it first, please refer to Event Server. -
Page 27: Schedule
Schedule The schedule is made for Event List to set the recording period. There are already 3 modes(Working Day、 Weekend and Night Mode) has been set for user, there are 7 more modes are available to set manually. System Maintenance Restart Restart button is for reboot the IP Camera digitally, you may reboot the camera manually or automatically. -
Page 28: Network Basic
IP Address Filter Once enabled it, the listed IP address are allowed or denied access to the product. Add the IP Address that you’d like to allow or deny and select allow or deny from the list and save it. HTTPS HTTPS is a URL scheme used to indicate a secure HTTP connection. - Page 29 RTSP Configuration Configure the RTSP by profile, then enable or disable the authentication. Multicast Status: This can be enabled or disabled the multicast. Access Name: This will be shown and changed along with the profile you select. Multicast Address: Specify the multicast server address. Video / Audio Port: Specify the transmission port number of the video data, from 1124 to 65534.
-
Page 30: Digital I/O
DDNS DDNS is a system which allows the domain name data held in a name server to be updated in real time. The most common use for DDNS is allowing an internet domain name to be assigned to a computer with a varying / dynamic IP Address. -
Page 31: Electromagnetic Compatibility (Emc)
Electromagnetic Compatibility (EMC) FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
