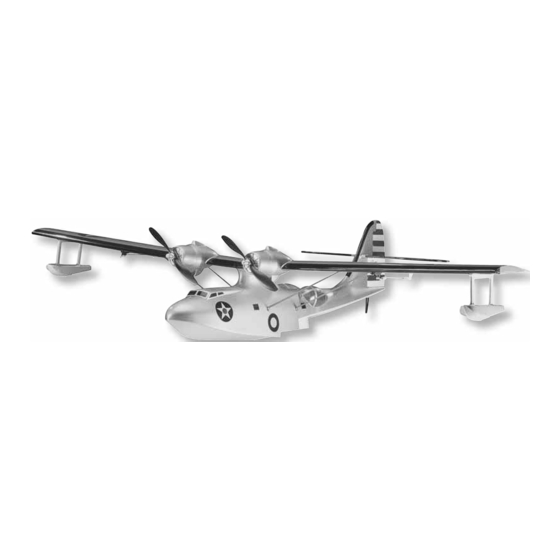

GREAT PLANES PBY Catalin Instruction Manual

Wingspan: 53.5 in [1360mm]
2
Wing Area: 395 sq in [25.5dm ]
Weight: 3-3.25 lb [1360-1470g]
Wing Loading: 18-19 oz/sq ft [55-58 g/dm
Length: 34.25 in [870mm]
Radio: 4-Channel with Two Micro-Mini and Two Micro Servos
™
Motor: Two 28-30-950 RimFire
Two ElectriFly SS-25 Speed Controls
®
Great Planes Model Manufacturing Co. guarantees this kit to
be free from defects in both material and workmanship at the date
of purchase. This warranty does not cover any component parts
damaged by use or modifi cation. In no case shall Great Planes'
liability exceed the original cost of the purchased kit. Further,
Great Planes reserves the right to change or modify this warranty
without notice.
In that Great Planes has no control over the fi nal assembly or
material used for fi nal assembly, no liability shall be assumed nor
accepted for any damage resulting from the use by the user of
the fi nal user-assembled product. By the act of using the user-
assembled product, the user accepts all resulting liability.
If the buyer is not prepared to accept the liability associated
with the use of this product, the buyer is advised to return
READ THROUGH THIS MANUAL BEFORE STARTING CONSTRUCTION. IT CONTAINS IMPORTANT
INSTRUCTIONS AND WARNINGS CONCERNING THE ASSEMBLY AND USE OF THIS MODEL.
Entire Contents © Copyright 2007

INSTRUCTION MANUAL

2 ]
Brushless Motors and
WARRANTY
this kit immediately in new and unused condition to the place
of purchase.
To make a warranty claim send the defective part or item to Hobby
Services at the address below:
3002 N. Apollo Dr., Suite 1
Champaign, IL 61822 USA
Include a letter stating your name, return shipping address, as
much contact information as possible (daytime telephone number,
fax number, e-mail address), a detailed description of the problem
and a photocopy of the purchase receipt. Upon receipt of the
package, the problem will be evaluated as quickly as possible.
airsupport@greatplanes.com
Hobby Services
Champaign, Illinois
(217) 398-8970, Ext 5
GPMZ1154 for GPMA1154 V1.1
™
