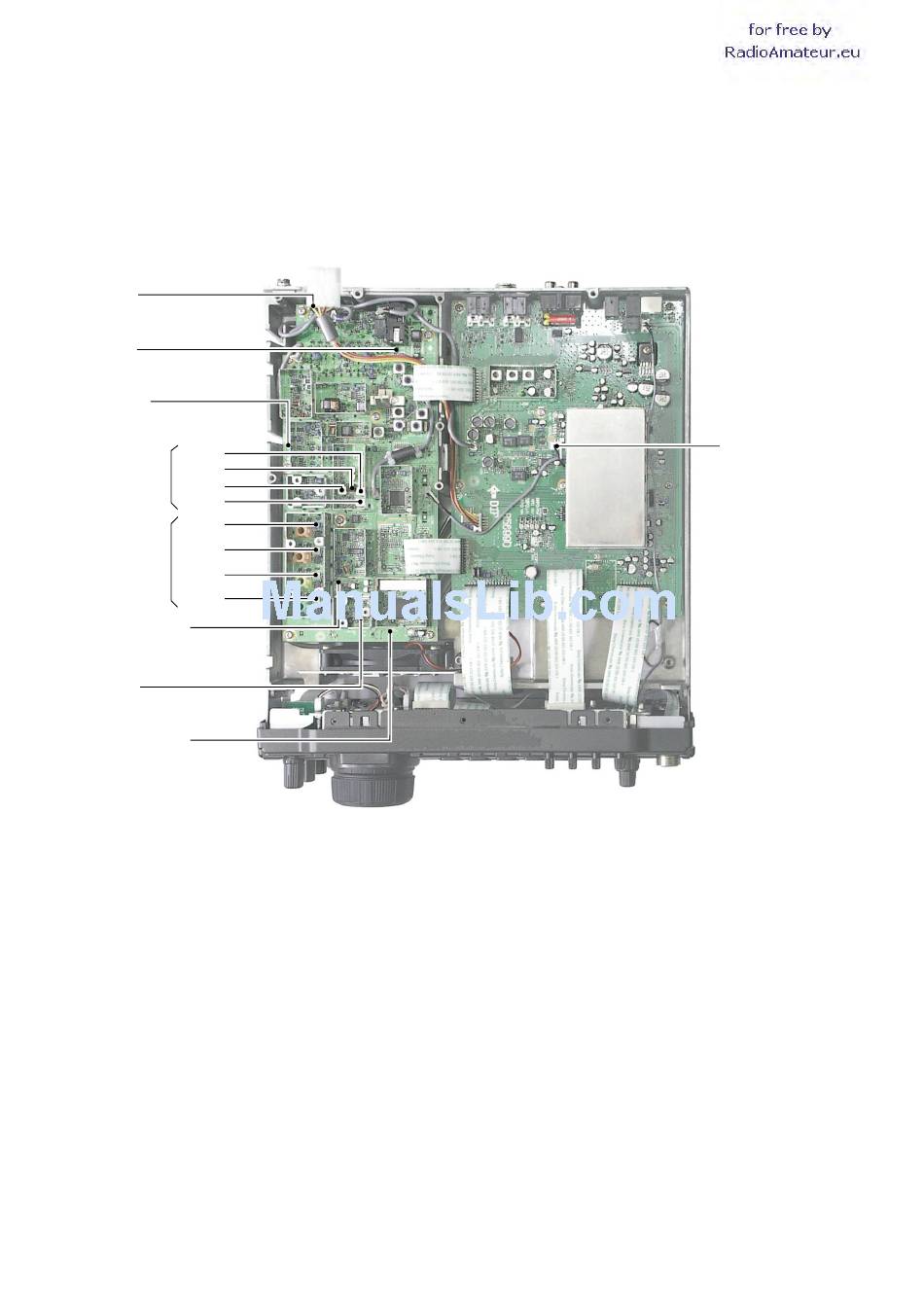

R1032
Reference frequency
adjustment
P1901
Reference frequency
check point
CP1500
1st LO outoput level
check point
L1904
Reference
L1901
frequency
L1902
adjustment
L1903
C1268
VCO lock
C1248
voltage
C1228
adjustment
C1208
CP1801 (LV2)
VCO lock voltage
check point
C1303
LPL lock voltage
adjustment
CP1101 (LV1)
LPL lock voltage
check point
5 - 3
CP1601
3rd LO output level
check point
