RS90M

Order Job name/Part name

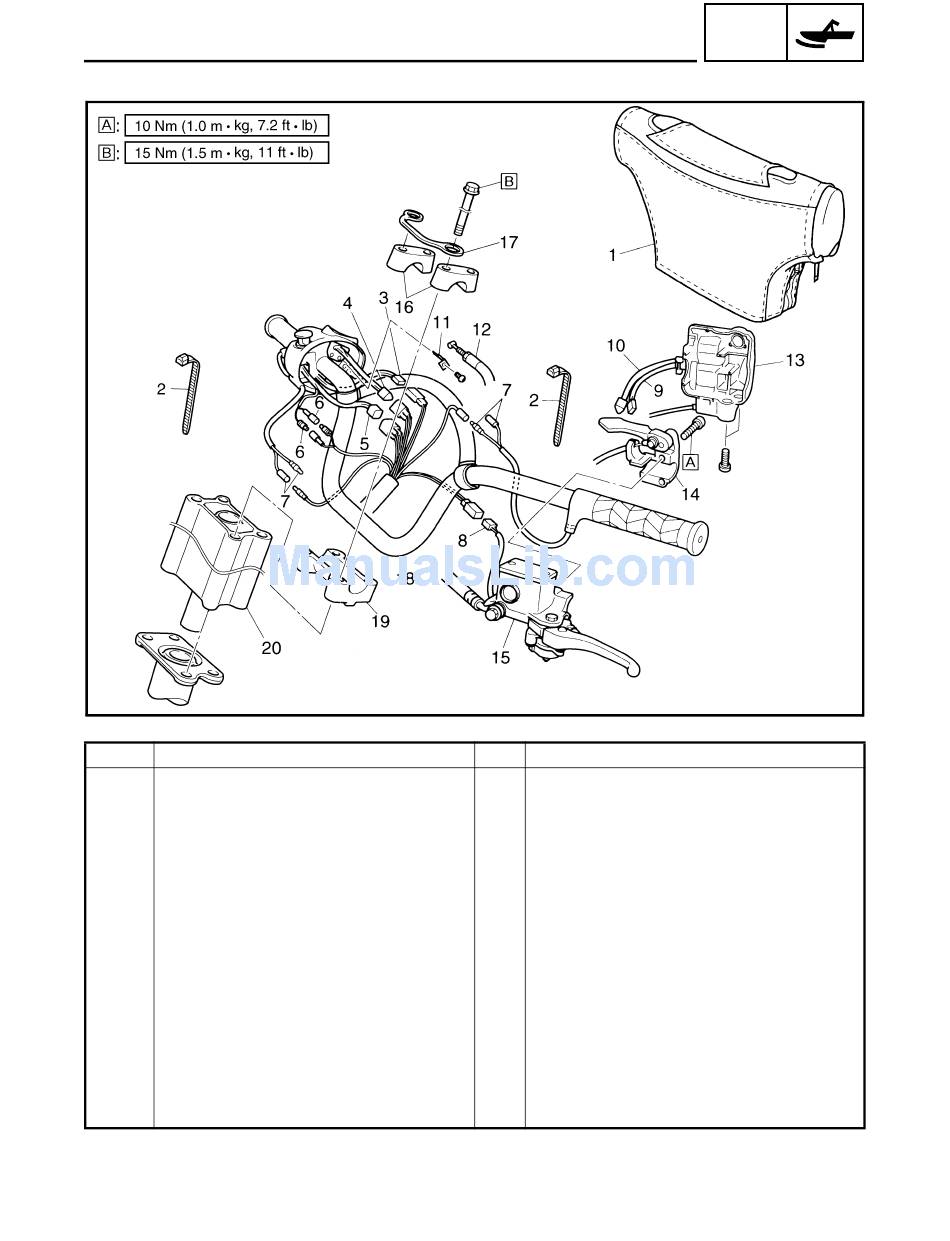

Handlebar removal
1 Handlebar cover
2 Plastic band
3 Thumb warmer lead coupler
4 Thumb warmer adjustment switch lead
coupler
5 Engine stop switch coupler
6 Throttle switch coupler
7 Grip warmer lead connector
8 Brake switch coupler
9 Headlight beam switch coupler
10 Grip warmer switch lead coupler
11 Throttle cable holder
12 Throttle cable
13 Left handlebar switch
14 Brake lever holder
STEERING
Q'ty
Remove the parts in the order listed below.
1
2
1 Disconnect.
1 Disconnect.
1 Disconnect.
2 Disconnect.
4 Disconnect.
1 Disconnect.
1 Disconnect.
1 Disconnect.
1
1
1
1
3-3
CHAS
Remarks
