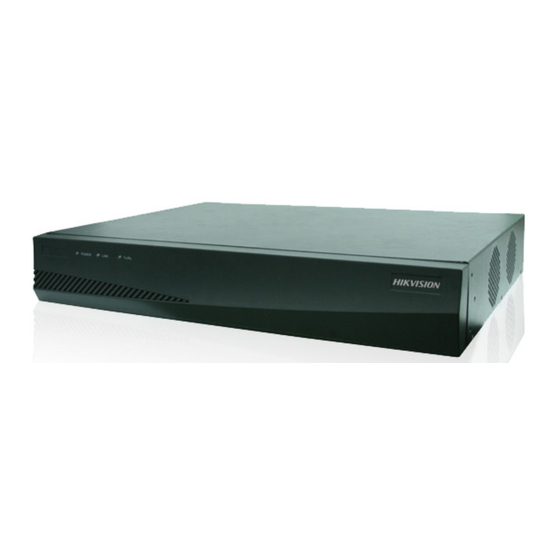

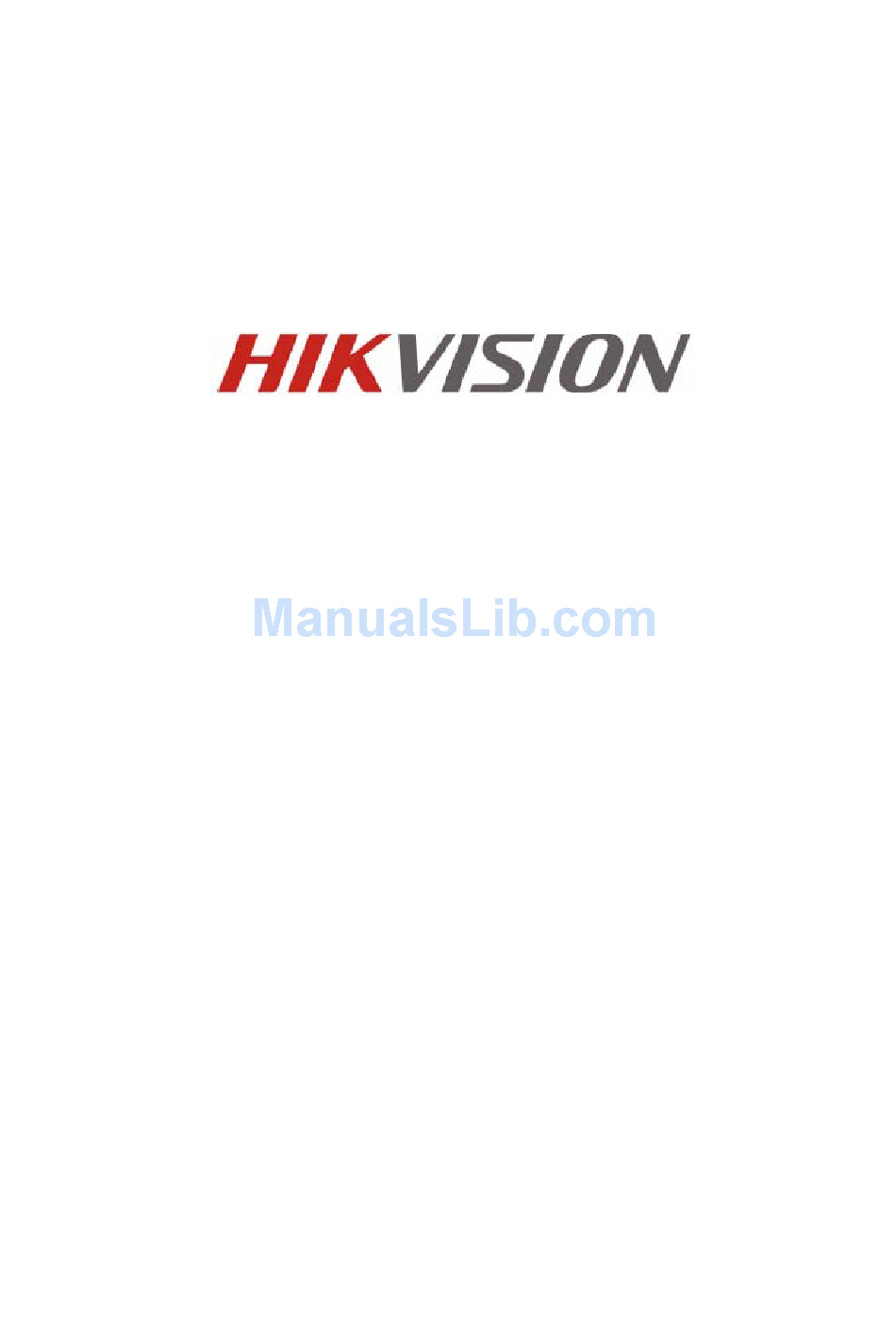

- Page 1 DS-6401HDI Series Decoder Server USER MANUAL Version 1.0...
- Page 2 The content of this manual is furnished for informational use only, is subject to change without notice, and should not be construed as a commitment by Hikvision Digital Technology Co., Ltd. (Hikvision). Hikvision assumes no responsibility or liability for any errors or inaccuracies that may appear in the book.
- Page 3 Preventive and Cautionary Tips Before connecting and operating your DVS, please be advised of the following tips: • Ensure unit is installed in a well-ventilated, dust-free environment. • Keep all liquids away from the DVS. • Please check the power supply to avoid the damage caused by voltage mismatch. •...
-
Page 4: Table Of Contents
TABLE OF CONTENTS C H A P T E R 1 ........................5 Introduction ..........................5 1.1 Description ........................6 1.2 Features ........................... 6 C H A P T E R 2 ........................9 Structure ............................ 9 2.1 Front Panel ........................10 2.2 Rear Panel ........................ - Page 5 Appendix A Specifications ....................32 Appendix B FAQ ......................33 Appendix C Glossary ....................... 34...
-
Page 6: Chapter 1
C H A P T E R 1 Introduction... -
Page 7: Description
Decoding at up to 1080P resolution; G.722, G.711A and G.711U video compression methods. Decoding Resources DS-6401HDI is capable of decoding 1-ch video stream at 1080P resolution, 2-ch video at 720P resolution and 4-ch video at 4CIF resolution. Decoding Mode Multiple transmission methods: support TCP, UDP, RTP over TCP, RTP over UDP. - Page 8 Passive decoding: the decoder passively receives stream sources, and then proceeds decoding and transmission. Passive decoding supports TCP and UDP transmission modes. Network One 10/100/1000Mbps self-adaptive UTP Ethernet interface Support TCP/IP, UDP and RTP network protocols. Get allocated IP address, sub mask and gateway via DHCP server. ...
- Page 9 PTZ Control Through SDK transparent channel, the PTZ of DVR or DVS can be remotely controlled. Voice Talk The decoder is capable of realizing voice talk with the remote client. When the client has submitted application, the voice talk between the client and decoder is created.
-
Page 10: Chapter 2
C H A P T E R 2 Structure... -
Page 11: Front Panel
2.1 Front Panel DS-6401HDI Front Panel LED Indicator & Connections Interface Power LED indicator LINK Network connection LED indicator RX/TX Data transmitting/receiving status LED indicator RESET Reset to the factory default settings VGA decoding output DVI decoding output HDMI HDMI decoding output... -
Page 12: Alarm Connections
12VDC power input Grounding 2.3 Alarm Connections 2.3.1 Alarm Input Connections DS-6401HDI supports the relay input as the alarm input mode. For the alarm input signal not in open/close open/close relay signal mode, please follow the connections shown as below:... -
Page 13: Signal Line Connections
By factory default, both of two jumpers are set to be connected. 2.3.3 Signal Line Connections DS-6401HDI Decoder provides the green terminal plug for connecting signal lines. Follow the instructions shown below: 1. Disconnect the green terminal plug from the terminal socket on the device;... -
Page 14: Chapter 3
C H A P T E R 3 Network Parameters Configuration... -
Page 15: Hyper Terminal Setup
Description: This chapter is about the network parameters configuration of Hikvision DS-6401HDI Decoder. The DS-6401HDI factory default user name is admin, and password is 12345. The DS-6401HDI factory default IP address is 192.0.0.64. The network parameters need to be setup before the decoding channel configuration. The network parameters are used to connect with the software which is applied to set the decoding channels. - Page 16 Step4: Serial port setup. Set port parameters in “COM1 Properties” dialogue box as the following figure: The parameters should be: Bits per second: 115200 Data bits: 8 Parity: None Stop bits: 1 Flow control: None Press “Apply” and “OK” after the setup. Press “Enter” under Hyper Terminal interface. When “[root@dvrdvs/]#” appears, the connection is established.
-
Page 17: Network Configuration By Hyper Terminal
Terminal interface will appear as figure below. Type “Enter”, and the prompt “[root@dvrdvs/]#” will appear which means connection between RS232 interface of PC and RS232 interface of DS-6401HDI is established successfully by Hyper Terminal. The following operation commands are to accomplish the parameters setup in... - Page 18 Commands Description: Commands Utilities helpm Console help command is used to print common commands, show as Figure 3.2. getIp Show the current IP address of decoder. Command format: getIp “Enter”. setIp Setup decoder IP address. Command format: setIp IP: mask, e.g. setIp 192..168.1.10:255.255.255.0 getGateway Show current decoder gateway address.
-
Page 19: Chapter 4
C H A P T E R 4 Decoder Configuration... -
Page 20: Decoder Configure Software
4.1 Decoder Configure Software Run the disk of iVMS4000 V2.0 software which is supplied by HIKVISION, and double click the icon to set up it in your PC. The following section has described the configuration of decoder through the software. Please refer to the user manual of iVMS4000 V2.0 for more details. -
Page 21: Add Decoder
4.2 Add Decoder Click “ ”, then click “ ” to enter the decoder settings interface. Right click the “Decoder list”, and select “Add decoder”, or click “ ”to add decoder. Input decoder name, IP, Port, Username, Password, and click ”OK” to finish adding decoder. -
Page 22: Decoder Configuration
The 6401HDI decoding source is described as below: Decode type Instruction 4-channel decoding 4CIF 4-channel decoding 720P 2-channel decoding 1080P 1-channel decoding After added successfully, the decoder channels will be displayed in the decoder list. 6401HDI Series decoder supports VGA, so it displays the BNC and VGA outputs differently. - Page 23 Export/import config file Right click a decoder, user can select “Export device config file” and save the device configuration file in “C:\SaveRemoteCfgFile” folder by default. If user has saved the config file before, select “Import config file to device” to import the existed configuration to the decoder. Working status of decoder Select “Working status of decoder”...
-
Page 24: Tv Wall Settings
4.4 TV Wall Settings Enable/Disable decode output After having added the decoder, the decoding channel is not in use by default. Drag the channel to the blank interface on the right to enable this channel. When a channel is enabled, user may click “... - Page 25 If the output name is set to VGA, HDMI or DVI output, then user can select the resolution from the drop-down menu. Window division configuration By right clicking the decoder channel, user can select the screen division mode. Currently, all of HDMI, DVI, BNC and VGA outputs can be selected to 1 or 4-division display modes.
-
Page 26: Decoder Control
Refer to the following table for the description of layout toolbar: Button Description Button Description Align left Flush right Align top Flush bottom Vertical center Horizontal center Equal horizontal interval Equal vertical interval Equal width Equal height Equal size 4.5 Decoder Control After having finished the decoder addition and TV wall configuration, click the icon to enter the decoder control interface:... -
Page 27: Video Decoding
configuration. Click to hide the display of decoded video and status, or click to resume display. Description of the functional buttons on the interface: Button Description Button Description Start playing the decoded video Stop playing the decoded video Start cycle decoding Stop cycle decoding Start/Stop the live view of local Capture... - Page 28 Stop decoding Right click the decoding channel, and select “Stop decoding” or click “ ” to stop decoding on the current decoding window. Start decoding When the decoding is disabled, user can right click the decoding window or select “Start decoding”...
-
Page 29: Cycle Decoding
When in live view state, user can click to capture the current picture for local storage. Click the icon start recording and then the state of the icon will be changed to ; click it again to stop recording. 4.5.2 Cycle Decoding Drag a device or group node to the designated decoding window, and then all channels under this device or group will be decoded in cycle. - Page 30 Pause cycle decoding Right click the current cycle decoding window, and select the “Pause cycle decoding” or click “ ” to pause the cycle decoding. Resume cycle decoding When the cycle decoding is in paused status, user may right click on the decoding window and select “Resume cycle decoding”...
-
Page 31: Ptz Control
4.5.3 PTZ Control If the decoder is connected with PTZ, user can operate the PTZ control through the client software. There are 8 directional keys to control PTZ movement, and the sliding bar is used to change PTZ speed, which is adjustable from 1 to 7, and the default speed is 4. -
Page 32: Chapter 5
C H A P T E R 5 Appendix... -
Page 33: Appendix A Specifications
Appendix A Specifications Model DS-6401HDI 1-ch BNC output, resolution: CVBS Output PAL: 704×576, NTSC: 704×480 1-ch VGA output, resolution: VGA Output 1280×720@60HZ, 1280×1024@60HZ, 1024×768@60HZ 1-ch HDMI output, resolution: 1600×1200@60HZ, 1080P(1920×1080P)@60HZ, HDMI Output 1080I(1920×1080I)@60HZ, 1080P(1920×1080P)@50HZ, Audio/Video 1080I(1920×1080I)@50HZ, 1280×720@60HZ, 1280×1024@60HZ, 1024×768@60HZ Output 1-ch DVI output, resolution: 1600×1200@60HZ, 1080P(1920×1080P)@60HZ,... -
Page 34: Appendix B Faq
Appendix B FAQ Why cannot ping the decoder? Please refer to Chapter 3 to configure the decoder IP address being in the same segment as your PC, and check the cable and switch. Why the transparent channel has been set, but the encoder still cannot receive data? 1: Check if RS232 has been set as transparent channel first. -
Page 35: Appendix C Glossary
Appendix C Glossary Dual Stream Dual stream refers to that one channel of video stream can be divided into double independent output streams through the video encoder. Shown as below: Main Stream Video Stream Video Encoder Sub Stream The resolution, frame rate, bitrate and other parameters of the output stream are independently programmable. The two streams generated may meet different application demands, e.g., one stream is used for HDD storage, and the other for transmission via Internet.
