Page 1: User Manual
User Manual of Embedded Net DVS User Manual DS-6104HCI Net Video Server １ Page Total... -
Page 2: Table Of Contents
TO ESTABLISH CONNECTION 5.2 C E ....................26 LIENT ACCESS WHEN USING CHAPTER 6 FREQUENT ASK QUESTIONS ..................28 APPENDIX A DS-6104HCI SPECIFICATIONS..................29 APPENDIX B GOOD LIST ........................... 30 APPENDIX C CUSTOMER INFORMATION CARD ................31 ２ Page Total... - Page 3 User Manual of Embedded Net DVS Thanks for purchasing the products of Hikvision. If you have any requests or questions, please contact us immediately. This manual is applicable to DS-6104HCI Net Video Server. This manual may contain some technically incorrect places or printing errors.
-
Page 4: Chapter 1 Introduction
DaVinci processor that is completely independent of PC platform, and efficiently improves system performance. Firmware is burned into the FLASH, making the system more steady and reliable. DS-6104HCI net video server has the function of compressing the video signal and audio signal simultaneously into H.264 compression standard; transmitting the compression stream through network;... -
Page 5: Common Application
User Manual of Embedded Net DVS 1.2 Common application Network digital surveillance, such as ATM machine, factory and the bank etc; Remote monitoring service for prison, nursery and school; Intelligent gate system (dynamic record the people in and out); Intelligent building and community; Uncared-for system of electric power station or telecom base station;... -
Page 6: Chapter 2 Installation
User Manual of Embedded Net DVS Chapter 2 Installation 2.1 Hardware installation 2.1.1 Installation steps Open packing case, and check the integrity; Take out things needed during installation; Connect cables needed (video signal input cable, audio signal input cable, RS485 cable and cable for LAN);... -
Page 7: The Pin Definition Of Physics Interfaces

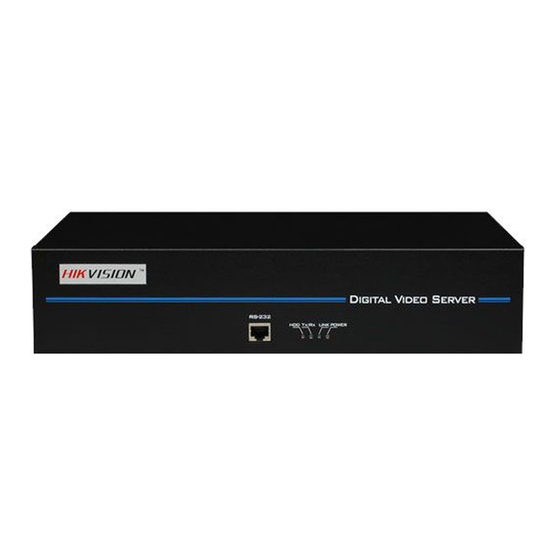

User Manual of Embedded Net DVS Interface Instruction (From left to right in turn) Tx/Rx indicator lamp; Link indicator lamp; Power supply indicator lamp; Back panel: Interface Instruction (From left to Right in return): Power jack is connected with 12V direct current through voltage stabilizer; Please use the stabilizer power supply correctly;... - Page 8 User Manual of Embedded Net DVS (1) When the RS232 interface of the DVS connects with the DTE equipment, one end of the cable is the 8-pin RJ45 connector (to DVS) and the other of the cable is the DB25 female connector (to DTE).
- Page 9 User Manual of Embedded Net DVS (3) If you don’t want to use 25-pin to 9-pin convertor to connect DVS and DTE through RS232 interface, you must use RJ45-DB9 cable. Its internal connection description is: (4) When the RS232 interface of the DVS connects with the DCE (such as MODEM), one end of the cable is the 8-pin RJ45 connector and the other is the DB25 male connector.
-
Page 10: Pin Definition Of Rs485 Serial Interface
User Manual of Embedded Net DVS 2.3.2 PIN definition of RS485 serial interface 2.3.3 PIN definition of Ethernet interface (1) PIN definition of the direct network cable connecting DVS and HUB: (2) PIN definition of the cross network cable connecting DVS and host PC: - 10 -... -
Page 11: Chapter 3 Video Server Setup
User Manual of Embedded Net DVS Chapter 3 Video Server Setup There are three kinds of methods to configure the parameters of video server. 1. Through Hyper Terminal (connect DVS with the PC through RE-232 serial ports) 2. Through TELNET (connect DVS with PC through network) 3. - Page 12 User Manual of Embedded Net DVS Fig. 3.2 Select communication port Step 3”: to select the communication port. Select “com1” communication port in Fig3.2, press “OK”, the dialogue box as Fig. 3.3 will appear. Fig. 3.3 Serial ports parameter setup Step 4: Serial port parameters setup.
- Page 13 User Manual of Embedded Net DVS Fig. 3.4 Hyper Terminal Interface Step 5: To close the window, the Fig. 3.5 will appear. Select “Yes” and Fig. 3.6 will appear: Fig. 3.5 Disconnect Fig. 3.6 Save Hyper Terminal session Step 6: Save the Hyper Terminal session for using next time. After saving, it will new establish a “Hyper Terminal”...
-
Page 14: Shell Commands Under Hyper Terminal
User Manual of Embedded Net DVS 3.1.2 Shell Commands under Hyper Terminal Please use the DTE cable and the DB9/DB25 convertor to connect PC with DVS RS-232 port. Step 1: Enter into the Hyper Terminal. Click “Start” “Programs” “Accessories” “Communications” “Hyper Terminal” “aa.ht”, the Hyper Terminal interface in Fig. 3.4 will appear. - Page 15 User Manual of Embedded Net DVS Fig. 3.8 Check command The following is the introduction of getIp, setIp commands. getIp Function: get the fixed IP, subnet mask, gateway, command port, IP address of PPPoE dialup (the IP address of PPPoE will be 0.0.0.0 if there is no dialup or dialup is not successful). Parameter: none.
- Page 16 User Manual of Embedded Net DVS Fig. 3.9 Get parameters of IP, PPPoE setIp Function: set the IP, subnet mask and gateway of the device Parameter: IP address, subnet mask, gateway Grammar format: setIp IP: mask Explanation: Please pay attention whether the inputting letters are capital or low case. And separate the parameters by colons.
-
Page 17: Video Server Hdd Format
Please use remote client software to remote setup video server local recording parameters. 3.4 PTZ control Step1: Connect DS-6104HCI RS-485 interface with PTZ. Please refer to RS-485 pin definition. DVS just uses Pin8 (TX+) and Pin7 (TX-) to send PTZ control command. -
Page 18: Remote Setup Video Server Parameters
User Manual of Embedded Net DVS 3.5 Remote setup video server parameters Before the configuration, please make sure that the PC and the video server has been established the network connection, you can confirm using PING command. Please refer to the user manual of DVRDVS client software for detail information. -
Page 19: Chapter 4 Upgrade Firmware
User Manual of Embedded Net DVS Chapter 4 Upgrade Firmware There are two methods to upgrade the DVS firmware. One is using shell commands to ask DVS to download firmware from TFTP server. The other is using PC client software. 4.1 Use Shell Command and TFTP Server Step 1: Before the update start you should do the follow steps:... - Page 20 User Manual of Embedded Net DVS Fig 4.3 Step 2: Then reboot the device and press any button in the pc keyboard again and again until the HIK # come out in the Hyper Terminal interface, show as Fig 4.4. Then input the “print” to check if the IP of the server and device is correct, also both of them should be in the same LAN.
- Page 21 User Manual of Embedded Net DVS Fig 4.5 Step 3: Input commend “save” and press enter button. Show as Fig.4.5. Step 4: Input the commend “update” and press enter button, then space button. After that the update will start. Show as Fig.4.6 Fig.
-
Page 22: Use Client Software To Upgrade Firmware
User Manual of Embedded Net DVS Step 5: After the update finished, please input the command “reset” and press the enter button. The device will reset. Show as Fig.4.7. Fig 4.7 4.2 Use Client Software to upgrade firmware In the system setup dialog of DVRDVS client software (refer to client software user manual), there is a button named “Other”: - 22 -... - Page 23 User Manual of Embedded Net DVS Fig.4.8 Remote upgrading Click “Explore” button and select the firmware file. Fig.4.9 Then click “Upgrade” button, to complete the upgrading process of the video server firmware. - 23 -...
- Page 24 User Manual of Embedded Net DVS Fig.4.10 - 24 -...
-
Page 25: Chapter 5 Pppoe Dialup Operation
User Manual of Embedded Net DVS Chapter 5 PPPoE Dialup Operation DS-6104HCI video server supports remote access through network, through browser, through PPPoE or PPP dialup. Before using this function, please make sure that the software you used in your device support such functions or not. -
Page 26: Client Access Dvs When Using Pppoe
User Manual of Embedded Net DVS Fig.5.2 [Explanation] please make sure that ADSL Modem is installed. If it is the first time to set PPPoE parameters, it needs to reboot video server to establish the connection. 5.2 Client access DVS when using PPPoE There are two methods: One is to access using the current WAN IP address of the video server. - Page 27 User Manual of Embedded Net DVS the network connection with the video server to get the video images directly. Fig.5.3 Here the fixed WAN IP address of PC is 220.184.114.48. We call it as DNS IP. In that the PC, one demo analysis server software named IP Server is run.
-
Page 28: Chapter 6 Frequent Ask Questions
User Manual of Embedded Net DVS Chapter 6 Frequent ask questions 1, Failure to control PTZ It is possible that the camera and equipment are not connected through RS485 port, or the wrong configuration of the decoder. 2,certain individual channel picture is un-normal Please check whether the video cable is well connected with the camera and the Embedded DVS 3,Possible reasons which can cause the failure of upgrading... -
Page 29: Appendix Ads-6104Hci Specifications
User Manual of Embedded Net DVS Appendix A DS-6104HCI Specifications Model DS-6104HCI Video compression H.264 Encode/Decode 4CIF/DCIF/2CIF/CIF/QCIF resolution Video input BNC (1.0Vp-p, 75Ω), support PAL, NTSC Video input interface 4CIF/DCIF/2CIF: 4fps for 4-ch Frame rate (per CIF: 25(P)/30(N) fps channel) Stream type Video / Video&Audio... -
Page 30: Appendix Bgood List
User Manual of Embedded Net DVS Appendix B Good list One piece of DS- 6104HCI video server; A CD contains client application; One power supply voltage stabilizer A 220V power cable; A cable connecting RS232 with DTE; - 30 -... -
Page 31: Appendix Ccustomer Information Card
User Manual of Embedded Net DVS Appendix C Customer Information Card User’s Name Mr./Mrs. Company Name Post Address Postcode Phone Number E-mail Model Number of Product Serial Number of Product Purchase Date Distributor Suggestions: - 31 -...
