Summary of Contents for HIKVISION DS-IE6364-E/FA

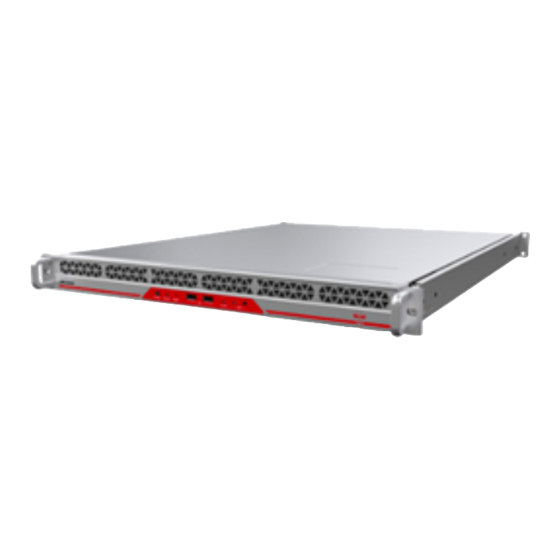

- Page 1 Face Recognition Server Quick Start Guide...
- Page 2 INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS.
- Page 3 Face Recognition Server Quick Start Guide Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
-
Page 4: Applicable Models
This manual is applicable to the models listed in the following table. Series Model DS-IE6308-E/FA DS-IE6316-E/FA Face Recognition Server DS-IE6332-E/FA DS-IE6364-E/FA Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Provides additional information to emphasize or supplement important points of the main text. -
Page 5: Safety Instructions
Face Recognition Server Quick Start Guide Safety Instructions Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user. In the use of the product, you must be in strict compliance with the electrical safety regulations of the nation and region. -
Page 6: Chapter 1 Panel Description
Face Recognition Server Quick Start Guide Chapter 1 Panel Description 1.1 Front Panel Figure 1-1 Front Panel Table 1-1 Panel Description No. Name Function Description Press it to power on device. The button is blue when device is on. Power button ... -
Page 7: Rear Panel
Face Recognition Server Quick Start Guide 1.2 Rear Panel Figure 1-2 Rear Panel Table 1-2 Panel Description No. Name Description LAN 1/LAN 2 2 × 10M/10M/1000M data network interface. LAN A/LAN B 2 × 10M/100M/1000M management network interface. VGA video output interface USB interface Four USB 3.0 interfaces for connecting USB devices. -
Page 8: Chapter 2 Installation
Face Recognition Server Quick Start Guide Chapter 2 Installation 2.1 Installation Instruction Before installing the server, please be advised of following tips: Check the delivered package. If any object is damaged or lacked, please contact the dealer. Ensure the server is installed in a well-ventilated, dust-free environment. ... - Page 9 Face Recognition Server Quick Start Guide Rack requirement: The distance between the front column and rear column ranges from 660 to 850 mm. 2.3.1 Inner Rail Installation Purpose: Follow the steps to install the rear part of inner rails in the server. The front part has been installed when delivered.
- Page 10 Face Recognition Server Quick Start Guide Step 3 Use M5 × 10 screw to secure the rear end of outer rails to the rack. Step 4 Pull out the rear of the outer rail, adjusting the length until it fits the rear column. Step 5 Hang the hooks of the rear portion of the outer rail onto the slots on the rear of the rack.
- Page 11 Face Recognition Server Quick Start Guide If you need to pull out the server from the rack, push the left locking tab in inner rail upwards and then push the left one downwards. Figure 2-3 Installing Server into Rack 0304091060928...
- Page 12 Face Recognition Server Quick Start Guide UD07938B...
